APC SRT5000 XLI Jeddah

Reviews

APC SRT5000 XLI Riyadh

The APC SRT5000 XLI Riyadh is an ideal solution at protecting file servers, minicomputers, network switches, hubs, point of sale systems & ATMs from losing power as they offer digital line interactive sinewave technology.

Category:
Ask for Quote & Get Low Price

Description

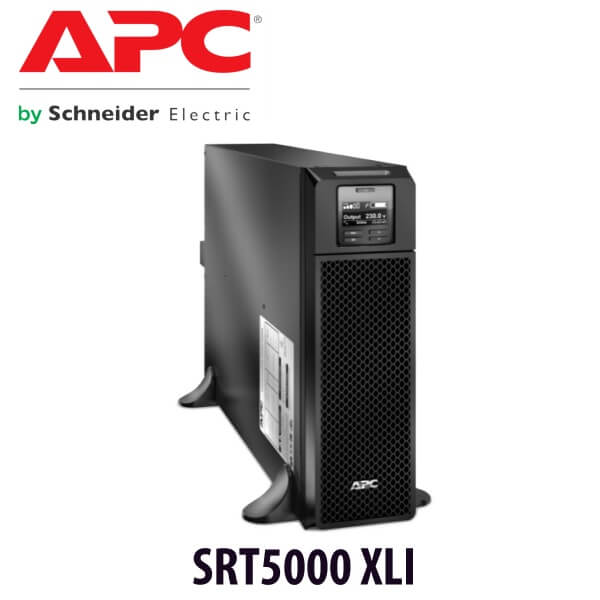

APC SRT5000 XLI Smart UPS Jeddah

The APC SRT5000 XLI Jeddah is a 5000VA/4500W double conversion On-line pure sine wave 3U rackmount UPS that comes embedded with NMC for additional SmartSlot for connectivity. It has an external battery compatible for more runtime (up to 10) and offers graceful unattended shutdown of critical IT equipment. Connect to EcoStruxure IT or third-party centralized management platforms.

The APC SRT5000 XLI Jeddah is an ideal solution at protecting file servers, minicomputers, network switches, hubs, point of sale systems & ATMs from losing power as they offer digital line interactive sinewave technology & also feature a LCD display giving a clear status of the UPS while also giving a hot-swap battery option & various connectivity options.

The APC SRT5000 XLI Jeddah is your companion when it comes to protecting your servers, storage and networks hardware. With its 1980W worth of power it is trusted to protect critical data and equipment from power problems.

Features :

  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.

Technical Specifications

Output

Max Configurable Power (Watts)

4.5kWatts / 5.0kVA

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

100 – 275 Adjustable (half load)V

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

1.5hour(s)

Nominal Battery Voltage

192 V

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

560 Watts

Extendable Run Time

1

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

480Joules

Physical

Maximum Height

130MM, 13.0CM

Maximum Width

432MM, 43.2CM

Maximum Depth

719MM, 71.94CM

Net Weight

54.43KG

Shipping weight

66.86KG

Shipping Height

330MM, 33.0CM

Shipping Width

610MM, 61.0CM

Shipping Depth

960MM, 96.0CM

Color

Black

Units per Pallet

6.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

931.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant
