Description

Avaya J100 Expansion module Jeddah

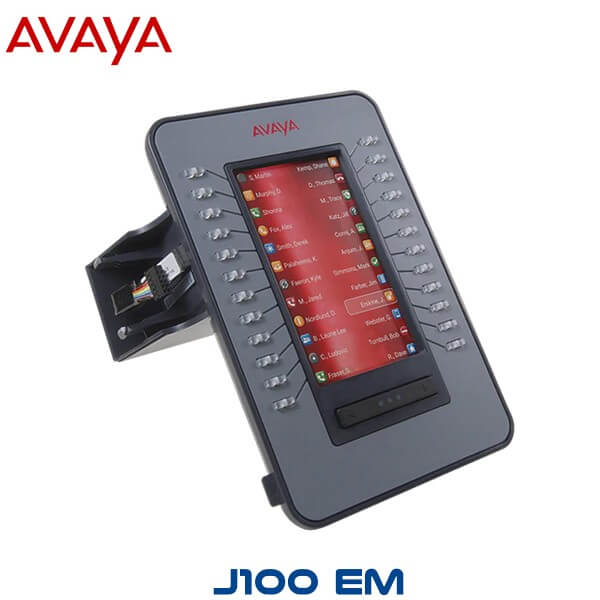

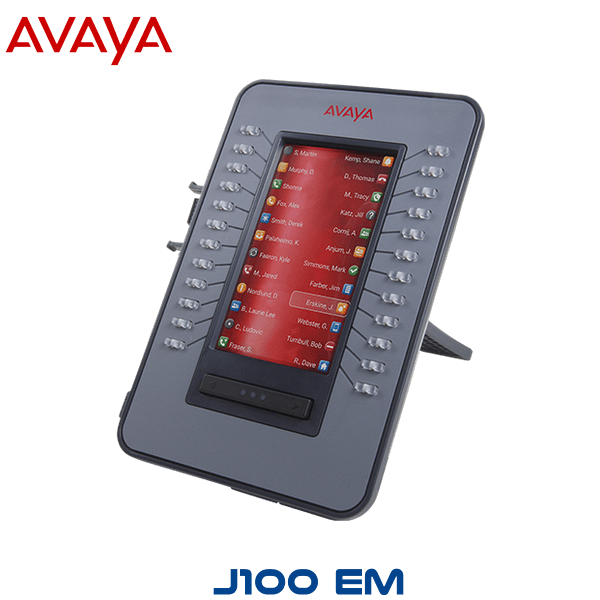

The Avaya J100 Expansion Module extends the number of call appearances and feature buttons on the Avaya IP Phone J169 & Avaya IP Phone J179. Each expansion module provides 24 additional buttons for incoming/outgoing calls, for features such as autodial, for dialing contacts, or for other applications.

Avaya J100 EM Jeddah Specifications :

• 4.3 inches, 272 x 480-pixel colour display that reverts to grayscale when connected to J169 IP Phone.
• The Avaya IP Phone J169 & Avaya IP Phone J179 support up to 3 button modules, and each button module can take both Stand and Wall mount positions together with the phone.
• The J100 Expansion Module provides access to up to 24 buttons and lamps with ability to display 3 pages when a single expansion module is used.
• Each feature/line button has a red/green indicator.
• Pre-configured background or screensavers are available to match the base phone.
• Power is supplied by base J169 or J179 (PoE class 2). If 3 expansion modules are attached to J179, then the external 5-volt power supply is required.
• Supported on J169/J179 with SIP software
