Description

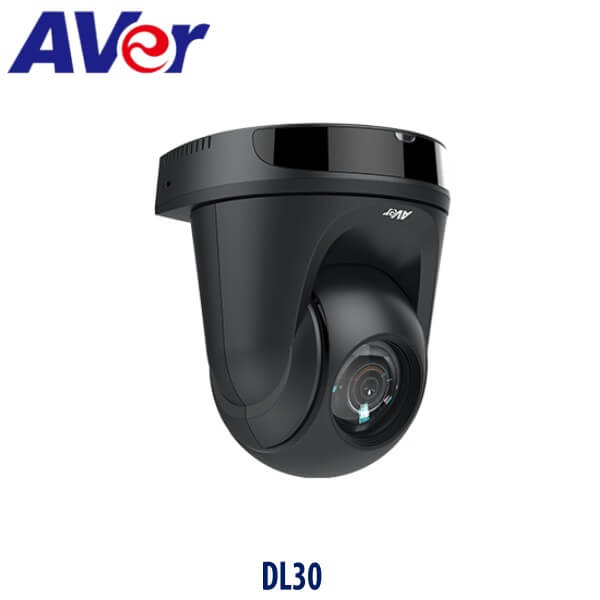

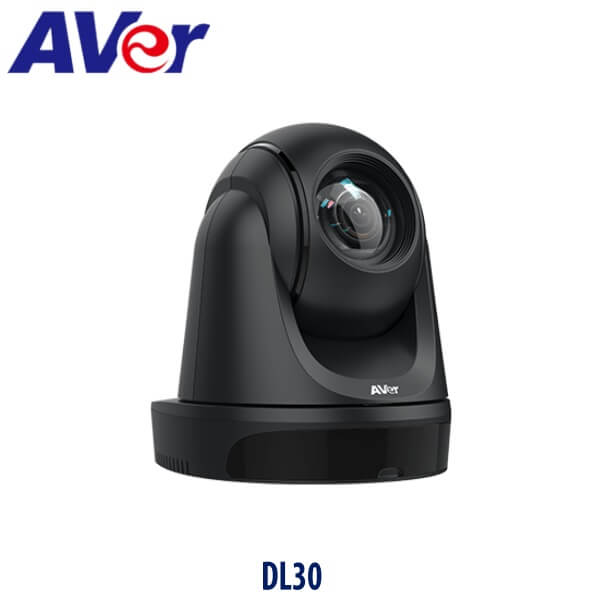

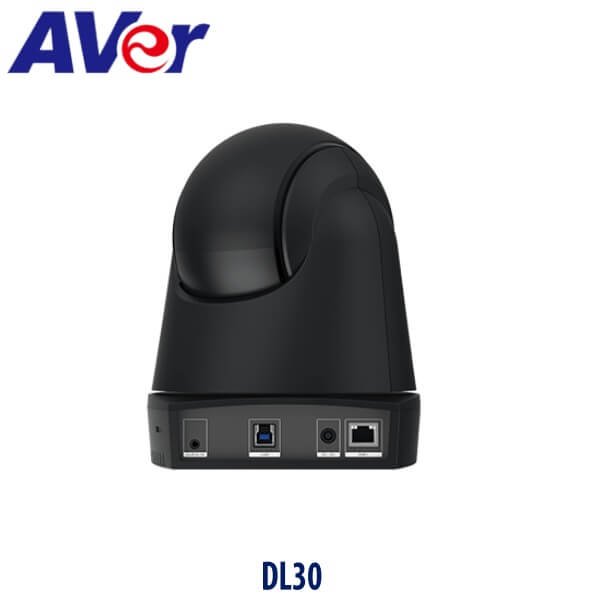

Aver DL30 Auto Tracking Camera Jeddah

The Aver DL30 Auto Tracking Camera Jeddah is equipped with a 12X optical zoom that operates smoothly without distorting the image. With the Aver DL30 Auto Tracking Camera running the show, teachers no longer need to suppress their creativity in hybrid environments. AVer’s renowned Human Detection automatically recognizes human forms in the classroom and dynamically tracks specific targets or areas via multiple tracking modes. The target doesn’t need to wear any devices or sensors to maintain tracking. Even far-site students can clearly follow the teacher’s every move.

Aver Dl30 Auto Tracking Camera Jeddah

Superb tracking and anti-interference functions allow teachers to move freely in the classroom. Instructors can adjust the tracking settings, stream, and record to make their teaching more substantive and vivid. To change the tracking target, users can simply click one button on the remote control. Accurate segmented tracking clearly shows content on the blackboard or screen, automatically switching the tracking area according to the teacher’s position. Content and the presenter are displayed at the same time so students can understand notes for key points at a glance. Simple controls and plug-and-play connectivity are the biggest advantages of the Aver DL30 Conference Auto Tracking Camera Jeddah, which is ideal for installing in every classroom. Students tuned in remotely and those present in the classroom can see each other and learn together like they would if they were in the same room. Enhance student engagement and interaction, and easily create distance learning and hybrid learning environments.

Aver Dl30 Auto Tracking Conference Camera Uae

Aver DL30 Auto Tracking Camera Specifications

Camera

• Image sensor
  • 1/2.8″ 1080p Low Lux CMOS
• Effective Picture Elements
  • 2 Megapixels

• Output Resolution
  • 1080p/60 (IP Streaming & USB)
• Minimum Illumination
  • 0.5 Lux (IRE50, F1.6, 30fps)

• S/N Ratio
  • > 50 dB
• Gain
  • Auto, Manual

• TV Line
  • 800 (Center), 600 (Corner)
• Shutter Speed
  • 1/4 to 1/10,000 sec (60 Hz)
  • 1/3 to 1/10,000 sec (50 Hz)

• Exposure Control
  • Auto, Manual, WDR
• WDR
  • Yes

• White Balance
  • Auto, Manual
• Optical Zoom
  • 12X

• Digital Zoom
  • 2X
• Viewing Angles
  • DFOV : 84.1° (Wide) to 7.8° (Tele)
  • HFOV : 76.5° (Wide) to 6.8° (Tele)
  • VFOV : 47.3° (Wide) to 3.8° (Tele)

• Focal length
  • f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Aperture (Iris)
  • F = 1.6 (Wide) to 2.8 (Tele)

• Minimum Working Distance
  • 0.3 m (Wide), 1.5 m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°, Tilt : ±90°

• Pan / Tilt Speed (Manual)
  • Pan: 1° to 90°/sec
  • Tilt: 7.85° to 45°/sec
• Preset Speed
  • Pan : 200° / sec, Tilt : 200° / sec

• Preset Positions
  • 10 (IR), 256 (IP & USB)
• Camera Control – Interface
  • IP, USB

• Camera Control – Protocol
  • VISCA (IP), CGI (IP), USB
• Image Processing
  • Noise Reduction (2D/3D), Flip, Mirror, WDR

• Power Frequency
  • 50Hz / 60Hz

AI Auto Tracking Functions

• Tracking Mode

  • Presenter Mode, Zone Mode

Audio

• Channels

  • 2ch (Stereo)

• Codecs

  • AAC, PCM

• Sample Rate

  • AAC (48, 32, 16, 8 KHz), PCM (48 KHz)

Interface

• Video Outputs

  • IP, USB

• Audio Outputs

  • IP, USB

• Audio Inputs

  • Mic in, Line in

General

• Power Requirement

  • AC 110–220V to DC 12V/2A

• Power Consumption

  • 12W

• PoE

  • PoE+

• Dimensions (W x H x D)

  • 158.8 x 200.0 x 162.2 mm

• Net Weight

  • 1.62 (±0.1) kg

• Application

  • Indoor

• Tally Lamp

  • N/A

• Security

  • Kensington slot

• Remote Control

  • Infrared

• Operating Condition

  • Temperature: 0°C to 40°C
  • Humidity: 20% to 80%

• Storage Condition

  • Temperature: -20°C to 60°C
  • Humidity: 20% to 95%

IP Streaming

• Resolution

  • 1080p 60fps

• Network Video Compress Format

  • H.264, MJPEG (Web Page)

• Network Audio Compression Formats

  • AAC

• Sample Rates

  • 48, 32, 16, 8 KHz

• Maximum Frame Rate

  • 1080p 60fps

• Bit-rate Control Modes

  • VBR, CBR

• Range of Bit-rate setting

  • 512 Kbps to 32 Mbps

• Network Interface

  • 10/100 Base-T

• Multi-stream Capability

  • 2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.)
  • 3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)

• Network Protocol

  • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

• NDI^®|HX Capability

  • N/A
