Description

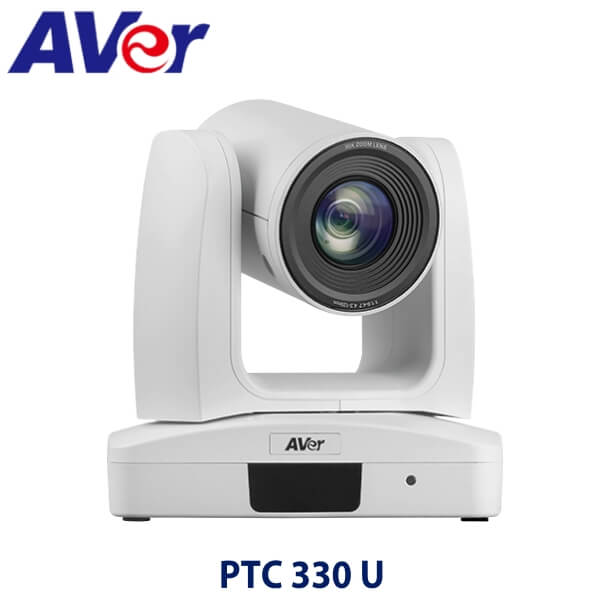

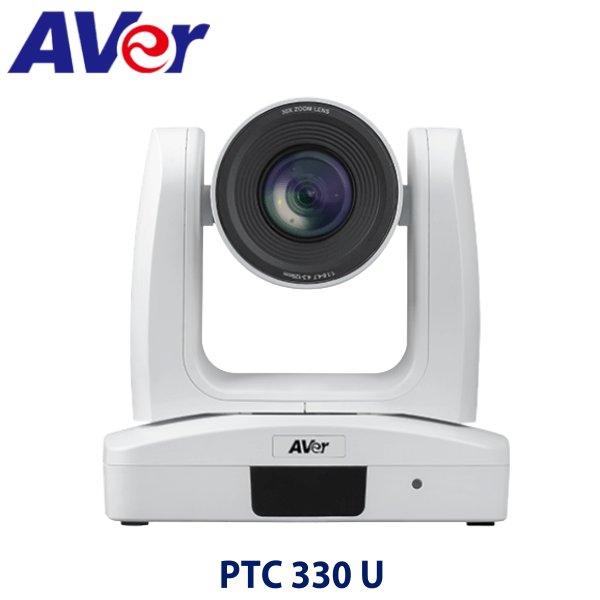

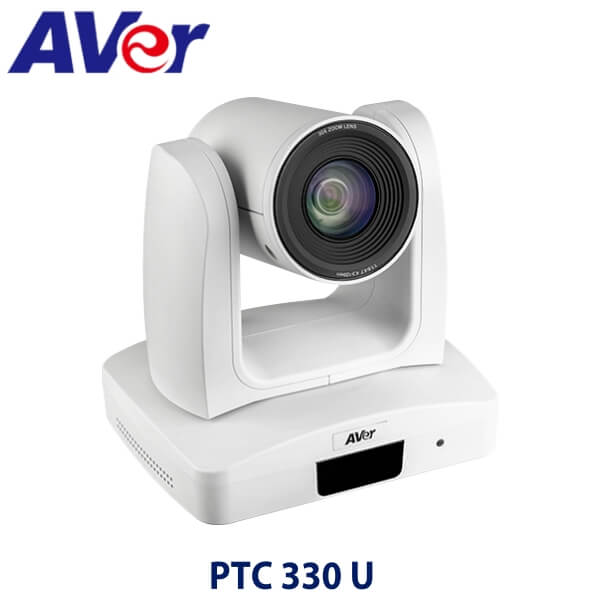

Aver PTC330U Jeddah
The Aver PTC330U Jeddah Artificial Intelligent Auto Tracking Pan-Tilt-Zoom Camera is a reliable device engineered with inspiration from AVer’s futuristic PTZ Cameras. Offered in the color choice of grey and white, it brings on board amazing versatility to effectively work with both businesses, medical facilities, and classrooms. Aver PTC330U onboards Human Detection technology to offer Presenter and Zoom auto-tracking modes. Furthermore, Aver PTC330U Jeddah combines the inbuilt 30X Optical Zoom lens with 4K resolution to provide users with efficient Pan, Tilt, and Zoom functions for Content Streaming, Recording, and Broadcasting.
Aver PTC330U Features :
- 4K Resolution
- The camera on the PTC330U has a 4K output, on top of auto-tracking precision and Ultra High Definition resolution of 1080p resulting in crystal clear images. The inbuilt Sony sensor offers users next-level video performance for every frame of the production, complete with auto exposure, autofocus, and auto white balance.
- Human Detection Artificial Intelligence
- Move into the future of video recording with AVer’s advanced technology of Artificial Intelligence; Human Detection. This smart algorithm is not only accurate but also able to easily detect and capture human subjects and moving objects within the room, all this in seconds. With this intelligence, you can be guaranteed to never lose track of a target again.
- Zooming Performance
- The AVer PTC330U has a zooming power of up to 60× (30× optical zoom and 2× sensor zoom). Even when the camera is panning and tilting, it works efficiently to allow you to highlight content and randomly change your shooting angles. The AVer PTC330U has been designed to let you enjoy clear video content, even when images are zoomed in to maximum angle, minus motion blurs or pixilation.
- Instant Focus Redirect
- The Aver PTC330U enables you to redirect focus by simply clicking on a target to quickly adjust the shooting angle and start your tracking process. All this has been made easy as you can operate through the remote control or Web UI.
- Freedom to Interact
- The camera’s presenter mode enables you to easily track your target everywhere. The Aver PTC330U affords the one leading the meeting unlimited freedom to move around the room and interact with the audience without fear of being out of focus as the camera continuously tracks subjects. The camera focuses on its target, ignoring other distractions during your presentation, which frees you from having to sit in the same position throughout.
- Multi-Display Capture
- The AVer PTC330U camera has a Zone Mode feature which improves your ability to capture content on multiple displays. This gives you the option of creating up to four content zones, with a focus on the displayed content rather than the presenter’s movements.
- Impressive 255 Preset Locations
- On top of the 10 preset locations that can be achieved via the IR remote control, you can capture a wide variety of angles as well as shift the recording view in an instant, thanks to the 255 preset location onboard the AVer PTC330U. This is made possible through VISCA via RS232 and RS422 functionalities. Furthermore, the AVer SmartShoot technology offers you maximum camera control to enable seamless transitions between the preset areas. This gives you the ability to run multi-camera productions linking into the same PTC330U thereby saving you time and effort while enjoying unparalleled shooting dynamics.
- Motion Control Stability
- With the freedom to customize speed settings from 0.1°to 200° per second, giving you maximum precision and agility with controls like panning, tilting and rotation.
- Instant Field of View Adjustment
- Infused with AVer’s SmartFrame technology, the PTC330U offers the user one-touch face targeting optics to help you capture stunning content within the shortest time possible. SmartFrame automatically adjusts the FOV to include everyone on the screen, giving you quick turnaround time to record conferences, lectures and presentations with minimum effort. With the PTC330U, creating amazing video content is now easy, quick, and enjoyable.
Aver PTC330U Specification :
Image Sensor | 1/ 2.5″ 4K Exmor CMOS |
Effective Picture Elements | 8 megapixels |
Output Resolutions | 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50,1080p/30, 1080p/29.97, 1080p/25,1080i/60, 1080i/50,720p/60, 720p/59.94,720p/50 |
Minimum Illuminations | 2.7 lux (IRE50, F 1.5, 30fps) |
S/N Ratio | ≥50dB |
Gain | Auto, Manual |
TV Line | 1400 (center) |
Shutter Speed | 1/1 to 1/32000 sec |
Exposure Control | Auto, Manual, Priority AE (Shutter, Iris), BLC, WDR |
White Balance | Auto, Manual |
Optical Zoom | 30 × |
Digital Zoom | 12 × |
Sensor Zoom | 2 × |
Viewing Angles | DFOV: 75°(Wide) to 3°(Tele) HFOV: 68° (Wide) to 2.8° (Tele) VFOV: 40° (Wide) to 1.6°(Tele) |
Focal Length | f = 4.8mm (Wide) to 144mm (Tele) |
Aperture (Iris) | F = 1.5mm (Wide) to 3.4mm (Tele) |
Minimum Working Distance | 1.5m to infinity |
Pan/Tilt angles | Pan: ±170° Tilt: +90°/ -30° |
Pan/Tilt speed (manual) | Pan: 0.1° to 100°/sec Tilt: 0.1° to 100°/sec |
Preset Speed | Pan: 200°/sec, Tilt: 200°/sec |
Preset Positions | 10 (IR), 256(RS -232) |
Camera Control – Interfaces | RS -232 (DIN8), RS – 422(RJ45), IP |
Camera Control – Protocols | VISCA, PELCO – D (RS -232/RS – 422/IP), CGI (IP) |
Image Processing | Noise reduction (2D/3D), Flip, Mirror |
Power Frequencies | 50Hz, 60 Hz |
Tracking Modes | Presenter Mode, Zone Mode |
Channel | 2 channels (Stereo) |
Codecs | AAC – LC (48/44.1/32/24K), G.711, PCM(8K) |
Sample Rates | 48/44.1/32/24/16/8kHz |
Video Outputs | 3G – SDI, HDMI, IP, USB |
Audio Outputs | 3G – SDI, HDMI, IP, USB |
Audio Inputs | MIC in, Line in |
Power Requirement | AC100V – AC240V to DC12V/5A |
Power Consumption | 18W |
PoE | PoE+ |
Dimensions (W × H × D) | 180.0× 183.5 × 145.0mm |
Net Weight | 1.7(±0.1) kg |
Application | Indoor |
Tally Lamp | Yes |
Security | Kensington slot |
Remote control | Infrared |
Operating Conditions | Temperature: 0° to +40°C Humidity :20% to 80% |
Storage Conditions | Temperature: -20° to +60°C Humidity: 20% to 95% |
Resolution | 4K 30 fps |
Network Video Compress formats | H.264, H.265 MJPEG |
Maximum Frame Rates | 4K 30fps or 1080p 60fps |
Bit-rate Control Modes | VBR, CBR (selectable) |
Range of Bit-rate Setting | 512Kbps to 32Mbps |
Network Interfaces | 10/100/1000 Base -T |
Multi-Stream capability | 2 (RTSP/web page), 1080p 60fps (max) |
Network Protocols | IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP |
NDI® |HX Capability | Yes (optional) |
Connector | USB 3.0 |
Video Format | MJPEG |
Maximum Video Resolution | 2160p |
USB Video Class | UVC1.1 |
USB Audio Class | UAC1.0 |
Live Video Preview | Yes |
Camera PTZ control | Pan, Tilt, Zoom, Focus, Preset control |
Camera /Image adjustment | Exposure, White balance, Picture |
Network Configuration | DHCP, IP address, Gateway, Subnet mask, DNS |
IP Search & Configuration tool | Support Windows® 7 or later |
What’s in the Box :
- The Aver PTC330U Camera
- Remote control
- Power Adapter
- Power cord
- Cable Ties (×5)
- Screws (×10)
- Cable Fixing Plates (×2)
- Ceiling Mount Brackets (×2)
- Quick Start Guide
