Description

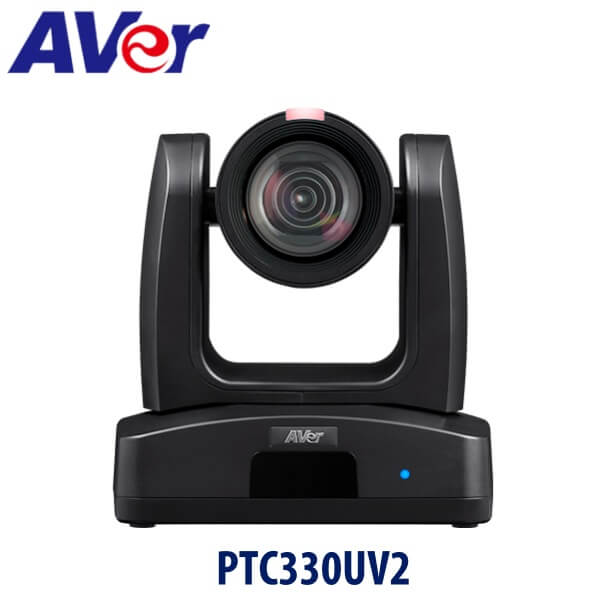

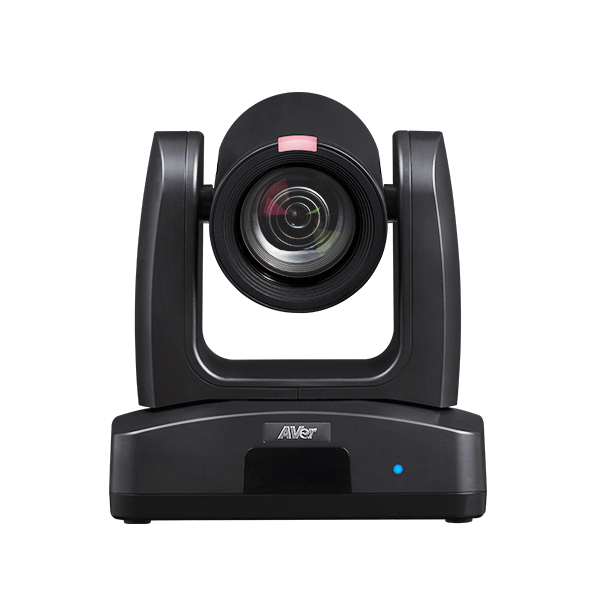

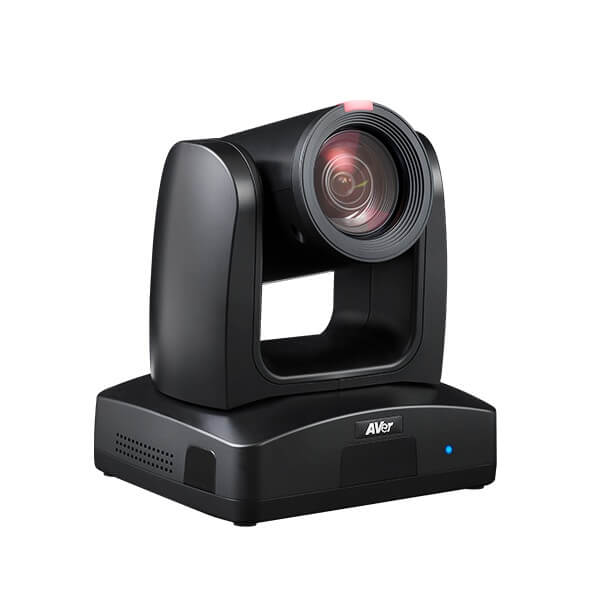

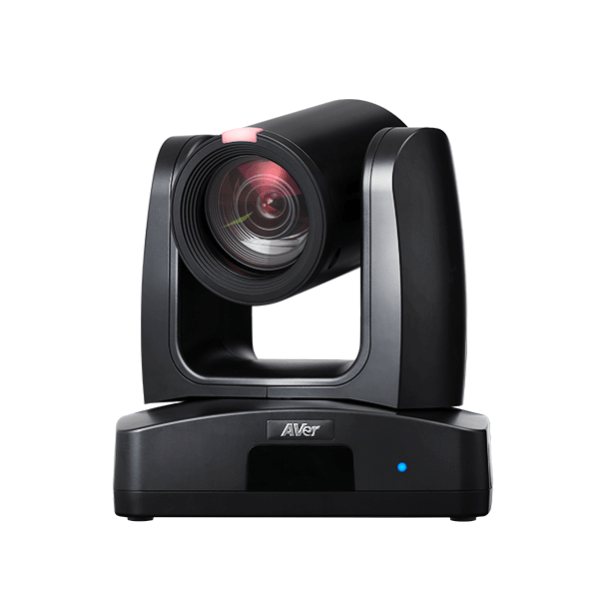

Aver PTC330UV2 AI Auto Tracking PTZ Camera Jeddah
The Aver PTC330UV2 Jeddah AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC330UV2 features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 30X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!
Features:
4K Output Resolution
Equipped with 4K resolution, the Aver PTC330UV2 Jeddah provides ultra-precise auto tracking. The camera also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.
30X Optical Zoom & 12X Digital Zoom
The zoom power of the Aver PTC330UV2 Jeddah camera reaches an incredible 360X (30X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC330UV2.
Human Detection AI
Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables Aver PTC330UV2 Jeddah to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
Click & Track
Redirect focus in an instant with the PTC330UV2. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.
Presenter Mode
Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
Zone Mode
Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
Hybrid Mode
Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.
Technical Specifications
Camera
-
- Image Sensor
-
- 1/2.8″ 4K Exmor CMOS
-
- Effective Picture Elements
-
- 8 Megapixels
-
- Output Resolutions
-
- 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
-
- Minimum Illumination
-
- 0.5 lux (IRE50, F1.6, 30fps)
-
- S/N Ratio
-
- ≥ 50dB
-
- Gain
-
- Auto, Manual
-
- TV Lines
-
- 1400 (Center/Wide)
-
- Shutter Speed
-
- 1/1 to 1/32,000 sec
-
- Exposure Control
-
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
-
- White Balance
-
- Auto, Manual, ATW, One Push
-
- Optical Zoom
-
- 30X
-
- Digital Zoom
-
- 12X
-
- Total Zoom
-
- 360X
-
- Viewing Angles
-
- DFOV : 72.9° (Wide) to 2.64° (Tele)
- HFOV : 65.1° (Wide) to 2.34° (Tele)
- VFOV : 38.4° (Wide) to 1.36° (Tele)
-
- Focal Length
-
- f = 4.3 mm (Wide) to 129 mm (Tele)
-
- Aperture (Iris)
-
- F = 1.6 (Wide) to 4.7 (Tele)
-
- Minimum Working Distance
-
- 0.01 m (Wide), 1.2m (Tele)
-
- Pan / Tilt Angles
-
- Pan : ±170°, Tilt : +90° / -30°
-
- Pan / Tilt Speed (Manual)
-
- Pan : 0.1° to 100° /sec, Tilt : 0.1° to 100° /sec
-
- Preset Speed
-
- Pan : 200° /sec, Tilt : 200° /sec
-
- Preset Positions
-
- 10 (IR), 255 (RS-232, RS-422, IP)
-
- Camera Control – Interfaces
-
- RS-232 (DIN8), RS-422 (RJ45), IP
-
- Camera Control – Protocols
-
- VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
-
- Image Processing
-
- Noise Reduction (2D / 3D), Flip, Mirror
-
- Power Frequencies
-
- 50Hz, 60Hz
AI Auto Tracking Functions
-
- Tracking Modes
-
- Presenter Mode, Zone Mode, Hybrid Mode
Privacy Protection Mechanism
-
- Protection Mode
-
- Sleep Mode
Audio
-
- Channels
-
- 2ch Stereo
-
- Codecs
-
- AAC-LC, PCM
Interface
-

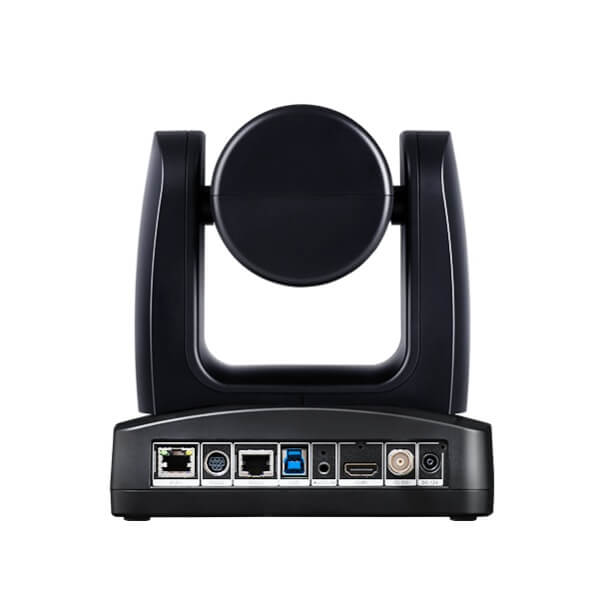

- Video Outputs
-
- 3G-SDI, HDMI, IP, USB
-
- Audio Outputs
-
- 3G-SDI, HDMI, IP, USB
-
- Audio Inputs
-
- MIC in, Line in
General
-
- Power Requirement
-
- AC 100 – 240V to DC 12V/5A
-
- Power Consumption
-
- 19W
-
- PoE
-
- PoE+
-
- Dimensions (W x H x D)
-
- 180.0 x 192.0 x 145.0 mm
-
- Net Weight
-
- 2.0 (±0.1) kg
-
- Application
-
- Indoor
-
- Tally Lamp
-
- Yes
-
- Security
-
- Kensington Slot
-
- Remote Control
-
- Infrared
-
- Operating Conditions
-
- Temperature: 0°C to +40°C ; Humidity: 20% to 80%
-
- Storage Conditions
-
- Temperature: -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
-
- Resolution
-
- 4K 30fps
-
- Network Video Compress Formats
-
- H.264, H.265, MJPEG
-
- Maximum Frame Rate
-
- 4K 30fps
-
- Bit-rate Control Modes
-
- VBR, CBR (selectable)
-
- Range of Bit-Rate Setting
-
- 512 Kbps to 32 Mbps
-
- Network Interface
-
- 10 / 100 / 1000 Base-T
-
- Multi-Stream Capability
-
- 2 (RTSP / Web Page), 4K 30fps (max.)
-
- Network Protocols
-
- IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
-
- NDI |HX Capability
-
- License Upgrade
USB
-
- Connector
-
- USB 3.0
-
- Video Formats
-
- MJPEG, YUY2
-
- Maximum Video Resolution
-
- 2160p
-
- USB Video Class
-
- UVC1.1
-
- USB Audio Class
-
- UAC1.0
Web UI
-
- Live Video Preview
-
- Yes
-
- Camera PTZ Control
-
- Pan, Tilt, Zoom, Focus, Preset Control
-
- Camera / Image Adjustment
-
- Exposure, White Balance, Picture
-
- Network Configuration
-
- DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
-
- IP Search & Configuration Tool
-
- Support Windows 7 or later
-
- PTZ Management
-
- Support Windows 7 or later
-
- PTZ Control Panel
-
- Supports iOS & iPadOS 11 or later
-
- PTZ Link
-
- Support Windows 7 or later, macOS 10.14 or later
-
-
- OBS Plugin for PTZ Cameras
-
- Support Windows 8 or later, macOS High Sierra v10.13 or later
-
- CaptureShare
-
- Support Windows 7 or later, macOS 10.14 or later
-
Warranty
-
- Camera
-
- 3 Years
-
- Accessories
-
- 1 Year
-
- Package Contents
-
- Camera, Drilling Paper, Ceiling Mount Bracket (x2) Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4″-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
-
- Optional Accessories
-
- AVer CL01 PTZ Camera Controller, L-Type Wall Mount
