Description

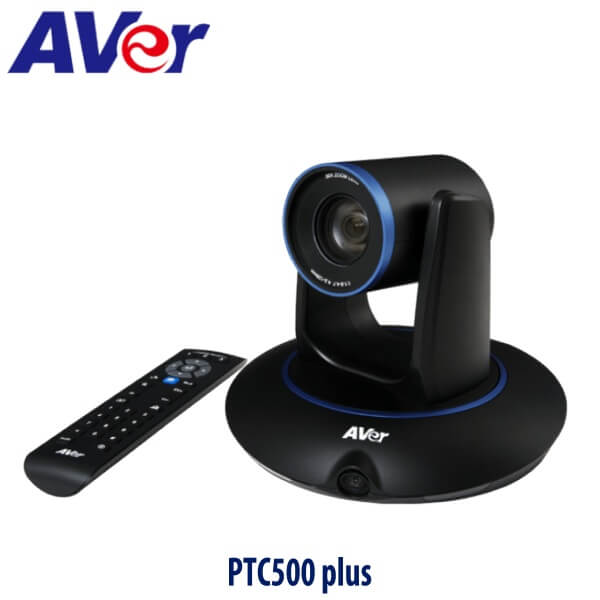

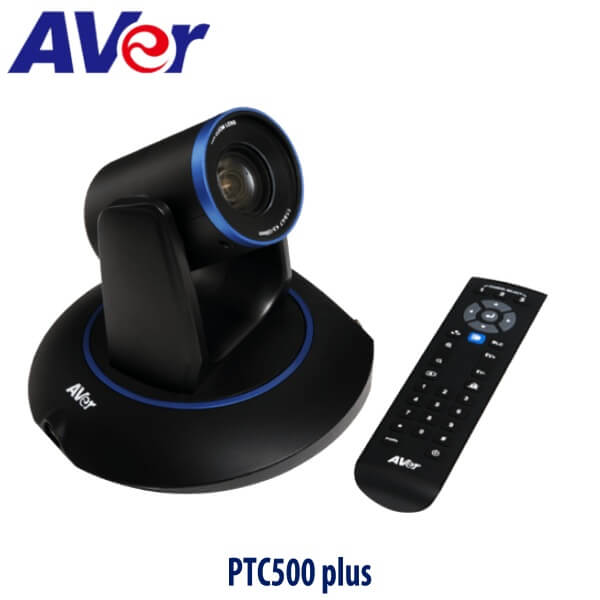

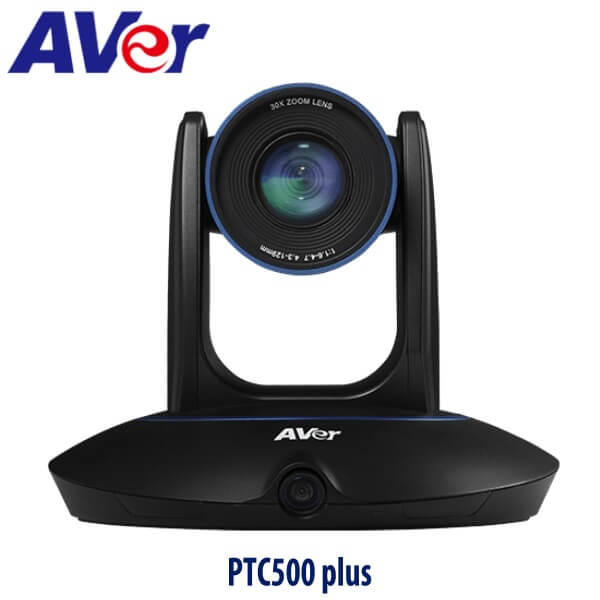

Aver ptc500plus Auto Tracking Camera Jeddah
Aver ptc500plus Auto Tracking Camera Jeddah Professional Auto Tracking Camera with Wide Area Tracking, USB Connectivity, Dual Lens Design,30X Optical Zooma and Multi-Presenter Detection. New USB connectivity for the Aver PTC500+ Jeddah allows you to shift from audience mode to presenter mode during a video conferencing session. Also, unparalleled UVC and UAC protocols make these cameras compatible with popular streaming and broadcasting software so you can go live anytime. A PTZ camera with a 30X optical zoom and a 350° pan and 120° tilt radius make the Aver PTC500+ ideal for large classrooms or auditoriums. Full HD 1080p 60fps video and a powerful remote autofocus function display important details distinctly, capturing the full joy of the classroom with the most realistic and dynamic image quality. The Aver ptc500plus Auto Tracking Camera Jeddah uses exclusive algorithms to automatically track a presenter’s face and movements. That means teachers can freely walk around the class to guide students without any accessories. Forget about the restrictions, security, and expense of a wearable device, and focus on building zero-distance interactive teaching. A dual-lens design integrates a PTZ camera with a panoramic 120° FOV secondary camera to track the speaker and simultaneously capture the classroom. Also, you can enable and adjust the PIP mode while capturing. Clearly present every detail and never miss a teachable moment. Multi-Presenter Detection accurately helps when there are two or more people in the effective area. This feature allows the camera to continue tracking when teachers conduct group discussions, interactive games, and more in front of the class. Use one camera to capture every detail of every learning situation.
Aver Ptc500 Plus Auto Tracking Camera Uae
Aver ptc500plus Features
- USB Connectivity
- Up to 30X Optical Zoom
- No Extra Devices Needed
- Dual Lens Design
- Three AI Tracking Modes
- Wide Area Tracking
- Stage Tracking
- Segment Tracking
Aver Ptc500 Plus Auto Tracking Camera Jeddah
Aver ptc500plus Specifications
Camera
-
- Image sensor
-
- 1/2.8″ 1080p Exmor CMOS
-
- Effective Picture Elements
-
- 2 Megapixels
-
- Output Resolutions
-
- Auto, 1080p/60, 1080p/50, 1080p/30, 1080i/60, 1080i/50, 720p/60
-
- Minimum Illumination
-
- 0.47 Lux (IRE50, F1.6, 60fps); 0.23 Lux (IRE50, F1.6, 30fps)
-
- S/N Ratio
-
- >50dB
-
- Gain
-
- Auto, Manual
-
- TV Line
-
- 900 (Center), 600 (Corner)
-
- Shutter Speed
-
- 1/5 to 1/32,000 sec
-
- Exposure Control
-
- Auto, Manual, Priority AE (Shutter, IRIS)
-
- White Balance
-
- Auto, Manual
-
- Optical Zoom
-
- 30X
-
- Digital Zoom
-
- 12X
-
- Sensor Zoom
-
- 1X
-
- Viewing Angles
-
- DFOV : 73° (Wide) to 2.6° (Tele)
- HFOV : 65° (Wide) to 2.3° (Tele)
- VFOV : 38° (Wide) to 1.3° (Tele)
-
- Focal Length
-
- f = 4.3 mm (Wide) to 129 mm (Tele)
-
- Aperture (Iris)
-
- F = 1.6 (Wide) to 4.7 (Tele)
-
- Minimum Working Distance
-
- 0.1 m (Wide), 1.2 m (Tele)
-
- Pan / Tilt Angles
-
- Pan: ±175°
- Tilt: +90°/-30°
-
- Pan / Tilt Speed (Manual)
-
- Pan: 2° to 50°/sec
- Tilt: 2° to 50°/sec
-
- Preset Speed
-
- Pan: 160°/sec
- Tilt: 160°/sec
-
- Preset Positions
-
- 10 (IR), 256 (RS-232)
-
- Camera Control – Interfaces
-
- RS-232 (DIN8)/IP
-
- Camera Control – Protocols
-
- VISCA (RS-232/IP)
- PELCO-D & PELCO-P (RS-232)
- CGI (IP)
-
- Image Processing
-
- Noise Reduction
-
- Power Frequencies
-
- Auto, 50 Hz, 60 Hz
Panoramic Camera (Full View)
-
- Image Sensor
-
- 1/2.8″ 60fps low lux CMOS sensor
-
- Effective Picture Elements
-
- 2 Megapixels
-
- Output Resolutions
-
- auto, 1080p/60, 1080p/30, 720p/60
-
- Focal Length
-
- 2.12 mm
-
- White Balance
-
- Auto
-
- Exposure
-
- Auto
-
- Viewing Angles
-
- DFOV = 120°
- HFOV = 110°
- VFOV = 74°
AI Auto Tracking Functions
-
- Tracking Modes
-
- Wide Area, Stage, Segment
Audio
-
- Channels
-
- 1ch Mono (RTSP)
- 2ch Stereo (HDMI/UAC)
-
- Codecs
-
- AAC-LC (48K)
- G.711 (8K)
-
- Sample Rate
-
- 48/8 KHz
Interface
-
- Video Outputs
-
- 3G-SDI, HDMI, IP, USB
-
- Audio Outputs
-
- HDMI, IP, USB
-
- Audio Inputs
-
- Line in
General
-
- Power Requirement
-
- AC 110–220V to DC 12V/5A
-
- Power Consumption
-
- 24W
-
- PoE
-
- PoE+
-
- Dimensions (W x H x D)
-
- 202 x 178 x 210 mm
-
- Net Weight
-
- 1.75 (±0.1) kg
-
- Application
-
- Indoor
-
- Tally Lamp
-
- N/A
-
- Security
-
- Kensington Slot
-
- Remote Control
-
- Infrared
-
- Operating Conditions
-
- Temperature: 0°C to 40°C
- Humidity: 20% to 80%
-
- Storage Conditions
-
- Temperature: -20°C to 60°C
- Humidity: 20% to 95%
IP Streaming
-
- Resolution
-
- 1080p 60fps (Dual Stream)
-
- Network Video Compress Formats
-
- H.264, MJPEG
-
- Maximum Frame Rate
-
- 1080p 60fps (Dual Stream)
-
- Bit-Rate Control Modes
-
- CBR
-
- Bit-Rate Range Setting
-
- 512 Kbps to 6 Mbps
-
- Network Interface
-
- 10/100/1000 Base-T
-
- Multi-stream Capability
-
- 3 (2 for RTSP, 1 for Web Page)
- 1080p 60fps (max.)
-
- Network Protocols
-
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA Over IP, ONVIF
-
- NDI®|HX Capability
-
- N/A
USB
-
- Connector
-
- USB 2.0
-
- Video Formats
-
- MJPEG, YUY2
-
- Maximum Video Resolution
-
- 1080p
-
- USB Video Class
-
- UVC1.1
-
- USB Audio Class
-
- UAC1.0
Web UI
-
- Live Video Preview
-
- Yes
-
- Camera PTZ Control
-
- Pa, Tilt, Zoom, Focus, Preset Control
-
- Camera/Image Adjustment
-
- Exposure, White Balance, Picture
-
- Network Configuration
-
- DHCP, IP Address, Gateway, Subnet Mask, DNS
-
Software Tools
-
- IP Searching and Configuration Tool
-
- Supports Windows® 7 or later
-
- PTZ Management
-
- Supports Windows® 7 or later
-
- PTZ Control Panel
-
- Supports iPadOS® 11 or later
-
- CaptureShare
-
- Supports Windows® 7 or later
- Supports macOS® 10.14 or later
