Description

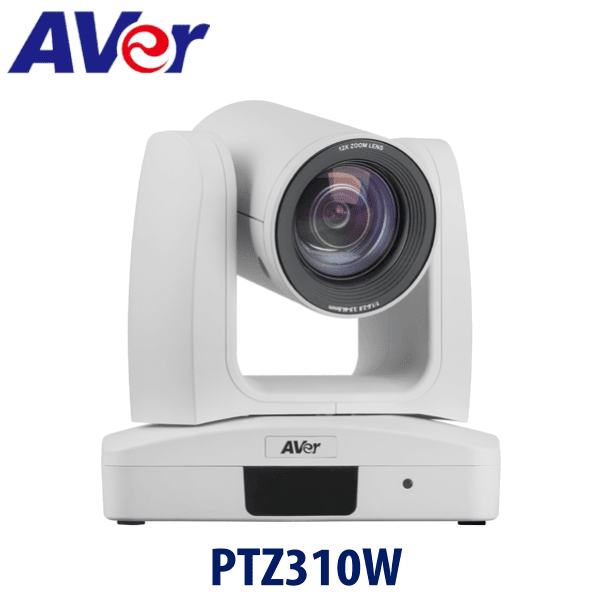

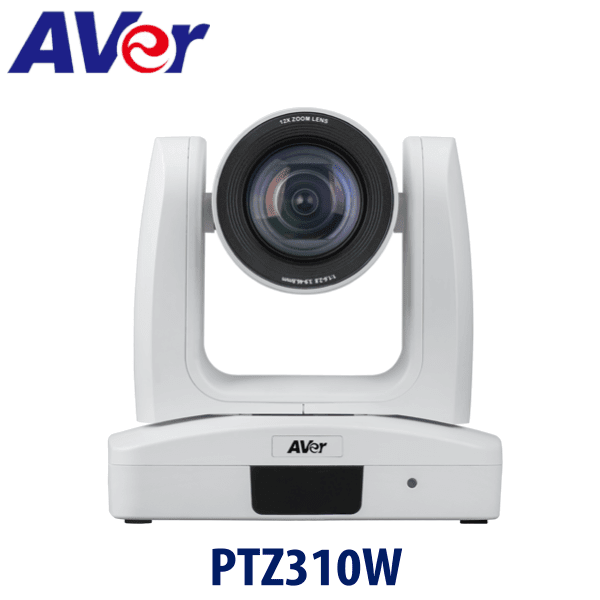

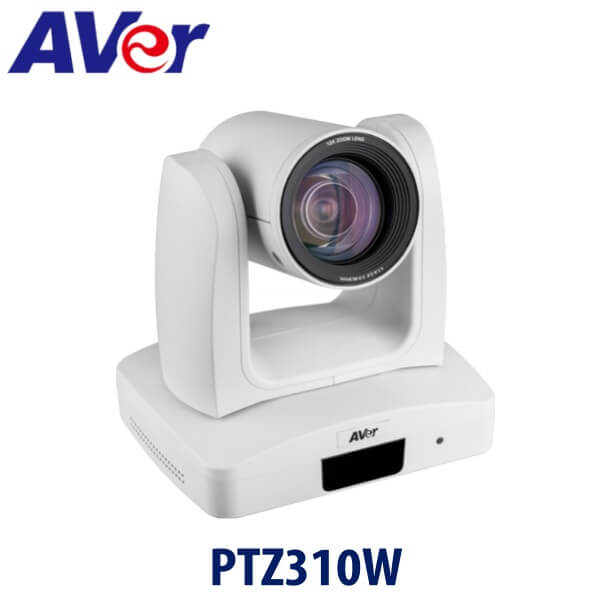

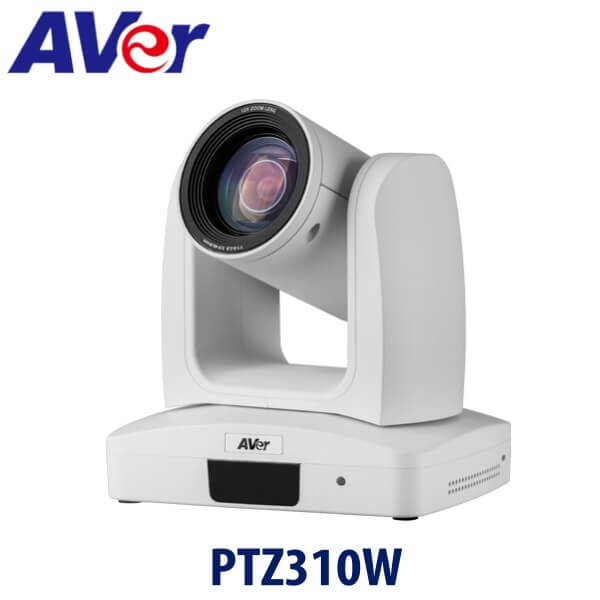

Aver PTZ310W Professional PTZ Camera Jeddah
The Aver PTZ310W Jeddah allows you to capture 1080p images and videos via its 1/2.8″ CMOS sensor. The PTZ310 features a 12x optical zoom, a 12x digital zoom, and it supports flip and mirror image options.
The Aver PTZ310W Jeddah features 10 angle preset locations via IR and 255 presets via RS-232, and you can control the ±170° pan and -30 to +90° tilt range and speed. The camera offers 3G-SDI and HDMI outputs, micro-USB video output, LAN streaming via RTP/RTSP, embedded and stereo audio input, and RS-422/RS-232/VISCA-over-IP control interfaces. The SmartShoot Content Capture allows you to streamline the camera feel, and the SmartFrame feature allows you to adjust your FOV when recording.
Top Features
High-Quality Video
The AVer PTZ310 Jeddah Professional Live Streaming PTZ Camera provides the superior video quality and versatility you need to record and share events around the world.
Seamless Tracking
AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot preset zone tracking, you can create an uncompromising multi-camera feel with just one Aver PTZ310W Jeddah across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.
Wide FOV
AVer’s SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed, so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.
Versatile Camera Motion Control
The Aver PTZ310W Jeddah advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, this video conferencing system is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.
Preset Location Functionality
Preset the Aver PTZ310W Jeddah with up to 255 different locations through VISCA via RS-232 and RS-422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Compatible Software
Crestron, Echo360, Extron, KALTURA, Panopto, vMix, ZOOM, Telestream
Free Software for Users and AV Managers
Whether you need a simple tool to control your PTZ or TR camera or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered.
AVer PTZ310 Specs
Image Sensor
| Image Sensor | 1-Chip 1/2.8″ CMOS Sensor |
| Horizontal Resolution (TV Lines) | 800 TV Lines |
| Sensor Resolution | Effective: 2.1 Megapixel (1920 x 1080) |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.4 Lux |
Camera
| Shutter Speed | 1/1 to 1/32,000 sec |
| Max Digital Zoom | 12x |
| Built-In Speaker | No |
| Built-In ND Filter | None |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
Lens
| Optical Zoom Ratio | 12x |
| Focal Length | 3.9 to 46.8mm |
| Field of View | Horizontal: 72.5 to 6.6° |
| Maximum Aperture | f/1.6 to 2.8 |
| Minimum Focus Distance | Wide: 11.8″ / 0.3 m Telephoto: 59.1″ / 1.5 m |
| Focus Control | Autofocus Manual Focus |
Video Output
| Output Formats | SDI, HDMI, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| IP Streaming | H.264, MJPEG, RTMP, RTP, RTSP, TCP, UDP: 1080p, 720p, 480p at 30p, 60p (32.00 Mb/s) |
| IP Multi-Stream Support | Yes |
Control
| Presets | 10 via IR 255 via RS-232 |
| Move Speed | Pan: 0.1 to 100°/sec Tilt: 0.1 to 100°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP RS-232 RS-422 VISCA |

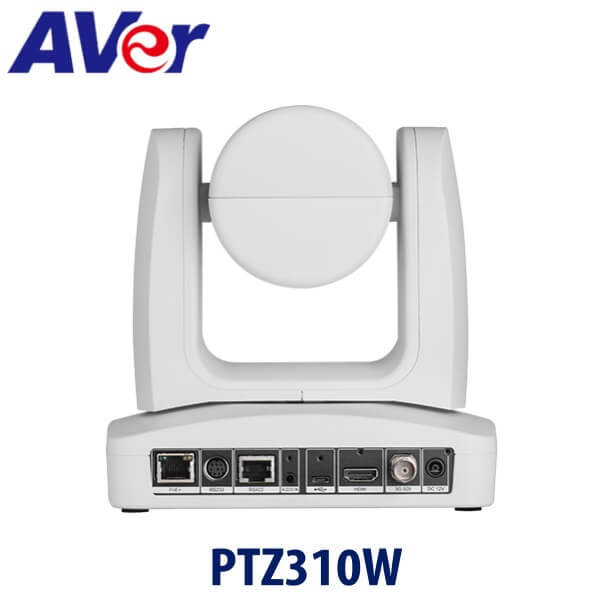

Interfaces
| Video Output Connectors | 1 x BNC (3G-SDI) Female 1 x HDMI Type A Female 1 x RJ45 (HX / NDI) Female 1 x Micro-USB 2.0 Type-B (USB Video) Female |
| Audio I/O | 1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input |
| Control Interface | 1 x RJ45 (RS-422) 1 x 9-Pin D-Sub (RS-232) |
| Other I/O | 1 x RJ45 (LAN) Input/Output |
Power
| PoE Support | PoE+ 802.3at |
| Power Connectors | 1 x Barrel / Coaxial (12 VDC at 5 A) |
| Power Consumption | Power Supply: 100 to 240 VAC |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
