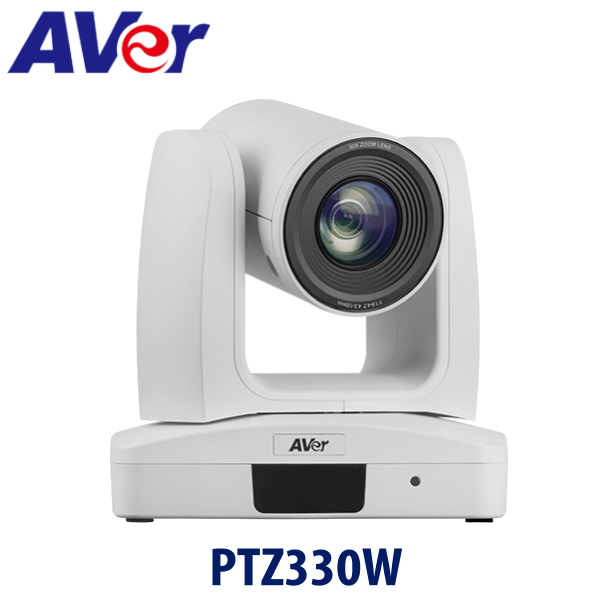

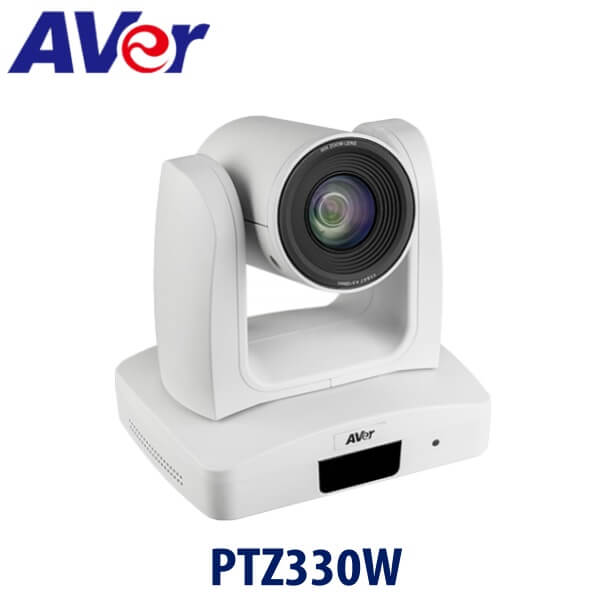

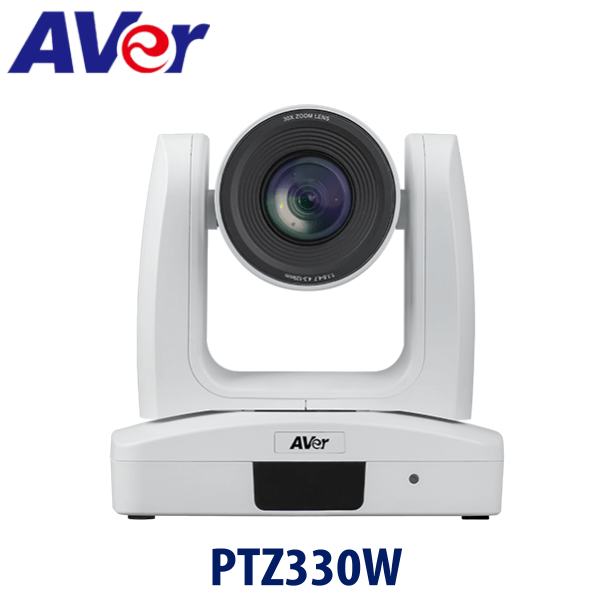

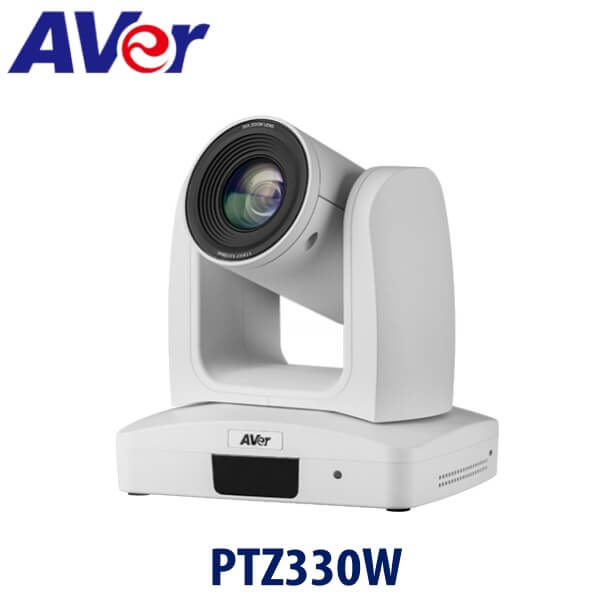

Aver PTZ330W Professional PTZ Camera Jeddah
The Aver PTZ330W Jeddah allows you to capture 1080p images and videos via its 1/2″8 CMOS sensor. This Video Conferencing system features a 30X optical zoom and a 12X digital zoom, and supports Flip and Mirror options. The camera features 10 angle preset locations via IR and 255 presets via RS-232. You can control the 170° pan and -30 to +90° tilt range and speed. The camera features 3G-SDI and HDMI outputs, stereo audio input, RS-422, RS-232, LAN, and USB Micro-B control interfaces. The SmartShoot Content Capture allows you to streamline the camera feel, and the SmartFrame feature allows you to adjust your FOV when recording.
The Aver PTZ330W Jeddah Professional Live Streaming PTZ Camera provides the superior video quality and versatility you need to record and share events around the world! Available in white to suit your hospital, classroom, or wedding atmospheres.
Specifications
Image Sensor
| Image Sensor | 1-Chip 1/2.8″ CMOS Sensor |
| Horizontal Resolution (TV Lines) | 600 TV Lines |
| Sensor Resolution | Effective : 2 Megapixel |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.3 Lux |
Camera
| Shutter Speed | 1/1 to 1/32,000 sec |
| Max Digital Zoom | 12x |
| Built-In Speaker | No |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
Lens
| Optical Zoom Ratio | 30x |
| Focal Length | 4.3 to 129mm |
| Field of View | Horizontal : 67 to 2.3° |
| Maximum Aperture | f/1.6 to 4.7 |
| Minimum Focus Distance | Wide : 0.0″ / 0.0 m Telephoto : 47.2″ / 1.2 m |
Video Output
| Output Formats | SDI, HDMI, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| IP Streaming | H.264, MJPEG: 1080p at 30p, 60p |
Control
| Presets | 10 via IR 255 via RS-232 |
| Move Speed | Pan : 0.1 to 100°/sec Tilt : 0.1 to 100°/sec |
| Movement Range | Pan : 170° Tilt : -30 to 90° |
| Supported Control Protocols | IP RS-232 RS-422 VISCA |

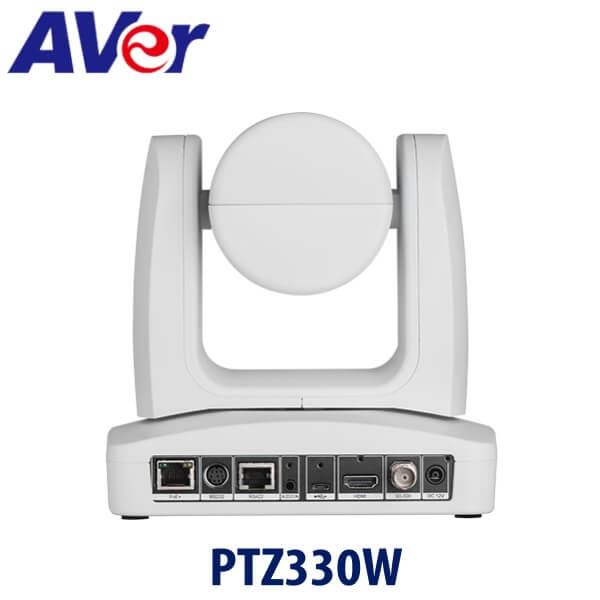

Interfaces
| Video Output Connectors | 1 x BNC (3G-SDI) 1 x HDMI Type A (HDMI 1.4) |
| Audio I/O | 1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input |
| Control Interface | 1 x RJ45 (RS-422) 1 x 9-Pin D-Sub (RS-232) |
| Other I/O | 1 x RJ45 (LAN) 1 x USB Micro-B |
Power
| PoE Support | PoE+ 802.3at |
| Power Connectors | 1 x Barrel / Coaxial (12 VDC at 5 A) |
| Power Consumption | Power Supply: 100 to 240 VAC |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
General
| Security Lock Support | Kensington Lock Slot |
| Dimensions | 7.22 x 7.09 x 5.71″ / 183.5 x 180 x 145 mm |
| Weight | 3.57 lb / 1.62 kg |
Packaging Info
| Package Weight | 7.07 lb |
| Box Dimensions (LxWxH) | 10.8 x 10.2 x 10″ |
