Aver VC550 Conferencing Camera Jeddah
Aver VC550 Jeddah is fitted with a powerful speakerphone that delivers studio-quality audio in medium-sized and large conference rooms. It boasts of a variety of advanced features that generally enhance its users’ experience. An integrated 4K dual-lens technology plus 24X total zoom offers precise and clear viewing of meeting rooms and participants. To achieve a full view of conference participants, the AVer VC550 Jeddah comes with an AI lens that delivers an automated PTZ functionality. Aver VC550 Jeddah also has a Smart Gallery feature that pictures each meeting participant for clear viewing from the remote side.
Features

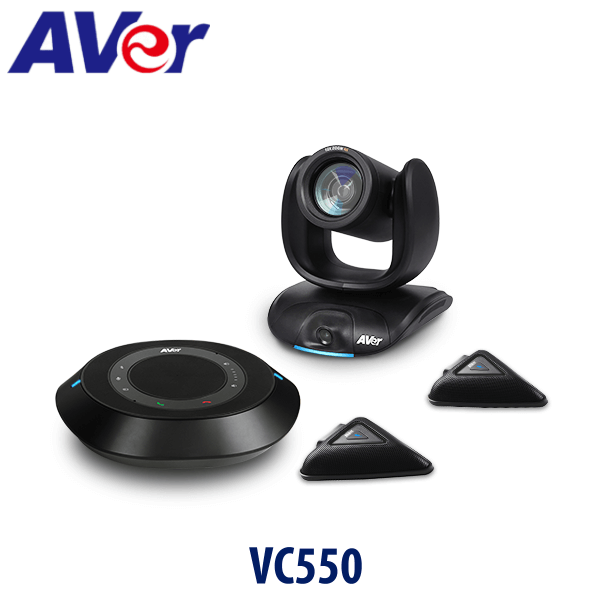

- Scalable Speakerphones
- The Aver VC550 Jeddah provides a premium audiovisual experience. Embedded with daisy-chain technology, the VC550 can be expanded by adding up to four additional microphones or two speakerphones to provide full coverage in mid to large rooms.
- Advanced Noise Suppression Achieves Amazing Acoustics
- Feeling irritated by background keyboard typing and air conditioning sounds during a conference call? The FONE540 silences the noise and guarantees unmatched audio clarity to free you from distractions.
- Flawless Audio for Fluid Communication
- Do people on the other side of your audio meeting still have trouble hearing every word you say? With the FONE540 you won’t have to repeat yourself anymore. Equipped with double-talk detection, the FONE540 makes every call feel like a face-to-face conversation.
- 4K Dual Lens Offers Wide-Angle Clarity for Larger Rooms
- Capture a full view of any meeting room with wide-angle functionality. The Aver VC550 Jeddah equips two 4K lenses, the first of which is a PTZ camera with 12X optical zoom (24X total zoom) which automatically frames participants and the second is an AI lens with 95°FOV, together providing a full and panoramic view of any room.
- Dynamic Framing Enhances Meeting Efficiency
- The Aver VC550 Jeddah quickly and precisely focuses on participants and newcomers. When newcomers walk in, the secondary AI lens springs to action to detect them, then the PTZ camera automatically re-frames. Through fully automatic operation, dynamic framing optimizes meetings and eliminates touch for high levels of safety.
- Highlight Participants with Smart Gallery
- Clearly capture attendees with Smart Gallery, which utilizes AI face and body detection technology to crop participant’s faces and make sure everyone looks great. You can choose between headshot and half body mode to adapt to any situation without compromise.
Specifications
-

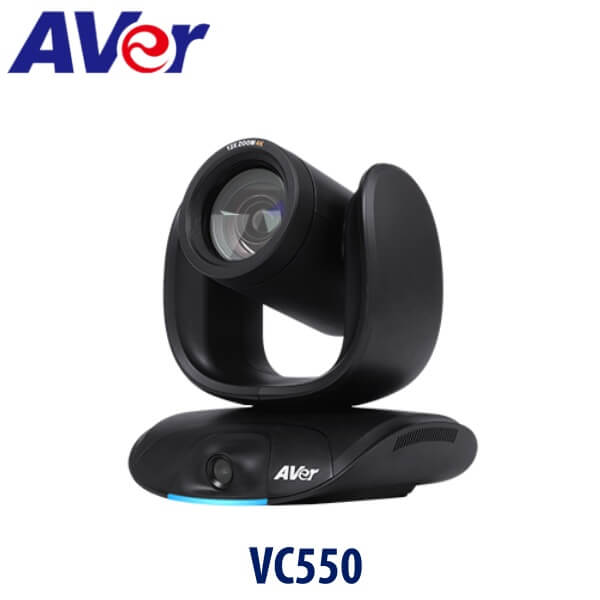

- Dual Lens Camera (CAM550)
- PTZ optical zoom lens
- Image sensor : Sony 4K EXMOR, crystal clear in any lighting
- Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
- 24*X Zoom : 12X optical; 2X digital zoom
- Wide field of view : DFOV 85°; HFOV 76°; VFOV 46°
- Lens focal length : 3.9mm (wide) ~ 47.3mm (tele)
- Lens F# : 1.8 (wide) ~ 2.8 (tele)
- AE, white balance: auto, manual override via PTZApp 2
- Minimum focus distance : 1.5m
- Motorized Pan & tilt : Pan: ±170°;Tilt : +90° (up) -30° (down)
- Preset number : 10 via IR remote, 128 via RS232
Secondary fixed lens (AI lens)
- Image sensor : Sony 4K EXMOR
- Frame rates and resolution set according to PTZ lens settings
- Wide field of view : DFOV 95°; HFOV 78°; VFOV 50°
-

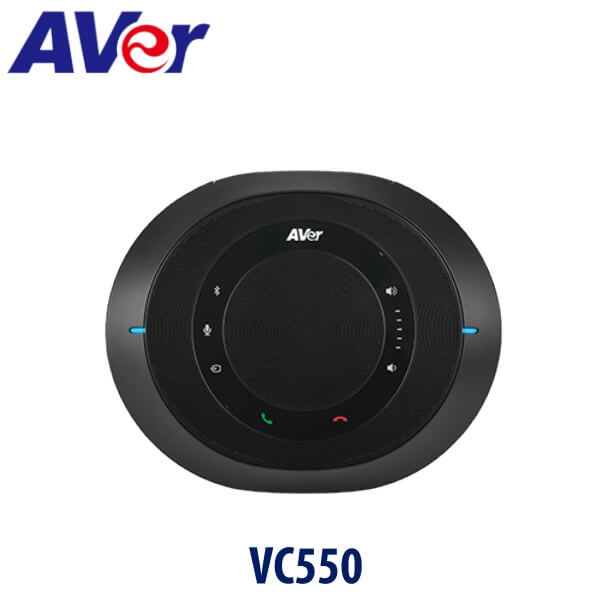

- Speakerphone (FONE540)
-
- Wireless Bluetooth / USB Wired for PC
- Full duplex microphone array speakerphone
- Two omnidirectional microphones support 360° pickup
- Full duplex echo cancellation
- Advanced noise suppression
- Powerful wideband voice processing
- Speaker volume: adjustable to 90 dB SPL at 0.5 m
- 3.5 mm line-in (aux) cable connects BYOD smartphones or PCs to use as speakerphones
- Touch controls for volume adjustment, mute, phone input, call, and hang up
- Can bridge phone-in and USB into one call
- Kensington lock
-
- HDMI & PoE
-
- HDMI 1.3: 1080p 30fps/ 60fps
- PoE+: 802.3at
-
- Video Format
-
- YUV, YUY2, MJPEG
- Network video compression format : H.264, H.265
- Network protocol : RTSP, RTMP
-
- USB
-
- 3.1 Gen 1, backward compatible with USB 2.0
- UVC 1.1 (USB video), UVC1.5*
-
- Control
- Camera
- IR remote control
- VISCA/pelco P/pelco D via RS232 (128 preset points via
- VISCA command)
- Remote side : VISCA over IP, IP (RJ45)
- UVC plug and play
- WebUI : Browser IP access via Chrome (Not support IE)
- OSD setting : HDMI out to TV monitor
- PTZApp 2 Support
Speakerphone
- UAC, plug and play
- WebUI : Browser IP access via Chrome (Not support IE)
- PTZApp 2 Support
-
- Power Supply
- Camera
- AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
- PoE+ : 802.3at
Speakerphone
- AC 100V to 240V, 50/60 Hz
- Consumption : 12V, 5A
-
-
Free Applications for Meeting Collaboration (For Windows® and Mac® computers)
- EZManager 2 : Camera Central Management Software
- Remotely group FW/SW upgrades, control the camera, and manage settings
PTZApp 2 : Camera Settings Software
- Smart gallery/Virtual USB streaming/Preset Link
- View live video, participant metrics, and meeting-interval information
- Enable Skype for Business far-end control
- Upgrade firmware automatically/manually
- Control the camera
- Set parameters and adjust the camera image
- View operation status, diagnose issues
EZLive : Broadcasting Software
- Multi-camera real-time streaming, annotating, image capturing, and video recording
-
-
- Environment Data
-
- Operation temperature : 0 to 40°C
- Operation humidity : 20% to 80%
- Storage temperature : -20 to 60°C
- Storage humidity : 20% to 80% E
-
- Dimensions
-
- Package dimensions : 348(L)*251(W)*308(H) mm
- Package weight : 7.9kg
- Camera : 170.8(L) x 190.5 (H) x 173(D) mm/ 2.1kg
- Speakerphone : 220(L)x 49.5(D) x 181.5(H) mm/ 0.8kg
- Remote control : 200 x 50 x 21 mm/ 90g
-
- Innovative features
-
- Dynamic auto framing : secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically re-frame all participants.
- Preset framing tracks both preset area and speaker
- Simultaneous 3-way output: USB, HDMI and IP connections
- Gesture control provides intuitive camera controls
- HDMI Picture in Picture (PIP) function
- Smart gallery function creates great visibility
- Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology (One RJ45 cable transfers IP streaming to USB.)
- Audio tracking support : Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link*** function.
-
- Connectivity
- Camera
- USB type-B 3.1 connector, backward compatible with USB 2.0
- 12V/2A DC jack power adapter
- Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
- IP (RJ45)
- HDMI
Speakerphone
- USB2.0 Micro USB connector
- 12V/5A DC jack power adapter
- LAN for IP remote access
- Expansion port (daisy-chain speakerphone or microphone)
- 3.5 mm phone-in jack
- 3.5 mm line out
-
- Package Contents
-
- CAM550 unit
- FONE540 unit
- Power adapter x2
- Power cord x2
- USB3.1 Type-B to Type-A cable (3 m) for camera
- Micro USB 2.0 to Type-A cable (5 m) for speakerphone
- Remote control
- Mini DIN9 to mini DIN8 RS232 adapter cable
- HDMI cable (3 m)
- 3.5 mm aux cable
- Wall mount bracket and screws
- QR code card
- Tripod screw
-
- Optional Accessories
-
- Mini DIN8 to D-Sub9 cable
- Ceiling mount*
- Foldable TV mount
- USB 3.1 Extension Cable (10 m/20 m/30 m)
- Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
- Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
-
- Security and Mount
-
- Kensington lock
- 1/4″ tripod mounting screw
- Camera wall-mount bracket included
- Optional foldable TV mount
-
- System Requirements
-
- Windows® 7/10
- MacOS X 10.7 or later
- Google Chromebook version 29.0.1547.70 or higher
-
- Warranty
-
- Camera, Speakerphone : 3 years
- Accessories : 1 year
-
- Hardware Specs
-
- 3.2 GHz Intel Core i5-4460 processor
- 4 GB RAM or more
- USB 3.1 port, backward compatible with USB 2.0
-
- Compatible Applications
-
- Zoom, Microsoft Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel Unite, Fuze, Adobe Connect, CyberLink U Meeting, Cisco WebEx GoToMeeting, LiveOn, Microsoft Lync, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
