D-Link DAP-2230 Jeddah

Reviews

D-Link DAP-2230 Riyadh

The DAP-2230 Riyadh is equipped with a variety of advanced features including multiple operating modes, security features, and network management tools, making it a highly reliable and convenient device.

Category:
Ask for Quote & Get Low Price

Description

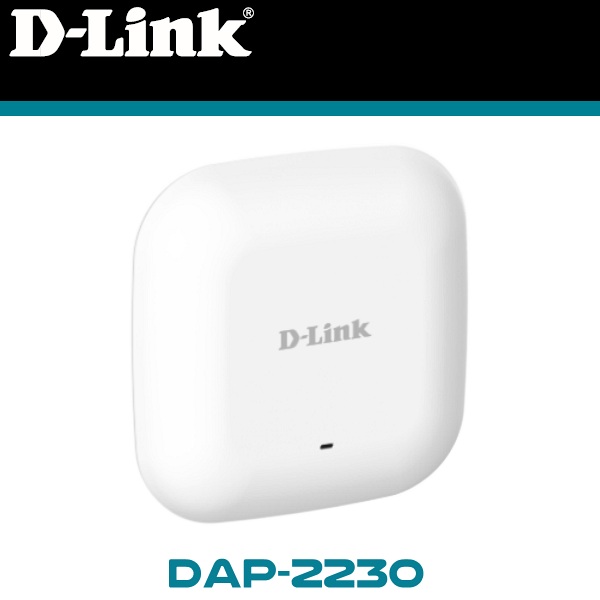

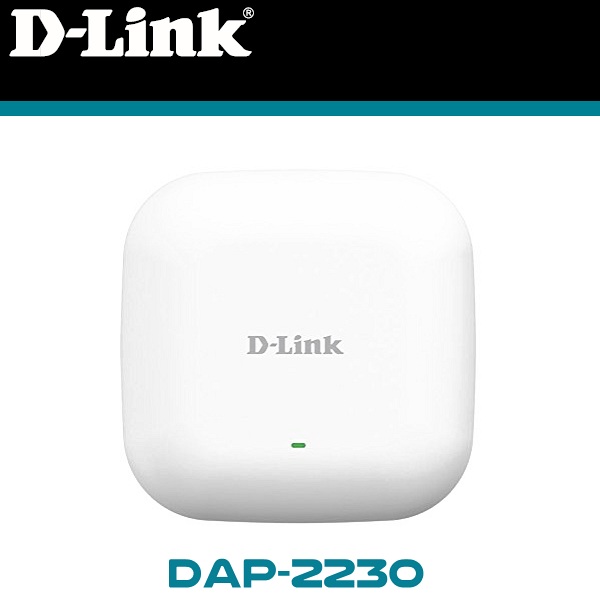

D-Link DAP-2230 Jeddah

The D-Link DAP-2230 Jeddah is a powerful Wireless N PoE Access Point which has been designed to serve the communication needs and requirements of small to medium business or business environments. It simply provides network administrators with secure and manageable dual-band wireless LAN options. The DAP-2230 Jeddah is equipped with a variety of advanced features including multiple operating modes, security features, and network management tools, making it a highly reliable and convenient device. It offers the easiest possible deployment process that requires no technical expertise of its user. D-Link DAP-2230 Jeddah is highly versatile and allows for the addition of wireless network-enabled devices.

General Features

  • Impressive Performance
    • The D-Link DAP-2230 Jeddah enables businesses to set up a a secure and manageable wireless network. Multiple operational modes, network management tools and security features give network administrators more flexible deployment options.
  • Flexible Deployment

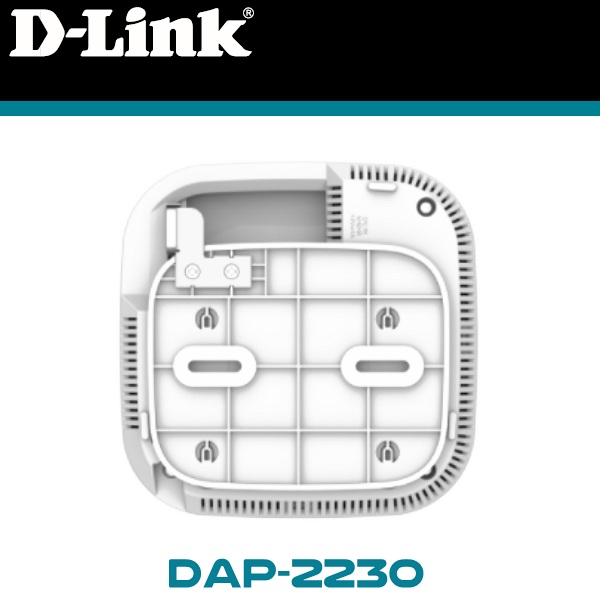

    • The D-Link DAP-2230 Jeddah comes in an elegant, compact design which can be mounted on walls and ceilings, or can be placed on a desktop to the preference of its users. For advanced installations, the D-Link DAP-2230 Jeddah has integrated 802.3af Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.
  • Green Design
    • The D-Link DAP-2230 Jeddah has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power.
  • 8 SSIDs Simultaneously
    • D-Link DAP-2230 Jeddah supports up to 8 SSIDs that can logically divide the access point into several virtual access points all within a single hardware platform.

Technical Specifications

General

Device Interfaces
• 802.11 b/g/n wireless
• 10/100 Mbps PoE LAN port (supports 802.3af PoE)

LED
• Power/Status

Standards
• IEEE 802.11b/g/n
• IEEE 802.3u/ab/af

Wireless Frequency Range
• 2.4 GHz band: 2.4 GHz to 2.4835 GHz

Antennas
• Two internal 3 dBi for 2.4 GHz

Maximum Output Power
• 20 dbm for 2.4GHz as per EU / CE Starndards

Functionality

Security
• WPA-Personal
• WPA-Enterprise
• WPA2-Personal
• WPA2-Enterprise
• WEP 64/128-bit encryption
• SSID broadcast disable
• MAC address access control
• Network Access Protection (NAP)

Network Management
• Telnet
• Secure Telnet (SSH)
• HTTP
• Secure HTTP (HTTPS)
• Traffic control
• SNMP
• AP Array
• D-Link Central WiFiManager

Physical and Environmental

Dimensions
• 129 x 129 x 29 mm

Weight
• 101.4 grams

Operating Voltage
• 12 V DC 1 A or 802.3af PoE

Maximum Power Consumption
• 5.76 watts

Temperature
• Operating: 32 to 104 °F (0 to 40 °C)
• Storage: -4 to 149 °F (-20 to 65 °C)

Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications
• FCC
• IC
• CE
• Wi-Fi
• UL
