Description

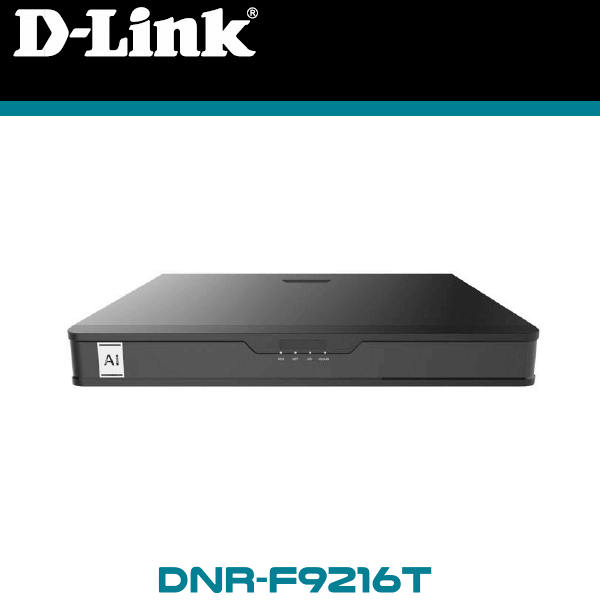

Dlink 16 Channel AI Network Video Recorder Jeddah

This Dlink 16 Channel AI Network Video Recorder Support Ultra H.265/H.265/H.264 video formats and 16-channel input also having the Support of 4-ch face recognition with face capture camera. This Dlink 16 Channel AI Network Video Recorder have1-ch face recognition with a non-face-capture camera
and can Up to 16 face libraries, the total capacity of 50000 face images. This Dlink 16 Channel AI Network Video Recorder will be possible to integrate Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T.The HDMI and VGA independent real outputs provided offered by the Up to 12 Megapixels resolution recording with 2 SATA HDDs, Up to 10TB for each HDD. The ANR technology enhances the storage reliability when the network is disconnected and Supports cloud upgrade for This Dlink 16 Channel AI Network Video Recorder.

Dlink DNR-F9216T 16 Channel AI NVR Key Features

• Support Ultra H.265/H.265/H.264 video formats
• 16-channel input
• Support 4-ch face recognition with face capture camera
• Support 1-ch face recognition with non-face-capture camera
• Up to 16 face libraries, total capacity of 50000 face images
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• HDMI and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• 2 SATA HDDs, Up to 10TB for each HDD
• ANR technology to enhance storage reliability when the network is disconnected
• Support cloud upgrade

Dlink DNR-F9216T 16 Channel AI NVR Specifications.

Video/Audio Input

• IP Video Input:16-ch
• Two-way Audio Input:1-ch, RCA

Network

• Incoming Bandwidth: 160Mbps
• Outgoing Bandwidth: 320Mbps
• Remote Users: 128
• Protocols: P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output
• HDMI/VGA Output: VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz and HDMI: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output: 1-ch, RCA
• Synchronous Playback: 16-ch
• Corridor Mode Screen: 3/4/5/7/9/10/12/16

Decoding

• Decoding format: Ultra 265, H.265, H.264
• Live view/Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability: 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1

Hard Disk

• SATA: 2 SATA interfaces
• Capacity: up to 10TB for each HDD Smart
• VCA Detection: Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
• VCA Search: Face search, Behavior search
• Statistical Analysis: People counting
• Face recognition, with face capture camera: 4-ch
• Face recognition, with normal camera: 1-ch
• Face library capacity: total capacity of 50000 Up to 16 face libraries

External Interface

• Network Interface :2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
• Serial Interface: 1 x RS485
• USB Interface Rear panel: 1 x USB3.0, 1 x USB2.0
• Alarm In : 8-ch
• Alarm Out : 2-ch

General

• Power Supply: 12V DC and Power Consumption: ≤ 7.5 W (without HDD)
• Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (noncondensing)
• Dimensions (W×D×H) : 380mm ×315mm× 53mm (14.9″ × 12.3″× 2.1″)
• Weight (without HDD) : ≤ 2Kg (4.41lb)
