Description

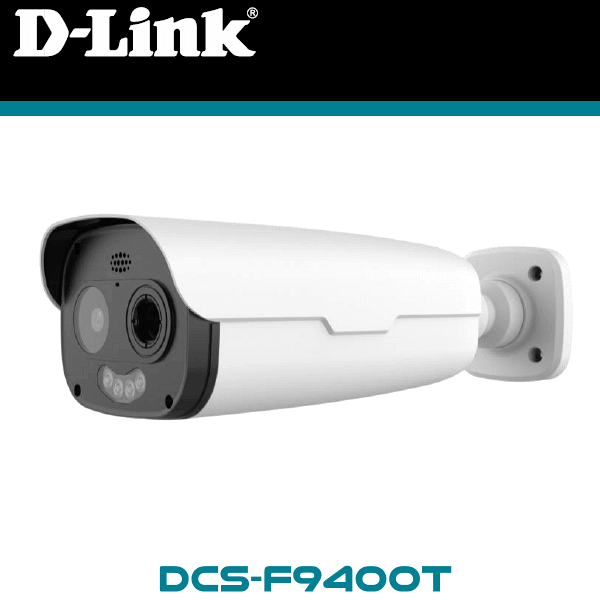

Dlink DCS-F9400T 4MP Thermal Dual-spectrum Bullet Network Camera Jeddah
Dlink DCS-F9400T Thermographic Bullet Body Temperature Measurement Camera system not only detects body temperature but also associates temperature to a specific person by face recognition Dlink Thermographic Bullet Body Temperature Measurement Camera is suitable for schools, companies, and other scenarios.is able to measure the object’s temperature at high accuracy in real-time. Dlink Thermographic Bullet Body Temperature Measurement Camera is capable to discover and track people with higher body temperature among the crowded public area. Dlink Thermographic Bullet Body Temperature Measurement Camera can be widely used in places such as customs, airports, schools, and hospitals for inspection and quarantine.
Dlink Thermographic Bullet Body Temperature Measurement Camera is Efficient, Visible, Real-TimeThermal Temperature Monitoring Solution and Thermal Temperature Monitoring Solution is capable of identifying individuals with an elevated temperature. Measures internal body temperature from the eye’s inner canthus. For best results, deploy a stanchion and remove glasses and head accessories. Dlink thermal camera bundle Jeddah counts the number of customers inside in real-time. When the number of people exceeds the threshold set by the user,it will remind people to wait outside. Avoid close and physical contact to reduce the risk of cross-infection between staff and customers. When the physical distance between two people is less than the preset value, the system will automatically remind the staff to act accordingly.
Dlink 4MP Bullet Network Camera Features.
- Thermal & Optical dual-spectrum image, dual video with a single IP address, adaptable to more various scenes
- Starlight illumination
- Support human body temperature measurement which should be used with blackbody
- Support face detection
- Support mask and human body temperature attribute collection
- Support alarm when no mask and abnormal temperature are detected
- Support audio and light alarm
- Support Ultra 265, H.265, H.264, MJPEG,Triple streams, Max 2688*1520@60fps in the optical module, Max 720P@25fps in the thermal module
- ONVIF Conformance
- Support DC12V or PoE power supply, Wide voltage range of ±25% in DC, Micro SD, up to 256 GB, Alarm 2 in and 2 out, Audio 1 in and 1 out
Dlink 4MP Bullet Network Camera Specifications.
Optical Module
- Sensor: 1/1.8″, 4.0 megapixel, progressive scan, CMOS
- Lens: 6mm@F1.6,
- Iris: Auto aperture
- Angle of View (H): 56.1°
- Frame Rate:MP(2688*1520), Max 60fps
- Shutter Auto/Manual, 1 ~ 1/100000s
- Min. Illumination:Colour:0.001lux (F1.6, AGC ON) ,0 lux with IR
- WDR:120dB
- Day/Night:IR-cut filter with auto switch (ICR)
- IR Range:Up to 50m (164 ft) IR range
- Wavelength:850nm
- IR On/Off Control:Auto/Manual
- HLC:Supported
- BLC:Supported
Thermal Module
- Sensor type:Vanadium Oxide Uncooled Focal Plane Arrays
- Max. Resolution:384*288
- Angle of View (H):39.0°
- Frame Rate:720P(1280*720), Max 25fps
- Response waveband:8~14μm
- Pixel size:17μm
- IFOV:1.75mrad
- NETD:≤50mk @ f1.0
- Lens(focal length):9.7mm
- Palette:Up to 20 palettes of optional color, including white-hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain
Temperature Measurement Accuracy
- Temperature range:30°C~45°C
- Temperature accuracy:±0.3℃（with blackbody）, without blackbody is not supported
- Temperature distance:3~6 M
- Temperature measurement working environment: 16°C~32°C
Smart
- Human body Temperature measurement: Support human body temperature measurement when OSD displays the temperature on the body surface or inside Support human body temperature measurement alarm, and set alarm threshold temperature
- Audio and light alarm: Support audio and light warning function, with red and blue warning lights built in
- Face detection:Optical camera support face detection
- Attribute collection:Support mask and human body temperature attribute collection
- Alarm:Support alarm when no mask and abnormal temperature are detected
- General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Video
- Compression:Ultra265, H.265, H.264, MJPEG
- Video Stream:Triple streams
- OSD:Up to 8 OSDs
- Privacy Mask:Up to 8 areas(8 blacks)
Audio
- Audio Compression:G.711U,G.711A
- Two-way audio:Supported, Built in mic and speakers
Sampling Rate:8KHZ
Storage
- Edge Storage:Micro SD, up to 256 GB
- Network Storage:ANR,NAS(NFS)
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
- Compatible Integration:ONVIF (Profile S, Profile G, Profile T), API
- Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below and Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
- Audio I/O: udio cable , 1 Input: impedance 35kΩ; amplitude 2V [p-p],1 output: impedance 600Ω; amplitude 2V [p-p]
- Alarm I/O:2/2
- Serial Port:1 RS485
- Network:1 x RJ45 10M/100M Base-TX Ethernet
General
- Power:DC12V(±25%), PoE+(IEEE802.3at) ,Power consumption: Max 11W and Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection
- Dimensions (Ø x H):Φ395.2mmx137.0mmx112.0mm(Φ15.6’’x5.4’’x4.4’’)
- Net Weight:3.5kg(7.7lb)
- Installation method: Tripod
