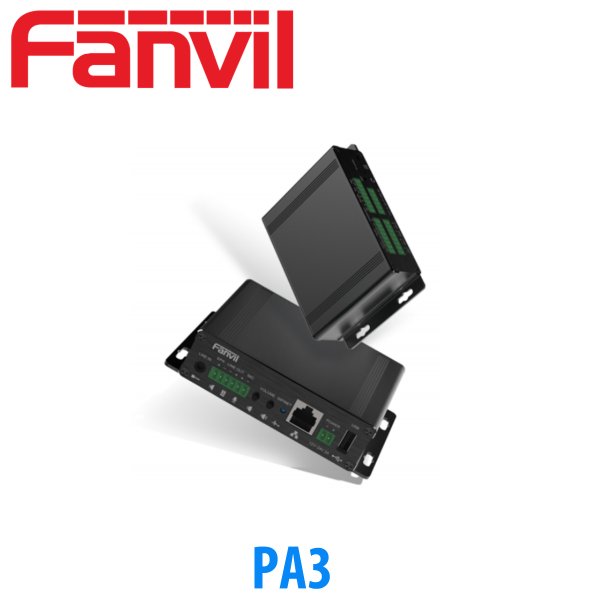

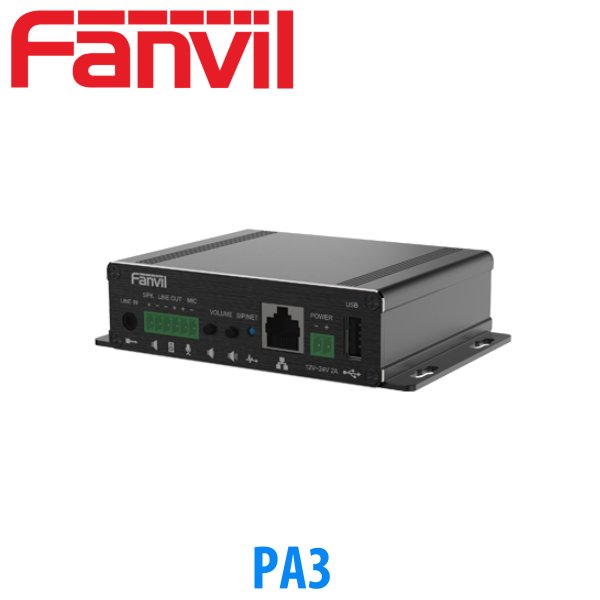

Fanvil PA3 SIP Paging Gateway Jeddah
Fanvil PA3 SIP Paging Gateway Jeddah is designed to allow for every kind of internal installation, majorly public broadcasting. It is equipped with HD audio which delivers outstanding audio clarity to its users. The high-performing Paging Gateway is packed with many advanced features which enhance the general communication experience of its users. The Fanvil PA3 can not only be used for real-time & fix-time MP3 broadcasting but can also be used for a one-touch intercom when connecting to external devices. Fanvil PA3 is your perfect choice to DIY the integrated broadcasting solution for the campus, shopping mall, railway station, building, etc.
Other features of the robust paging gateway include 2 SIP lines, 1 Blue LED status indicator light to notify you of different modes of the device, a 10/100Mbps Gigabit Ethernet port that is integrated with Power over Ethernet(PoE), and many others. The Fanvil PA3 SIP Paging Gateway Jeddah supports desktop as well as wall mounting for easy installation.
Fanvil PA3 SIP Paging Gateway Jeddah Features:
- 2 SIP Lines
- 1 Speaker Interface and 1 Microphone Interface
- 1 Audio in and 1 Audio out Interface
- Support the USB or TF card Connectivity Max to 32G
- 2 Interfaces of Programmable Keys with Indicator Light
- 1 Blue LED Status Indicator Light
- Support PoE (Class 4)
- Support Desktop and Wall-mounted Mode
- HD Audio
- For Public Broadcasting with Wideband codec G.722 and Opus, Fanvil PA3 brings the users a crystal-clear telecom auditory experience.
- Perfect Choice for Secondary Development
- The Fanvil PA3 is equipped with several rich interfaces which enable you to turn your Paging Gateway into a broadcasting device, amplifier, and intercom, therefore meeting different communication requirements.
- Achieve the Real-time and Fix-time Broadcasting
- Connected to the USB or TF card max to 32G, Fanvil PA3 can be used to do the MP3 offline local broadcast as well as the online broadcast.
- Video Linkage with IP Camera
- Users can view the HD video image of the camera on the IP phone through Fanvil PA3, for monitoring the surrounding situation in real-time.
- Tiny Design for Limited Space
- Small and stylish, Fanvil PA3 is suitable for the limited space in most application scenarios.
Fanvil PA3 Technical Specifications
Generic
- 2 SIP Lines
- Speed dial
- Linkage with IP camera to realize video intercom
- Oral announcement of the IP address(in English)
- MP3 broadcasting
- Support programmable DSS key ports
- Support mono active speaker
- Support audio line-in
- Support TF card and USB flash drive
- PoE enabled
Device Functions
- Auto-answering
- Programmable DSS keys
- Through button or web page volume adjustment
- Network time synchronization
- Dynamic multicast function
- Support recording (through USB flash drive or server)
- Action URL/Action URI
Call Functions
- Call out/answer/reject
- Call waiting
- Intercom, Multicast
- Speed dial
- Anonymous call (Hide caller ID)
- Call parking/pick-up (depending on the server)
Audio
- Narrowband codec: G.711A/U, G.729A/B
- Wideband codec: G.722, Opus
- Full-duplex hands-free speakerphone with AEC
- DTMF: In-band, Out-of-Band (RFC2833/SIP INFO)
Network
- Physical: 10/100 Mbps Ethernet
- IP mode: IPv4/IPv6/IPv4&IPv6
- IP configuration: Static IP/DHCP/PPPoE
- VPN: L2TP/OpenVPN
Protocols
- SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- PPPoE
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Management
- Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
- Web management portal
- Web-based packet dump
- Configuration export/import
- Firmware upgrade
- Syslog
Physical Specifications
-
- Keypad: 3 keys, including
– 2 volume control keys (up/down)
– 1 reset key (soft reset) - DC port x1: DC power input
– Port: 2 Pin terminal socket - RJ45 port x1: connect the network
– PoE enabled - Blue LED x1: (SIP status and network status)
- Line in port x1: connect audio line input
– Port: 3.5mm standard audio port - Line out port x1: connect the active speaker
– Out: adjustable by volume, max up to 1.2Vpp
– Port: terminal socket - MIC in port x1: connect the MIC
– Electret condenser MIC is recommended
– Sensitivity: -38dB, impedance 2.2k ohm, bias voltage 2.54Vpp
– Port: terminal socket - Passive speaker port x1: connect the speaker
– Output power: 4Ω, PoE/10W, 12V/10W, 18V/20W, 24V/30W; related to power supply voltage.
– Wire diameter: 18AWG or higher.
– Port: terminal socket - DSS keys port x2: connect the external buttons (support LED)
– LED: Output 5.0Vdc/5mA.
– Port: 8 pin terminal socket - TF card slot x1: connect TF card
- USB 2.0 port x1: Connect USB flash drive, broadcast local audio files.
- DC power input: DC12V~24V/2A
- PoE level: Class 4
- Working temperature: -20C~50C
- Storage temperature: -30C~60C
- Working humidity: 10~95%
- Installation: Desktop stand/ Wall-mounted
- Colour: black
- Device dimensions: 125×84.2x31mm
- Gift box dimensions: 147x114x58mm
- Outer CTN dimensions: 310x248x322mm (20pcs)
