Description

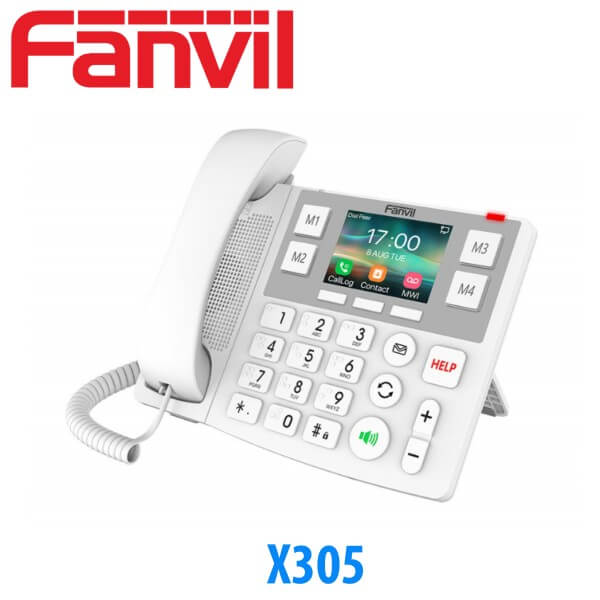

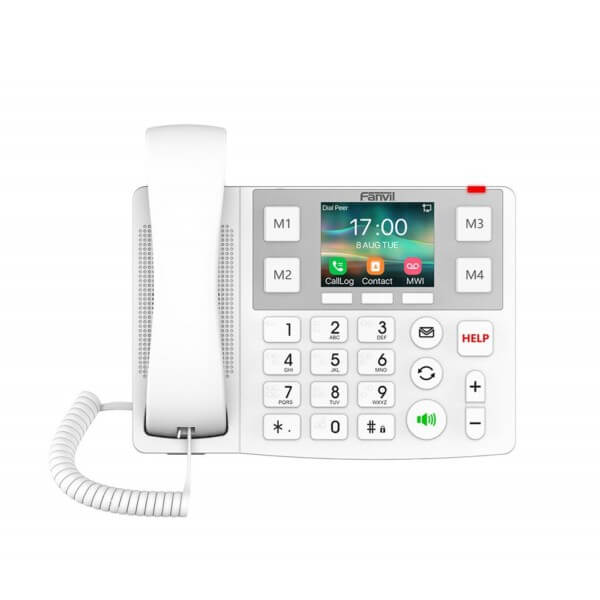

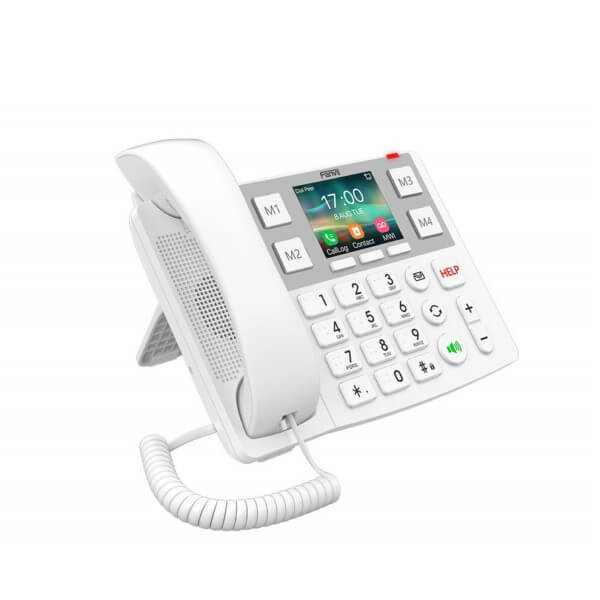

Fanvil X305 IP Phone Jeddah

The Fanvil X305 Jeddah stands out as an impressive big button IP phone tailor-made for various environments, including nursing homes, hospitals, and similar settings where ease of use is paramount. Boasting a spacious 3.5-inch color screen and prominently sized buttons, the Fanvil X305 Jeddah is intuitively designed to cater to the needs of seniors and individuals requiring clear, accessible communication tools.Equipped with the capability to support 2 SIP lines and powered by PoE (Power over Ethernet), the X305 ensures a seamless and hassle-free user experience. Its inclusion of built-in 2.4GHz & 5GHz Wi-Fi expands connectivity options, while the support for 433MHz wireless buttons further enhances its versatility and functionality.

What sets the Fanvil X305 Jeddah apart is its commitment to delivering not only convenience but also efficiency and quality in communication. By integrating advanced features like dual-band Wi-Fi and support for wireless buttons, the X305 addresses the unique requirements of senior users, facilitating smooth and reliable communication channels in environments where clarity and accessibility are paramount.In essence, the Fanvil X305 Jeddah emerges as a reliable and comprehensive solution, empowering users with its blend of user-friendly design and cutting-edge technology, thereby fostering enhanced communication experiences in diverse settings.

Highlights

  • 3.5-inch(320×240)color screen
  • 10-digit keys with Braille dots to meet special needs
  • Support 433 MHz wireless buttons (Fanvil KT 1x/2x/3x Series)
  • Four speed dial buttons, support image customization
  • Support HD audio, with adjustable volume key
  • Built-in bluetooth 4.2 and 2.4GHz/5GHz Wi-Fi
  • Hearing Aid compatible (HAC)
  • Dual Gigabit ports, integrated PoE
  • Desktop / wall-mounted installation

Generic

  • 2 SIP Lines
  • HD Voice
  • PoE Enabled
  • 3.5-inch color screen
  • DSS keys (support image customization)
  • Handset / Hands-free / Headset mode
  • Optional External Power Supply

Phone Functions

  • Local Phonebook (1000 entries)
  • Remote Phonebook (XML/LDAP, 1000 entries)
  • Call logs (In/Out/Missed, 600 entries)
  • Black/White List Call Filter
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Support Bluetooth 4.2
  • Built-in Wi-Fi
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
  • Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support 433MHz wireless buttons (Fanvil KT 1x/2x/3x Series)
  • Support Recording (Through Server & Flash Driver)
  • Action URL / Active URI
  • uaCSTA

Call Functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (With server or flash driver)
  • Hot Line
  • Hot desking

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec : G.711a/u, G.723.1, G.726, G.729A/B, iLBC
  • Wideband Codec : G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)
  • VQM : voice quality monitoring
  • Support sidetone

Network

  • Physical : 10/100/1000Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode : IPv4/IPv6/IPv4&IPv6
  • IP Configuration : Static IP / DHCP / PPPoE
  • Network Access Control : 802.1x
  • Wi-Fi Encryption : WPA/WPA2-PSK /802.X EAP
  • VPN : L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
  • AES128 & AES256

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
  • PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • LCD : 3.5-inch (320×240) Color Screen
  • Up to 10 wireless emergency buttons supported
  • 433 wireless emergency buttons specification:
  • communication mode:FSK
  • working frequency:433MHZ
  • communication protocol:Ebelong1.1

Keypad :

  • 4 DSS keys
  • 3 Soft-keys
  • 3 Function keys (MWI, Redial, HELP)
  • 10 Standard Phone Digit keys
  • 2 Volume Control keys (Up/Down)
  • 1 Hands-free key
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset cord x1
  • 1.5M CAT.5E Ethernet cable x1
  • Back Rack x1
  • Status Indicator Light x1 (Red)
  • RJ9 Port x2 : Handset x1, Headset x1
  • RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
  • USB2.0 Port x1 : Standard A, connect with flash driver & USBheadset
  • Security Slot x1
  • DC Power Input : DC5V / 2A
  • Power Consumption (PoE) : 1.65W~9.07W
  • Power Consumption (Adapter) : 1.09W~6.76W
  • Working Temperature : 0~45℃
  • Working Humidity : 10~95%

Installation :

  • Desktop Stand
  • Wall-mounted (optional)
  • Color : white
  • N.W/CTN : 12.1 kg
  • G.W/CTN : 12.7 kg

Device Dimensions :

  • Desktop Stand (Angles 1 : 45 degree) : 236×157.4×162.4mm
  • Desktop Stand (Angles 2 : 55 degree) : 236×142.3x179mm
  • Wall-mounted : 236×98.9×204.2mm
  • Gift Box Dimensions : 340x195x72mm
  • Outer CTN Dimensions : 410x385x360mm (10 PCS)
