Description

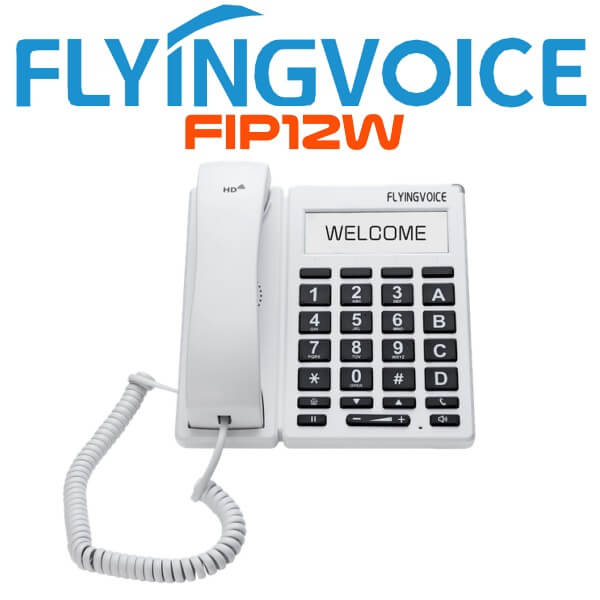

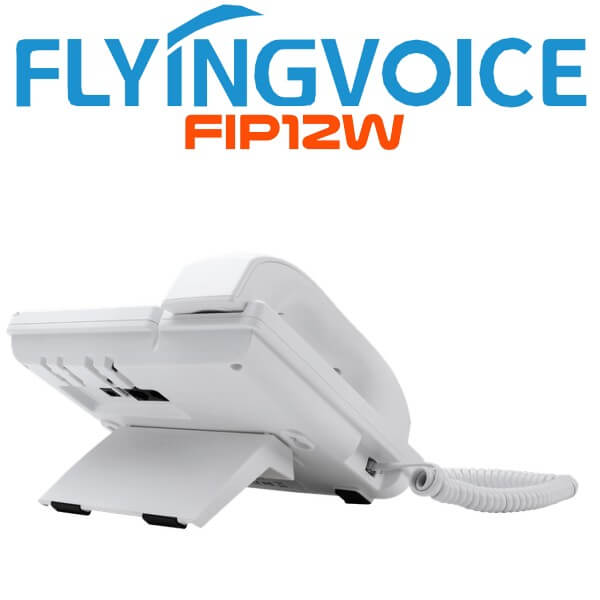

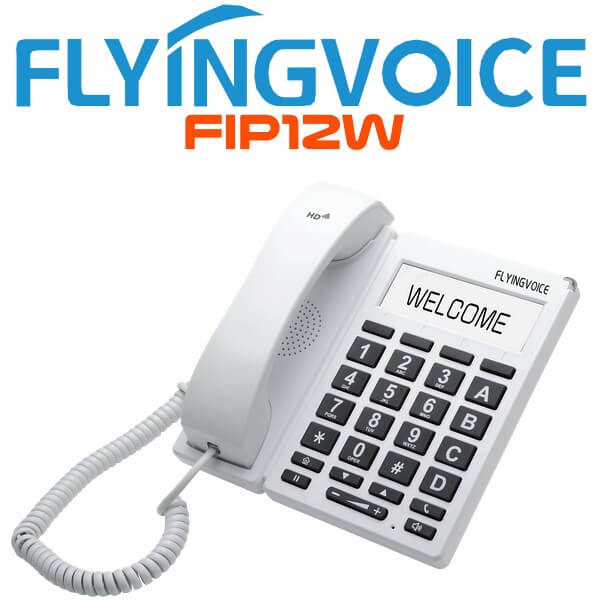

Flyingvoice FIP12W IP Phone Jeddah
Flyingvoice FIP12W IP Phone is an IP phone which has a big button and is beneficial for the old man, The built-in internal antenna makes user connect the network much easier and more quickly, the user will connect Flyingvoice FIP12W IP Phone Jeddah to the wireless network, the performance is that the same as portable. Users can connect the wireless network on Flyingvoice FIP12W IP Phone’s LCD or on the phone’s webpage. Flyingvoice FIP12W Wireless IP Phone Jeddah excellent HD HD voice quality, rich and vanguard telephony system functions to supply users with personalized information customization, support automatic deployment, advanced security protection mechanism.compatible with a good range of mainstream industry SIP/IM S platform. The Flyingvoice FIP12W VoIP Phone will not support PoE (But optional model Flyingvoice FIP12WP VoIP Phone support PoE)
Flyingvoice FIP12W IP Phone Features
- Support TR069 And Auto Provision
- 5 Graphic LCD
- 4G Wireless(Optional)
- 10/100Mbps Ethernet,(will not Support PoE)
Flyingvoice FIP12W IP Phone Specifications
VoIP SoC:CPU: MIPS 580Mhz
Flash : 16MB Flash
RAM :32MB SDRAM
Power: AC/DC Adapter
AC Input: 100~240V, 50~60Hz
DC Output: 5V, 1A
Operating System
- Linux 2.6.36
I/O Interfaces
- 1xRJ9 Handle
- 1xRJ9 Earphone Jack
- 2xRJ45 Ports (Ethernet 10/100 Base-T)
- Support Wireless,2T2R, 11n(Optional)
Environmental
- Operation Temperature: 0~50 Degree C
- Storage Temperature: -25~ 85 Degree C
- Relative Humidity: 10%~90% No Condensing
Audio Feature
- G.711(A/u)
- G.722(HD)
- G.729AB
- G.723
- G.726
- iLBC
- Adaptive Jitter Buffer
- Voice Activity Detection
- Comfort Noise Generation
- Echo Cancellation
Phone Keys
- 7 Function Keys:MENU, MUTE ,SMS, HOLD,Volume+/-
- 12 Dialing Buttons (0~9, *, #)
- 4 speed dial key
- 4 Soft Keys
Protocols
- SIP V2 (RFC 3261,3262,3263,3264)
- RTP/RTCP (RFC 1889 And RFC 1890)
- NAPTR For SIP URI Lookup (RFC 2915)
- STUN (RFC 3489)
- SDP (RFC 2327)
- ARP/RARP (RFC 826/903)
- SNTP (RFC 2030)
- TFTP/HTTP/HTTPS for Auto Provisioning
- NS/DNS SRV (RFC 1706 And RFC 2782)
- 1Q VLAN/802.1p/DSCP
- TR069(TR104/TR098/TR111)
- SNMPv2
Phone Feature
- Customized Ring Tone
- SMS (100 Records)
- Call History ( 100 Records ) Most Recently Missed Calls Most Recently Received Calls Most Recently Dialed Numbers
- Phone Book (500 Records )
Management
- Firmware Upgradeable
- Web Management Interface
- Password Management
- Local and Remote Syslog (RFC 3164)
- Auto Provisioning: TFTP, HTTP And HTTPS
- SNTP Time Synchronization
- Multi User Level
- Support TR069 Management Mode
- Support Flying FCMS Cloud Management
Call Features
- DTMF Relay: In-band,RFC 2833 and SIP info
- Volume adjustment:Handset,Handfree,Speaker and Ring
- Call Hold, Call Transfer And Call Waiting
- CID And CWCID
- Music ON Hold
- MWI
- 3 Way Conference
- Auto Answer
- Call Pickup
- Full-duplex Speakerphone
- Dial Rule
- Hotline
- Redial
- Mute
- Call Forward
Applications
- SMS Funcation
- MAC Address Clone
- SIP Proxy Redundancy
- DHCP Server and DHCP Client
- Support Mutil-Vlan
- DNS SRV
- Direct IP to IP Calling
- IP Conflict Detection
- Traversal By STUN
- VPN:PPTP, l2TP and OpenVPN
- Support DSCP and 1p QoS
