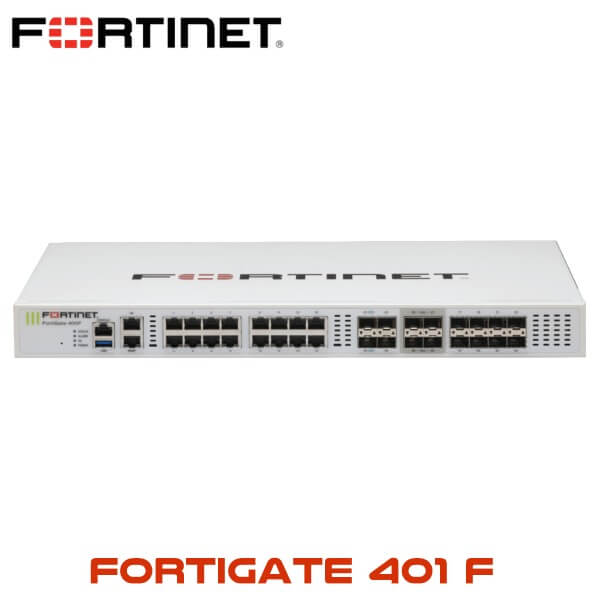

Fortigate401F Firewall Jeddah
The Fortigate401F Jeddah Next-Generation Firewall (NGFW) harnesses the power of artificial intelligence (AI) and machine learning to deliver robust defense against threats of all scales. Enhance your network’s visibility, enabling proactive identification of applications, users, and devices before they pose a risk. With an integrated security fabric platform that incorporates advanced AI and machine learning capabilities, the Fortigate401F Jeddah provides extensive, intelligent, and automated security for your network. Ensure comprehensive protection for your network, covering web, content, and device security with cutting-edge defenses. Furthermore, simplify the complexity and reduce risks in hybrid IT networks through network segmentation and secure SD-WAN. The Universal Zero Trust Network Access (ZTNA) guarantees controlled, verified, and streamlined user access to applications, reducing the risk of lateral threats by granting access exclusively to authenticated users. Enjoy lightning-fast threat protection and SSL inspection at the network edge without compromising performance, thanks to the Fortigate401F Jeddah.
Fortigate401F Jeddah Highlights
- Gartner Magic Quadrant Leader for both Network Firewalls and WAN Edge Infrastructure.
- Security-Driven Networking FortiOS delivers converged networking and security.
- State-of-the-Art Unparalleled Performance with Fortinet’s patented / SPU / vSPU processors.
- Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
- Deep Visibility into applications, users, and devices beyond traditional firewall techniques
Hardware Features
Trusted Platform Module (TPM)
The Fortigate401F Jeddah features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
| Interfaces and Modules | |
| Hardware Accelerated GE RJ45 Interfaces | 16 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 10GE SFP+ Slots | 4 |
| Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots | 4 |
| GE RJ45 Management Ports | 2 |
| USB Ports | 1 |
| RJ45 Console Port | 1 |
| Onboard Storage | 2x 480 GB SSD |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 12 Gbps |
| NGFW Throughput 2, 4 | 10 Gbps |
| Threat Protection Throughput 2, 5 | 9 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 79.5 / 78.5 / 70 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 79.5 / 78.5 / 70 Gbps |
| Firewall Latency (64 byte, UDP) | 4.19 μs / 2.5 μs* |
| Firewall Throughput (Packet per Second) | 105 Mpps |
| Concurrent Sessions (TCP) | 7.8 Million |
| New Sessions/Second (TCP) | 500 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) 1 | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 50 000 |
| SSL-VPN Throughput 6 | 3.6 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 8 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 6000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 800 000 |
| Application Control Throughput (HTTP 64K) 2 | 28 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 72 |
| Maximum Number of FortiAPs (Total / Tunnel) | 512 / 256 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
