Description

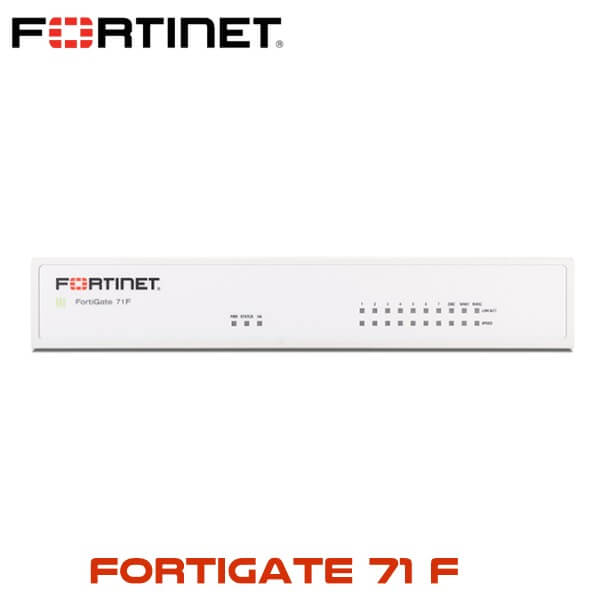

Fortigate71F Firewall Jeddah
The FortiGate Next-Generation Firewall Fortigate71F Jeddah is an ideal choice for establishing secure networks in distributed enterprise locations and modernizing WAN infrastructure of any scale. It boasts an extensive range of AI/ML-driven FortiGuard security services and seamlessly integrates with our Security Fabric platform. This synergy offers synchronized, automated, and comprehensive protection against threats in various scenarios.
It’s worth mentioning that FortiGate leads the industry by providing integrated SD-WAN and zero-trust network access (ZTNA) enforcement within a single Next-Generation Firewall (NGFW) solution, all running on a unified operating system. The Fortigate71F Jeddah efficiently manages user access to applications, ensuring consistent and smooth user experiences while optimizing performance.
Fortigate71F Jeddah Highlights
- Gartner Magic Quadrant Leader for both Network Firewalls and SD-WAN.
- Security-Driven Networking with FortiOS delivers converged networking and security.
- Unparalleled Performance with Fortinet’s patented SoC processors.
- Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
- Simplified Operations with centralized management for networking and security, automation, deep analytics, and self-healing.
Powered by Security Processing Unit (SPU)
Traditional firewalls cannot protect against today’s content- and connection-based threats because they rely on off-the-shelf hardware and general-purpose CPUs, causing a dangerous performance gap. Fortinet’s Fortigate71F Jeddah custom SPU processors deliver the power you need—up to 520Gbps—to detect emerging threats and block malicious content while ensuring your network security solution does not become a performance bottleneck.
Secure SD-WAN ASIC SOC4
- Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
- Delivers industry’s fastest application identification and steering for efficient business operations
- Accelerates IPsec VPN performance for best user experience on direct internet access
- Enables best of breed NGFW Security and Deep SSL Inspection with high performance
- Extends security to access layer to enable SD-Branch transformation with accelerated and integrated switch and access point connectivity
Hardware Features
Compact and Reliable Form Factor
Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight, yet highly reliable with a superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
Hardware Specifications | |
GE RJ45 WAN / DMZ Ports | 2 / 1 |
GE RJ45 Internal Ports | 5 |
GE RJ45 FortiLink Ports (Default) | 2 |
Wireless Interface | – |
USB Ports | 1 |
Console (RJ45) | 1 |
Internal Storage | 1 x 128 GB SSD |
Trusted Platform Module (TPM) | No |
Bluetooth Low Energy (BLE) | No |
System Performance* — Enterprise Traffic Mix | |
IPS Throughput 2 | 1.4 Gbps |
NGFW Throughput 2, 4 | 1 Gbps |
Threat Protection Throughput 2, 5 | 800 Mbps |
System Performance and Capacity | |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
Firewall Latency (64 byte UDP packets) | 2.54 μs |
Firewall Throughput (Packets Per Second) | 9 Mpps |
Concurrent Sessions (TCP) | 1.5 M |
New Sessions/Second (TCP) | 35 000 |
Firewall Policies | 5000 |
IPsec VPN Throughput (512 byte) 1 | 6.1 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 500 |
SSL-VPN Throughput 6 | 405 Mbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 700 Mbps |
SSL Inspection CPS (IPS, avg. HTTPS) 3 | 500 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 100 000 |
Application Control Throughput (HTTP 64K) 2 | 1.8 Gbps |
CAPWAP Throughput (HTTP 64K) | 8.5 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 24 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
Maximum Number of FortiTokens | 500 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
