Description

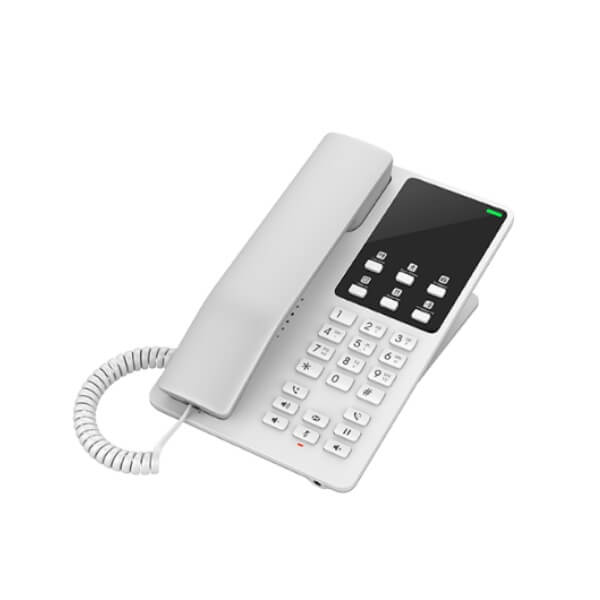

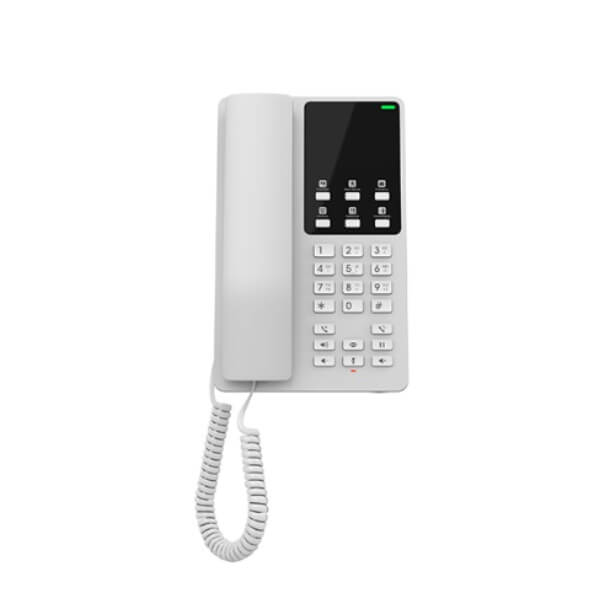

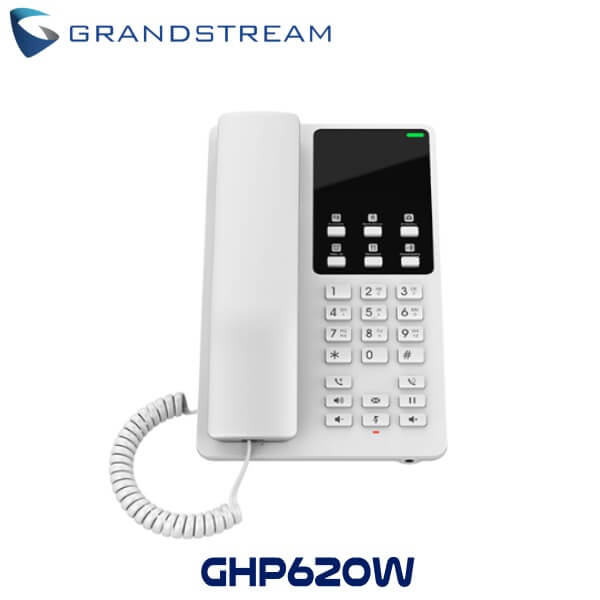

Grandstream GHP620W IP Phone Jeddah

The Grandstream GHP620W Jeddah is an easy-to-use IP phone for any hotel room that can be programmed and customized based on the needs of hotels and their guests. It is equipped with integrated dual-band Wi-Fi to support wireless deployments. This Series features an HD speaker, 2 SIP accounts/lines, 6 programmable keys, 10-speed dial keys, 3-way voice conferencing, supports the full-band OPUS voice codec, and provides an advanced jitter resilience algorithm that tolerates up to 30% packet loss without impacting voice quality. The Grandstream GHP620W Jeddah is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. GHP series IP phones can be installed on desktop or wall-mounted and can be powered by PoE (GHP620/GHP621), power adapter (GHP620W/GHP621W), and USB Type-C charger. Thanks to a sleek and compact design, the GHP620/GHP620W and GHP621/GHP621W are the ideal fit for not only hotels but also apartments, dormitories, hospitals, retail, and much more.

Features

Possibility of central administration

The Grandstream GHP620W Jeddah IP phone supports the Grandstream Device Management System (GDMS), which provides a centralized system of interfaces for configuring, provisioning, managing and monitoring the deployment of Grandstream endpoints.

A rich range of functions

This Grandstream GHP620W Jeddah IP phone supports, among others:

• 2 SIP accounts, 2 lines
• Three-way audio conference
• Professional level security including secure boot, dual firmware, encrypted storage

Key properties

• Quality IP phone for professional use
• Suitable for accommodation facilities
• Grandstream GHP620W Jeddah can be placed on a table or wall
• Features and equipment: HD speaker on receiver, 2 SIP accounts/lines, 3 programmable buttons, 10 speed dial buttons, 3-way voice conference, Opus voice codec, HAC (compatibility with selected hearing aids).
• Interface: WiFi ac dual band, USB-C port for charging compatible devices

Technical Specs

• SIP : SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP
• Network : IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, SSH, TFTP,
  NTP, STUN, LLDP, TR-069, 802.1x
• Network Interfaces One auto-negotiation : 10/100 Mbps ethernet port integrated PoE Class 2 (GHP620/GHP621)
  Wi-Fi GHP620W/GHP621W integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac
• SIP : SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP
• Network : IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, SSH, TFTP,
  NTP, STUN, LLDP, TR-069, 802.1x
• Network Interfaces One auto-negotiation : 10/100 Mbps ethernet port integrated PoE Class 2 (GHP620/GHP621)
  Wi-Fi GHP620W/GHP621W integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac
• Feature Keys
  • 26 keys, including :
  • 6 programmable keys;
  • 12 Standard Phone Digits keys (0-9 : speed dial keys configuration on web page, * , #);
  • 5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold);
  • 3 Volume Control keys, Up/Down/Mute (with red color LED)
• HD Audio : One HD handset support for wide band audio
• Voice Conferencing : 2 SIP accounts and lines, up to 3-way conference
• Voice Codecs and Capabilities : Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, full band Opus, Inband and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB
• Telephony Features : Dial, Answer, Redial, Flash ,Hands-free, Voice Mail(with the server), Transfer, Conference, Hold
  /Unhold, Mute /Unmute, flexible dial plan, Speed dial server redundancy & fail-over Call out
• Advanced Features
  • Support for multicast paging and E911 service.
  • Support GDS Door opening.
  • Support for advanced jitter-resilience algorithm.
  • USB USB Type-C port for charging external devices (500mA MAX)
• Wall Installation : 1 Wall Mountable Base
• QoS : Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security : Secure boot, random default password, unique security certificate per device, administrator
  level passwords, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access
  control
• Multi-language English and Chinese : Upgrade/Provisioning Firmware upgrade via FTP / TFTP / HTTP / HTTPS, fast boot in 15 seconds, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file
• Power & Green Energy Efficiency
  • Universal power adapter (GHP620W/GHP621W) :
  • Input : 100~240Vac 50~60Hz
  • Output : 12V/0.5A(6W)
• Temperature and Humidity
  • Operation : 0°C to 40°C
  • Storage : -10°C to 60°C
  • Humidity : 10% to 90% (Non-condensing)
• Package Content : GHP phone, handset with cord, Base Stand, universal power supply (GHP620W, GHP621W),
  faceplate, Quick Installation Guide
• Color : White (GHP620,GHP620W), Black (GHP621,GHP621W)
• Physical
  • 210mm(L)*132mm(W)*89.8mm(H) (with handset and base stand)
  • Unit weight : 560g (GHP620/GHP621), 610g (GHP620W/GHP621W US), 620g (GHP620W/
    GHP621W World)
  • Package weight : 860g (GHP620/GHP621), 910g (GHP620W/GHP621W US),920g (GHP620W/GHP621W World)
• GHP620 & GHP621 Compliance
  • FCC : Part 15 Subpart B, Class B; Part 68. 316/317.
  • CE : EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1.
  • UKCA : BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1.
  • RCM : AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004.
  • IC : ICES-003; CS-03 Part V.
• GHP620W & GHP621W Compliance
• FCC : Part 15 Subpart B, Class B; Part 15 Subpart C,15.247; Part 15 Subpart E,15.407; Part 68.
  316/317.
• CE : EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 301489-1\-
  17; ETSI EN 300 328; ETSI EN 301 893; EN IEC 62311.
• UKCA : BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1; ETSI
  EN 301489-1\-17; ETSI EN 300 328; ETSI EN 301 893; BS EN IEC 62311.
• RCM : AS/NZS CISPR32; AS/NZS 4268; AS/NZS 2772.2; AS/NZS 62368.1; AS/CA S004. 26 keys, including :
  6 programmable keys;
  • • 12 Standard Phone Digits keys (0-9 : speed dial keys configuration on web page, * , #);
    • 5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold);
    • 3 Volume Control keys, Up/Down/Mute (with red color LED
