Description

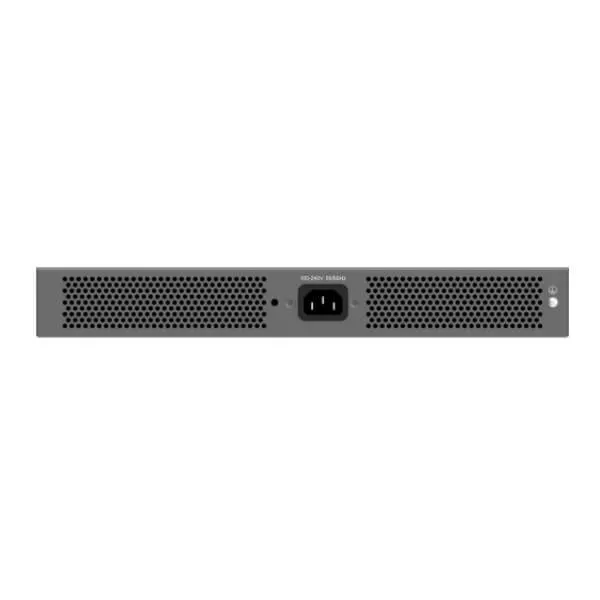

Grandstream GWN7801P Managed Network Switch Jeddah
The Grandstream GWN7801P Jeddah is a Layer 2 managed network switch that enables small and medium-sized businesses to build fully manageable, intelligent, secure and high-performance business networks. It supports advanced VLANs for flexible and sophisticated traffic segmentation, advanced QoS to prioritize network traffic, IGMP snooping to improve network performance, and comprehensive security features against potential attacks. The PoE model provides intelligent dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The Grandstream GWN7801P Jeddah can be managed in several ways, including a local web-based user interface for GWN7800 series switches. This series also supports Trendstream’s cloud and on-premises Wi-Fi management platforms, GWN.Cloud and GWN Manager. The enterprise-grade Grandstream GWN7801P Jeddah is a managed network switch ideal for small and medium-sized businesses.
Grandstream GWN7801P Features
Technical Specifications
- Model : GWN7801P
- Network Protocol :
- IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
- Gigabit Ethernet Ports : 8
- Gigabit SFP Ports : 2
- Console : 1
- Number of PoE Ports : 8
- Integrated Power Supply : 150W
- Max Output Power per PoE Port : 30W
- Max Total PoE Output Power : 120W
- PoE Standards : IEEE 802.3af/at
- Auxiliary Ports :
- 1x Reset Pinhole
- Forwarding Mode : Store-and-forward
- Total non-blocking throughput : 10Gbps
- Switching Capability : 20Gbps
- Forwarding Rate :
- 14.88M packets per second
- Packet Buffer : 4.1MB
- Switching :
- 8K static, dynamic and filtering MAC addresses
- 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
- VLAN virtual interface
- GVRP
- 8 link aggregation groups
- Spanning tree, 64 instances for STP/RTSP/MSTP
- Multicast : IGMP Snooping, MLD Snooping, MVR
- Mounting : Desktop/ Wall-Mount
- LEDs :
- 1x tri-color LED for device tracking and status indication
- 10x green-color LEDs for data ports
- 8x yellow-color LEDs for PoE ports
- Package Content :
- GWN7801P Switch
- 1x 1.2m(10A) AC Cable
- 1x Ground Cable
- 4x Rubber Feet
- 2x Lug Ear
- 3-Year Warranty Guaranteed
