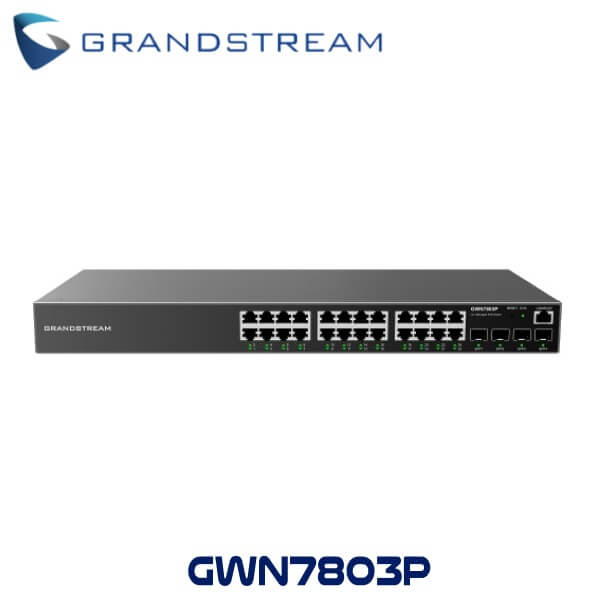

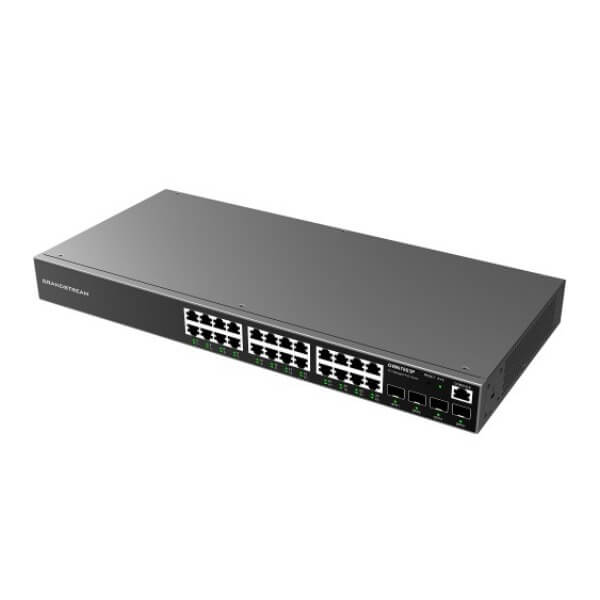

Grandstream GWN7803P Network Switch Jeddah

The Grandstream GWN7803P Jeddah is an Enterprise Layer 2+ Managed PoE Network Switch that belongs to the GWN7800 series of Layer 2+ managed network switches. These switches are designed specifically for small-to-medium enterprises to create scalable, secure, high-performance, and intelligent business networks that can be fully managed. The Grandstream GWN7803P Jeddah offers advanced VLAN for flexible and advanced traffic segmentation, advanced QoS for prioritizing network traffic, IGMP Snooping for optimizing network performance, and comprehensive security features to protect against potential attacks. This Grandstream GWN7803P Jeddah PoE switch also provides dynamic PoE output to power various PoE endpoints such as IP phones, IP cameras, and Wi-Fi access points. Managing the GWN7800 series can be done through different methods, including the local network controller in the web user interface of the GWN7800 series switch. Additionally, the series is supported by GWN Cloud and GWN Manager, which are Grandstream’s cloud and on-premise Wi-Fi management platforms.

Features

• 24 Gigabit Ethernet ports
• 4 Gigabit SFP ports
• 24 PoE ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Provides quaternary binding of IP, MAC, VLAN & port;
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Device management via SNMP, RMON, CLI, HTTPS, TR069, GWN Manager, GWN.Cloud
• Advanced QoS auto detects and prioritizes latency sensitive audio/video/RTP/ VoIP/SIP packets
• 3-Year Warranty Guaranteed

Technical Specifications

• Model : GWN7803P
• Network Protocol :
  • IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z,
    IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
• Gigabit Ethernet Ports : 24
• Gigabit SFP Ports : 4
• Console : 1
• Number of PoE Ports : 24
• Integrated Power Supply : 400W
• Max Output Power per PoE Port : 30W
• Max Total PoE Output Power : 360W
• PoE Standards : IEEE 802.3af/at
• Auxiliary Ports :
  • 1x Reset Pinhole
• Forwarding Mode : Store-and-forward
• Total non-blocking throughput : 28Gbps
• Switching Capability : 56Gbps
• Forwarding Rate :
  • 41.66M packets per second
• Packet Buffer : 4.1MB
• Switching :
  • 8K static, dynamic and filtering MAC addresses
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  • VLAN virtual interface
  • GVRP
  • 8 link aggregation groups
  • Spanning tree, 64 instances for STP/RTSP/MSTP
• Multicast : IGMP Snooping, MLD Snooping, MVR
• Mounting :
  • Desktop
  • Wall-Mount
  • or rack-mount (rack-mount brackets included)
• LEDs :
  • 1x tri-color LED for device tracking and status indication
  • 28x green LEDs for data ports
  • 24x yellow-color LEDs for PoE ports
• Package Content :
  • GWN7803P Switch
  • 1x 1.2m(10A) AC Cable
  • 1x Ground Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 2x Lug Ear
  • 3-Year Warranty Guaranteed
