Grandstream GWN7813P Jeddah

Reviews

Grandstream GWN7813P Riyadh

The Grandstream GWN7813P Riyadh functions as a Layer 3 managed network switch, comprising 24 RJ45 Gigabit Ethernet ports engineered to supply power to connected devices like PTZ cameras or VOIP phones via POE (Power Over Ethernet).

Ask for Quote & Get Low Price

Description

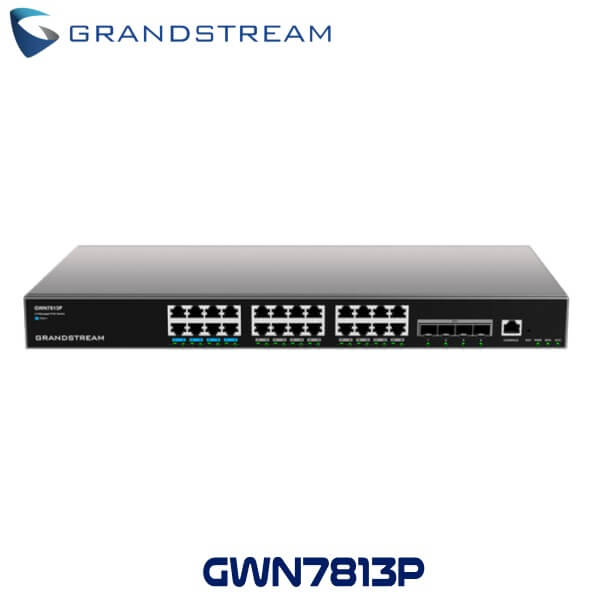

Grandstream GWN7813P Network Switch Jeddah

The Grandstream GWN7813P Jeddah functions as a Layer 3 managed network switch, comprising 24 RJ45 Gigabit Ethernet ports engineered to supply power to connected devices like PTZ cameras or VOIP phones via POE (Power Over Ethernet). The switch additionally integrates four 10 Gigabit SFP+ ports tailored for fiber connectivity. In its capacity as a POE switch, it incorporates 8 ports equipped with POE++ power, allowing for the delivery of up to 60 W of power to connected devices. The remaining 16 POE ports can each receive up to 30 W per port. An aggregate POE power allocation of 360 W is available. The Grandstream GWN7813P Jeddah switch employs intelligent power control mechanisms to optimize power distribution, accurately determining the power requirements of individual connected devices. Functioning as an enterprise-grade network switch, it offers a comprehensive 128 Gbps total switch capacity across its Gigabit Ethernet ports, effectively mitigating network congestion and ensuring peak performance.

The Grandstream GWN7813P Jeddah is a managed switch that equips you with a comprehensive array of controls, enabling the establishment of an optimal network tailored to the demands of your medium to large enterprise. It boasts advanced VLAN features to segment traffic and sophisticated QoS controls for prioritizing data flows, ultimately resulting in a fully optimized network environment. Enhanced security measures, such as DoS protection and IP Source Guard, safeguard your communications. It’s worth noting that the GWN7813P supports POE (Power Over Ethernet).

Grandstream GWN7813P Features & Benefits

Powerful Business Processing Capabilities

  • Routing including static routing, dynamic routing and policy routing to realize routing data communication between different network segments. Simpler, more efficient and more reliable.
  • DHCP Server and Relay to assign IP address to hosts in the network.
  • GVRP to realize VLAN dynamic distribution, registration and attribute propagation, reduce the amount of manual configuration, and ensure the correctness of configuration.
  • QoS, including Port Priority, Priority Mapping, Queue Scheduling, Traffic Shaping and Rate Limit.
  • ACL to realize the filtering of data packets by configuring matching rules, processing operations and time schedule, and provide flexible security access control policies.
  • IGMP Snooping and MLD Snooping to meet the needs of multiterminal HD video surveillance and video conference.
  • IPv6 to meet the needs of the network transition from IPv4 to IPv6.

Multiple Security Prevention Mechanism

  • Static MAC table, dynamic MAC table to allow data transmission, and filter MAC table to avoid network attacks.
  • Packet filtering based on binding of IP address, MAC address, VLAN and port.
  • Dynamic ARP Inspection to protect against ARP spoofing and ARP flooding attacks such as gateway spoofing, man-in-the middle attacks and etc. that are common in LAN environment.
  • IP Source Guard to prevent illegal address spoofing including IP/ MAC/VLAN spoofing and IP/VLAN spoofing.
  • DoS Attack Defense, including Land Attack, Smurf Attack, TCP SYN Attack, Ping Flooding and more.
  • 802.1X, RADIUS, AAA, TACACS+ authentications to provide authentication function for LAN devices.
  • Supports port security. When the number of MAC addresses learned by a port reaches the maximum number, it will be set to error-down status automatically or stop learning to prevent MAC address attack and control the network traffic of the port.
  • Supports DHCP Snooping. Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe.

Diverse Reliability Protection

  • STP/RSTP/MSTP to guarantee fast convergence, improve fault tolerance, ensure stable network and provide link load balance, and redundancy.
  • ERPS (pending), loopback detection to identify and remove loops on the network.
  • VRRP (pending) to minimize network downtime caused by gateway failure.
  • Link aggregation to increase bandwidth, improve reliability and load balancing.
  • Storm control to prevent traffic interruption caused by broadcast,multicast or certain unicast packets.

PoE Power Supply Capability (Only GWN7810P series support)

  • PoE power supply and comply with the IEEE 802.3af/at/bt standards to meet the PoE power supply requirements of security monitoring, audio and video conferencing, wireless signal coverage and more scenarios.
  • Supports setting user-defined time period to control the power supply of PoE port on Web GUI.
  • Setting priority of PoE ports. When remaining power is insufficient, it will power the ports based on priorities.
  • Users can configure the maximum power allowed per port. The maximum limit is 30w per port, even 60W for some port.
  • Dynamic power negotiation via LLDP-MED.

Easy Management and Maintenance

  • Managed by Web GUI, CLI(Console, Telnet, SSH) and SNMP (v1/v2c/v3).
  • Monitoring of CPU and memory usage. Support common networking tools such as Ping, Traceroute, UDLD(TBD) and Copper Test to analysis networking issues.
  • Supports RMON, Syslog, traffic statistics and sFlow(pending) for network optimization.
  • LLDP and LLDP-MED for automatic discovery, provisioning and management of endpoint devices.
  • Managed by GWN.Cloud and GWN Manager.

IPv4/IPv6 Dual Protocol Stack

  • IPv4 routing protocol, including IPv4 unicast routing to satisfy different networking needs.
  • IPv6 routing protocols, including IPv6 unicast routing to satisfy different networking needs.
  • Supports an IPv4, IPv6 or IPv4/IPv6 hybrid environment.

Quick Specs :

  • RJ45 Ports : 24x Gigabit POE
  • SFP+ Ports : 4x 10 Gigabit
  • Console Port : 1x
  • Switching Capacity : 128 Gbps
  • POE (Power Over Ethernet) : 802.3af/at/bt
  • Power Output :
  • POE : 16x up to 30 W per port
    • POE++ : 8x up to 60 W per port
    • Total POE Power : 360 W
  • Mounting : desktop, wall, rack
  • Dimensions :
    • Height : 1.73 in
    • Width : 17.32 in
    • Depth : 11.81 in
  • Weight : 10.34 lb
  • Package Contents :
    • GWN7813P Switch
    • 1.2 m AC Cable
    • 25 cm Ground Cable
    • 4x Rubber Footpads
    • Power Cord Anti-Trip
    • 8x Screws
    • 2x Rack-Mounting Kits
    • Quick Installation Guide
