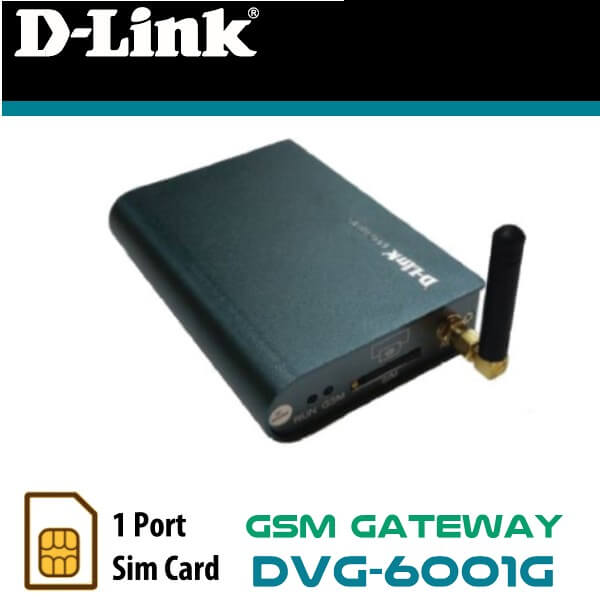

D- LINK DVG-6001G GSM Gateway Jeddah

The D – Link DVG-6001G GSM Gateway Jeddah facilitates smooth transition between PLMN(GSM) and VoIP network. The SIP – based Gateway works perfectly with major leading professional soft switch brands and SIP servers. The D-Link DVG-6001G GSM Gateway Jeddah incorporates both narrowband and wideband audio codecs such as G.711A/U law, G.723.1, G.729A/B resulting in very clear audio. It also uses G168 Echo Cancellation to filter out any background and surrounding noises that may occur in noisy and busy environments. D – Link DVG-6001G GSM Gateway Jeddah runs on a powerful operating system and supports a number of network protocols including; IP, TCP, UDP, TFTP, FTP, RTP, RTCP, ARP, RARP, ICMP Ping, NTP, SNTP, Http, and DNS. It is equipped with 2 10/100M Base – Tx RJ45 ports for an easy Ethernet connection.

D- LINK DVG-6001G GSM GATEWAY FEATURES

MODULAR & SCALABLE

You do not require any technical expertise in order to set up the Premium D-Link DVG-6001G GSM Gateway Jeddah which offers an easy user experience, courtesy of its embedded web – based configuration. The high performing Gateway features SIP/IAX trunks and supports a modular analog interface to enable you to add to your already existing analog telephony infrastructure.

COST SAVING

The D-Link DVG-6001G GSM Gateway Jeddah enables you to enjoy seamless communications at an extremely affordable price. The incorporated Internet Phone Service which integrates well with known ITSPs offers an easy connection for faster calls and browsing in your workstation.

SIMPLE INTEGRATION

The D-Link DVG-6001G GSM Gateway Jeddah incorporates a simple web based configuration, Telnet configuration and a firmware upgrade by TFTP to accord the user a very easy installation and operation experience. It is easy to deploy, resulting in a neater and cleaner workstation.

FIRMWARE UPGRADEABLE

Firmware upgrade enables you to enjoy newer versions of the Gateway’s existing operating system and as a result, achieve its optimal performance. Upgrading your firmware fixes any existing bugs and protects you from vulnerabilities such as risks of malicious cyber attacks and any unauthorized access by unknown users, devices and applications. Updating your D-Link DVG-6001G GSM Gateway’s firmware has never been easier. Simply type your gateway’s IP address into your web browser and enter your login information. Then locate the Firmware or Update section and download the latest firmware update on your Gateway manufacturer’s website. Finally, upload the update and reboot the Gateway.

ADVANCED CALL FEATURES

The D-Link DVG-6001G GSM Gateway Jeddah boasts of a number of modern call features including ;

Call Redirect : this is a telephony feature of some telephone switching systems which redirects a telephone call to another destination, which may be, for example, a mobile or another telephone number where the desired called party is available.

Call Waiting : this feature enables a user to accept an incoming call by putting the current active call on hold.

AUTOMATED – PROVISIONING – TFTP/HTTP/HTTPS

The technologically advanced D-Link DVG-6001G GSM Gateway Jeddah has the ability to deploy information technology or telecommunications service by using embedded pre-deﬁned procedures that are carried out electronically without requiring any human intervention, making it very reliable and convenient.

RICH QoS ABILITIES

Quality of Service (QoS) is a feature of routers and switches which prioritizes traffic so that more important traffic can pass first, resulting in an overall performance improvement for critical network traffic. This feature is very essential in eliminating delays in the D-Link DVG-6001G GSM Gateway Jeddah whenever there are high volumes of traffic.

MOBILE CONNECTIVITY FOR SMB

The D-Link DVG-6001G GSM Gateway Jeddah offers a perfect communication solution for both small and medium sized businesses. It works to enhance your high performance as well as securing both wired and wireless infrastructure for mobile and cloud-based applications. It is highly versatile and works with various IP PBX platforms to enhance the productivity of your workers.

EXCELLENT AUDIO QUALITY

The D-Link DVG-6001G GSM Gateway Jeddah offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Cancelling Technology, Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations without any distractions.

G168 ECHO CANCELLATION

The magnificent D-Link DVG-6001G GSM Gateway Jeddah uses G168 Echo Cancellation to filter out any background and surrounding noises that may act as distractions whenever the GoIP user is making any communications.

SIP – COMPLIANT

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization starts automatically, after which the phone is up and ready for use. The D-Link DVG-6001G GSM Gateway Jeddah can not only be configured via a user interface, as it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. You can therefore easily connect your D-Link DVG-6001G GSM Gateway Jeddah to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The D-Link DVG-6001G GSM Gateway Jeddah is based on SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as Asterisk,3CX, and BroadSoft that currently exist in the market.

INTEROPERABILITY

You can use various professional platforms IP PBX and softswitch brands such as Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX on your D-Link DVG-6001G GSM Gateway Jeddah.

Why the D-Link DVG-6001G GSM Gateway Jeddah?

1 GSM/WCDMA channel
Embedded Operating system
Carrier select
GSM: Quad-band 850/900/1800/1900MHz
PIN modified
SMS sending and receiving
PSTN and VoIP hotline
USSD, open API for SMS
WCDMA: 850/1900/2100MHz
Flexible dial plan, digit map

D- LINK DVG-6001G GSM GATEWAY SPECIFICATIONS

MOBILE SPECIFICATIONS
- Frequency Range:
  - GSM 850/900/1800/1900MHz
  - WCDMA 850/1900/2100 MHz
- DTMF mode: Signal/RFC2833
- SMS/SMSC/USSD
- open API for SMS
- Call duration limitation
- One/two stage dial-up, hotline
- Polarity Reversal
- Custom IVR
- PIN modified
- Carrier select
- CLIR
- BCCH
FEATURE LIST
- SIP v2.0 RFC3261
- Outbound Proxy
- SIP register client
- IP trunk and IP trunk group
- SIP codes mapping
- Call Redirect
- Call waiting
- PSTN hotline
- VoIP hotline
- Password authentication for incoming and outgoing calls
- Auto provisioning
- Local/Remote Codecs
- Digit map
NETWORK FEATURES
- Ethernet Interface: 2*10/100M Base-Tx RJ45
- Static IP, PPPoE, DHCP
- Network Protocol Support:
- IP, TCP, UDP, TFTP, FTP, RTP, RTCP, ARP, RARP, ICMP Ping, NTP, SNTP, Http, DNS
- NAT traversal: Static NAT, STUN
- Static/dynamic ARP request
- DSCP/ToS
VOICE PROCESSING
- 711A/U law, G.723.1, G.729A/B
- Silence Suppression & Detection
- Comfort Noise Generation (CNG)
- Voice Activity Detection (VAD)
- Echo Cancellation (G.168)
- Adaptive (Dynamic) Jitter Buffer
- Call Progress Tone Generation
- Programmable Gain Control
MAINTAIN & UPGRADE
- Web based configuration
- Telnet configuration
- Configure backup/restore
- Firmware upgrade by TFTP
- Web & telnet login password modify
- Factory reset
- System log
- Ping and Tracer test on web
- Traffic statistics: TCP,UDP,RTP
- VoIP call statistics
- PSTN call statistics: ASR, ACD, PDD
PHYSICAL PROPERTIES
- Power: DC12V1A
- Temperature (operation): 0 °C ~ 45 °C
- Temperature (storage): 20 °C ~ 80 °C
- Operation Humidity: 10%-90%
- Weight: 7kg
