Description

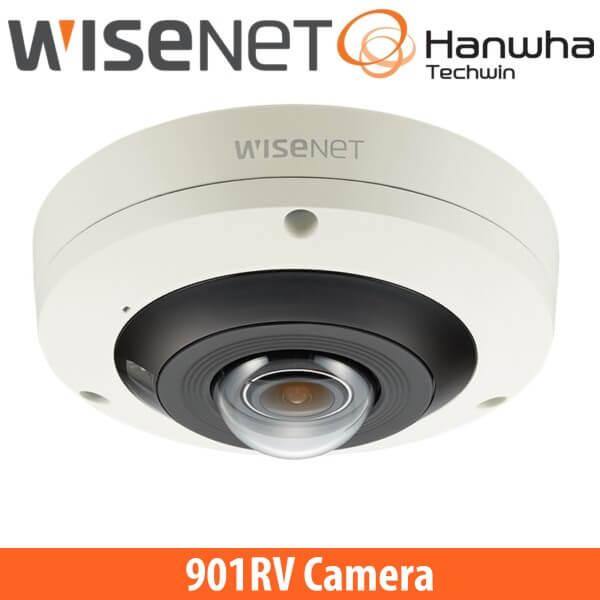

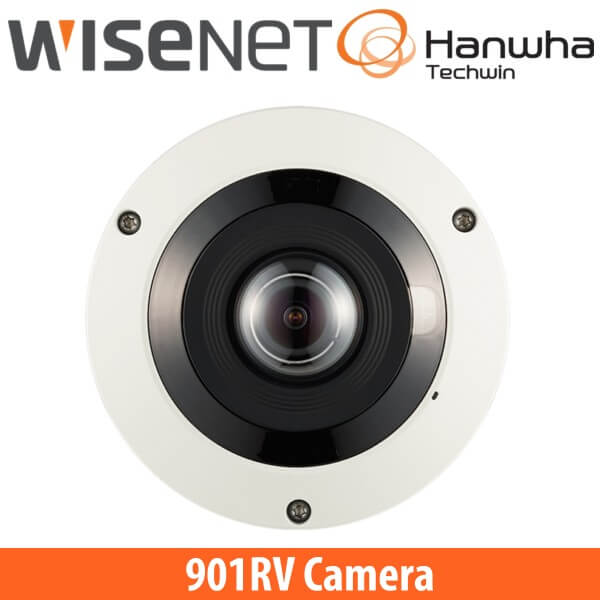

WISENET XNF-9010RV CAMERA FEATURES

Key Features

• 1/2.3” 12MP CMOS
• 08mm fixed focal lends
• Stereo graphic type lens, enhanced resolution for the peripheral regions
• Fisheye, Single panorama, Double panorama, Quad view
• On board dewarping, Digital PTZ
• Extreme WDR (120dB)
• 265, H.264, MJPEG codec supported, WiseStreamII support
• Wise IR, IR viewable length 10m
• Plugin support, selectable I/O port
• Advanced Video Analytics, Business Intelligence: Heatmap, People counting, Queue management
• IP66/IK10/NEMA4X

Video surveillance Solutions

In addition to setting a new standard for IP network video surveillance solutions in respect of cyber security, the feature-rich Wisenet7 also ensures the two new fisheye cameras, which have built in IR illumination, are able to capture superb quality images, regardless of the lighting conditions. A new ‘extreme’ Wide Dynamic Range (WDR) feature, for example, utilises new Local Contrast Enhancement and Scene Analysis technologies to capture ultra-clear images from scenes containing a challenging mix of bright and dark areas.

Potential video evidence

A digital PTZ allows users to electronically pan, tilt and zoom in on specific areas for a more detailed view, whilst at the same time, continuing to monitor the whole 360⁰ view. It also offers privacy masking, a 12VDC and PoE capability. In the event of network disruption, video is automatically recorded to on-board SDXC storage to ensure that potential video evidence is not lost. In addition to providing a powerful tool to deter and detect criminal activity, the two cameras are equipped with specialist business intelligence applications which enable users to achieve so much more from their video surveillance systems.

Improving customer experience

Collectively, the heatmap, people counting and queue management video analytics are able to assist businesses, and the retail sector in particular, with identifying opportunities to improve productivity, gain a greater understanding of customer behaviour and improve the customer experience. It support H.265, H.264 and MJPEG compression formats, as well as WiseStream II, a complementary compression technology which dynamically controls encoding, balancing quality and compression, according to movement in the image. Bandwidth efficiency is improved by up to 75% compared to current H.264 technology when WiseStream, which is unique to Wisenet cameras, is combined with H.265 compression.

WISENET XNF-9010RV CAMERA SPECIFICATIONS

• VIDEO
  • Imaging Device : 1/2.3″ 12MP CMOS
  • Resolution : Original view(1:1): 3008×3008~480×480,Double panorama(2:1): 3584×1792~640×320, Single panorama(4:1),3584×896~640×160, Quad view: 3584×2688 ~ 640×480, Q1/Q2/Q3/Q4(4:3): 1792×1344~640×480
  • Framerate:H.265/H.264: Original view-Max.30fps/25fps@3008×3008(60Hz/50Hz), Double panorama-Max.30fps/25fps@3584×1792(60Hz/50Hz) Single panorama- Max.30fps/25fps@3584×896 (60Hz/50Hz) MJPEG: Max.30fps/25fps@1080×1080 (60Hz/50Hz)
  • Illumination : Color: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux(IR LED on)
  • Video Out : CVBS : 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for Installation USB: Micro USB Type B, 1280×720 for installation
• LENS
  • Focal Length : (Zoom Ratio) 1.08mm fixed focal
  • Aperture Ratio : F2.2
  • Angular Field of View : H: 187° / V: 187° / D: 187°
  • Object Distance : 0.5m(1.64ft)
  • Focus Control : Simple focus
• OPERATIONAL
  • Camera Title : Displayed up to 85 characters
  • Day & Night : Auto(ICR)
  • Backlight Compensation : BLC, HLC, WDR, SSDR
  • Wide Dynamic Range : extremeWDR (120dB)
  • Digital Noise Reduction : SSNR V
  • Motion Detection : 8ea, 8point polygonal zones
  • Privacy Masking : 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
  • Gain Control : Low / Middle / High
  • White Balance : ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
  • Electronic Shutter Speed : Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
  • Digital PTZ : Support(Preset, Group)
  • Video Rotation : Flip, Mirror
  • Analytics : Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
  • Business Intelligence : People counting, Queue management, Heatmap
  • Alarm I/O : 2 configured I/O
  • Alarm Triggers : Analytics, Network disconnect, Alarm input
  • Audio In : Selectable(mic in/line in/built-in mic), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  • Audio Out : Line out, Max. output level: 1Vrms
  • IR Viewable Length : 10m(32.8ft), Wise IR
• NETWORK
  • Ethernet : Metal shielded RJ-45(10/100BASE-T)
  • Video Compression : H.265/H.264: Main/Baseline/High, MJPEG
  • Audio Compression : G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
  • Smart Codec : Manual(5ea area), WiseStreamII
  • Video Quality Adjustment : H.264/H.265: Target bitrate level control MJPEG: Quality level control
  • Bitrate Control : H.264/H.265: CBR or VBR MJPEG: VBR
  • Streaming : Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
  • Protocol : IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
  • Security : HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
  • Application Programming Interface : ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
• GENERAL
  • Webpage Language : English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
  • Edge Storage : Micro SD/SDHC/SDXC 2slot 1TB(512GBx2)
  • Memory : 4096MB RAM, 512MB Flash
• ENVIRONMENTAL & ELECTRICAL
  • Operating Temperature / Humidity : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
  • Storage Temperature / Humidity : -50°C ~ +60°C(-58°F ~ +140°F) / Less than 95%
  • RH Certification : IP66, IK10, NEMA4X
  • Input Voltage : PoE(IEEE802.3af, Class3), 12VDC
  • Power Consumption : PoE Max 12.95W, typical 11W 12VDC: Max 11W, typical 9.1W
• MECHANICAL
  • Color / Material : White / Aluminum, Hard-coated dome bubble
  • RAL Code : RAL9003
  • Product dimensions / weight : Ø160x72mm(62.99×28.35″), 1100g(2.43lb) Hanging mount(Dome) SBP-167HMW
• DORI (EN62676-4 STANDARD)
  • Detect (25PPM/ 8PPF) 34.9m(114.49ft)
  • Observe (63PPM/ 19PPF) 13.9m(45.60ft)
  • Recognize (125PPM/ 38PPF) 7.0m(22.96ft)
  • Identify (250PPM/ 76PPF) 3.5m(11.48ft)
