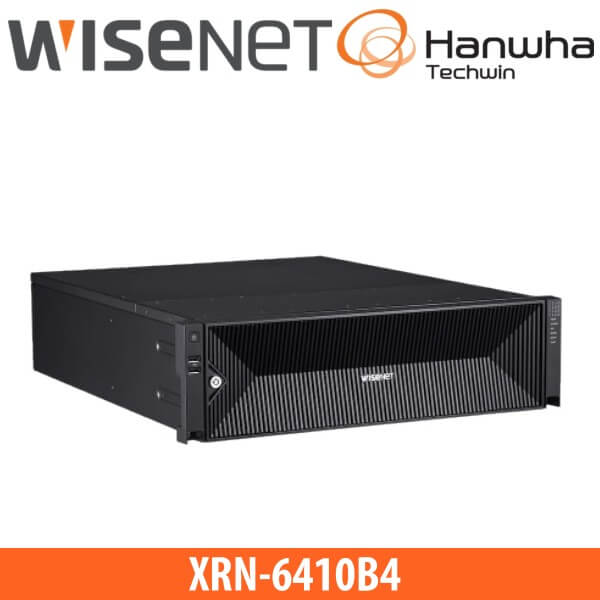

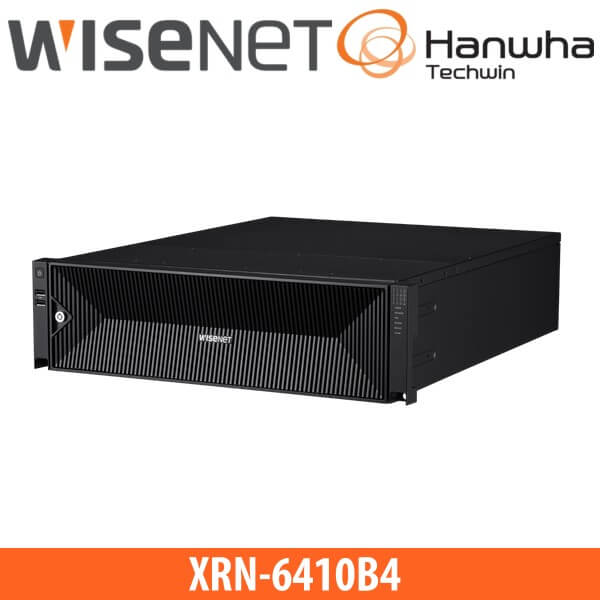

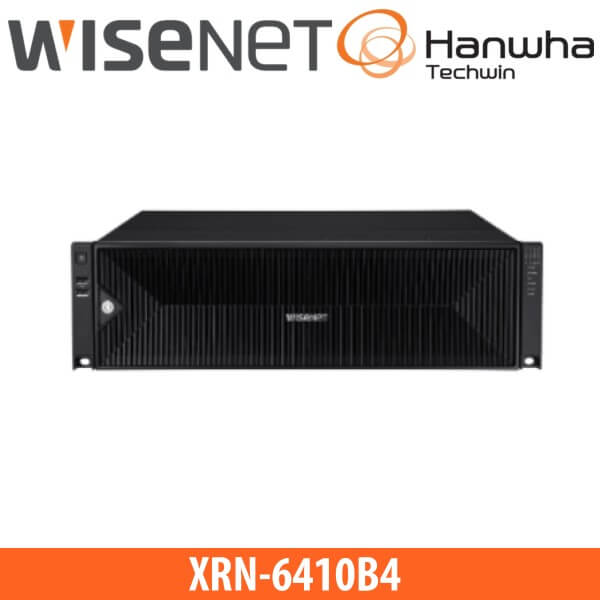

WISENET XRN-6410B4 NVR Jeddah
The WISENET XRN-6410B4 64 channel NVR Jeddah, Users can search various attributes from AI cameras such as people (gender, age, hat, bag, color of clothes) and vehicle (type, color). The product records video and audio from network cameras to a hard disk, and enables playback from the hard disk. It also provides remote monitoring environment for video and audio over the network using a remote computer.
WISENET XRN-6410B4 FEATURES
- User friendly UI / UX
- AI search support when working with Wisenet AI camera
- Dynamic Event support- New event function of cameras is available without software update
- Bookmark management (Up to 100 set)
- H.265, H.264, MJPEG compression support
- SATA 16ea (Up to 160TB)
- RAID 5/6 support
- Provides new UI 2.0
- Supports instant viewer
- Can be linked to AI camera
- Supports AI search (people, face, vehicle, license plate)
- Supports BestShot view
- Bookmark function
- Thumbnail function
- View camera event list in real time
- Convenient event rule setup
- Various sequence (layout, page) functions and Extended search period
- Convenient log search
- Supports thermal imaging camera/PTZ linked camera and a range of 4K camera resolutions
- Outputs a 4K high definition image using HDMI
- Supports dual monitor output (expand, duplicate)
- Record and play video and audio
- Supports ONVIF Profile S standard and RTP / RTSP protocols
- Display the HDD operation status by HDD SMART and HDD overwrite enabled
- Function to export using USB memory and external hard disk
- Simultaneous play of 32, 64 channels
- View multi-channel time line when playing videos
- Various Search Modes (Time, Event, Smart, Text, Export, ARB)
- ARB support (configuration feature for saving period by channel)
- Various recording modes (Normal, Event, Scheduled Recording)
- Alarm Input / Output
- Remote monitoring function by Windows Network Viewer
- Live monitoring of the network camera
- Installation Wizard Function (Recorder, Web Viewer)
- Supports the smartphone remote monitoring feature by P2P support
- Provides smartphone event alarm (sending real-time event messages)
WISENET XRN-6410B4 SPECIFICATIONS
| Display | ||
| Network camera | ||
| Inputs | Max. 64CH | |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920×1080 (60Hz) | |
| Multi Screen Display | [Local Monitor] 1/ 2V/ 3V/ 4/ 8/ 9/ 13/ 16/ 25/ 36/ 64/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(960fps) | |
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 400Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | ||
| Playback Bandwidth | RAID Mode : Max. 64Mbps(64CH simultaneously) Non-RAID Mode : Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 112CH(Local 64CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 16ea(Max. 160TB, Non-RAID mode) | |
| External | iSCSI storage | |
| RAID | RAID-5/6(Array Size : 8 HDDs x 2 Array) | |
| Backup | ||
| File backup | BU/Exe(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | ||
| Input/Output | 64 CH(network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | ||
| Supported OS | Windows 10, macOS 10.13 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS | |
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | ||
| Control | Via GUI, Webviewer, SPC-2000 | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front | ||
| Indicator | HDD, Alarm, Power, Record, Backup, Network | |
| Storage | OK | |
| Reset | Power button | |
| HDD Key Lock | OK | |
| HDMI | 2EA ( Playback/Setup → HDMI1) HDMI1 : 3840×2160 30Hz HDMI2 : 1920×1080 60Hz | |
| Audio | Out 1EA | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Single SMPS) | |
| Power Consumption | Max. 265W (904.2 BTU with HDD 16ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440.0 x 132.0 x 571.1mm | |
| Weight | Approx. 13.4Kg(29.6 lb, HDD not included) | |
