Description

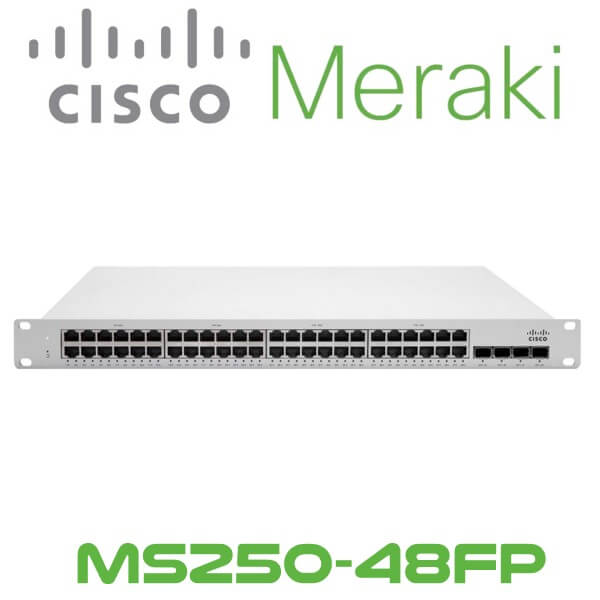

Meraki MS250-48FP Network Switch Jeddah
The Meraki MS250-48FP Jeddah series switches provide reliable access switching ideal for deploying in branches and small campuses. With stacking capabilities and 10G SFP+ uplinks on every model, redundancy and performance are guaranteed. This family also supports redundant, field-replaceable power supplies for mission critical networks.
Meraki MS250-48FP Jeddah is built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS250-48FP Jeddah is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files, or even direct physical access to the switch.
Cisco Meraki MS250-48FP Key Features:
- Gigabit access switching with 24- and 48- port models and optional PoE+ support
- 4 x 10G SFP+ uplink interfaces on all models
- Dual stacking interfaces with up to 80G of bandwidth
- Support for field replaceable, redundant power supplies
- Non-blocking switch backplane with up to 176 Gbps of switching capacity
- 6 configurable QoS queues for converged voice, video, and data applications
- Up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and other PoE-enabled devices
- Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
- Integrated mounting brackets for rack mounting
- Lifetime hardware warranty and advanced replacement at no additional cost
Technical Specs
- 12.80 lb(s)
- # Ports : 48# Ports : 4
- Switch, power cord, power supply, mounting kit, documentation
- Chassis Form Factor : 1U RackmountColor : SilverWarranty Period : Limited lifetime
- Switching capacity : 176Gbps
Stacking bandwidth : 80G (dual interface)
MAC forwarding entries : 32K
Forwarding rate : 127.98Mpps - 1.7″h x 19.1″w x 23.4″d
- I/O:
(48) GbE RJ45
(4) 10GbE SFP+
(2) stacking ports
(1) Power in - # Power Supplies Installed : 1
- Idle / Full Load Power : 25 / 874 W
Available PoE+ Power : 740W
Power Supply : Hot-swappable
Supported Power Supply (included) : (1) 1025W PSU - Networking Protocol : 10 Gigabit EthernetNetworking Protocol : PoE+Networking Protocol : IGMPNetworking Protocol : OSPFNetworking Protocol : Gigabit EthernetRemote Management Protocol : HTTPRemote Management Protocol : SNMPRouting Protocol : IGMPRouting Protocol : OSPFv2Routing Protocol : VRRP
- 19.84 lbs
- Compliant Standards : FCCCompliant Standards : RoHS
- 43222612
- Limited Lifetime
- Limited Lifetime
