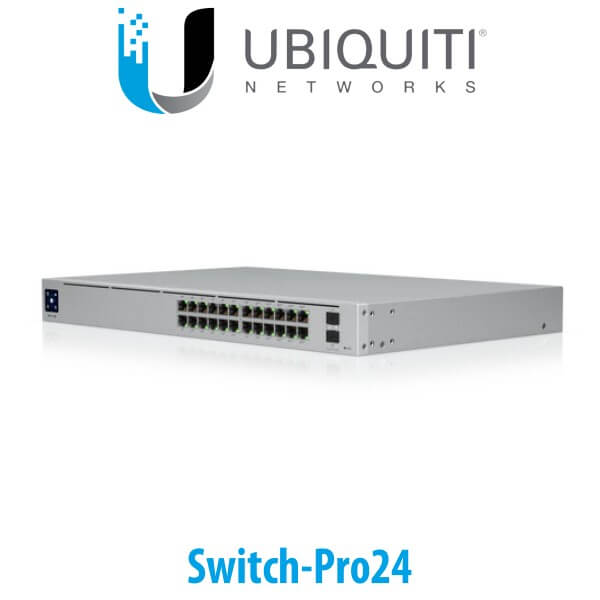

Ubiquiti Switch-Pro24 Riyadh

Ubiquiti Switch-Pro24 Riyadh combines innovative, near-silent cooling capability with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Add to quote

Ask for Quote & Get Low Price

Description

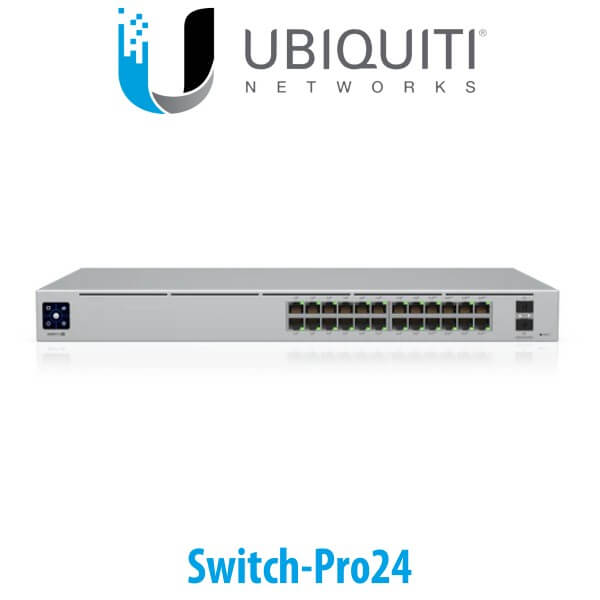

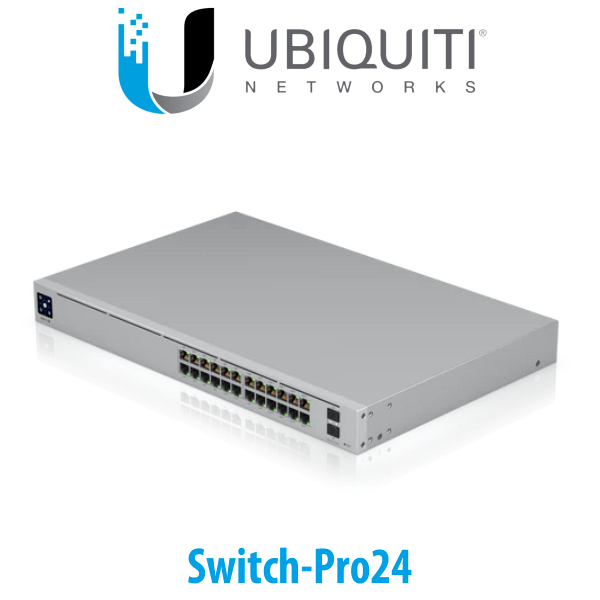

Ubiquiti Switch-Pro24 Network Switch Jeddah

The Ubiquiti Switch-Pro24 Jeddah is a fully managed switch with (24) GbE RJ45 ports and (2) 10G SFP+ ports. The Switch Pro 24 combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi system. Ubiquiti Switch-Pro24 Jeddah combines innovative, near-silent cooling capability with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Ubiquiti Switch-Pro24 Jeddah is available in two models: Switch-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports Switch-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports Layer 3 Features. In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality. Near-Silent Cooling. The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience. Fiber Connectivity SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch. 802. 3bt PoE++PoE support simplifies your network infrastructure and cabling. Eight ports offer 802. 3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802. 3af/at PoE. Redundant Power Option. Ubiquiti Switch-Pro24 Jeddah supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.

Features:

(1) 1.3″ LCM color touchscreen with AR switch management
(24) GbE RJ45 ports
(2) 10G SFP+ ports
(1) USP RPS DC input
Near-silent cooling
Layer 3 switching features

Technical Details

Mechanical
Dimensions	442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72″)
Weight With Brackets	3.50 kg (7.72 lb) 3.59 kg (7.92 lb)
Interfaces Networking Management	(24) 10/100/1000 RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Ethernet In-Band
Total Non-Blocking Throughput	44 Gbps
Switching Capacity	88 Gbps
Forwarding Rate	65.472 Mpps
Power Method Universal Input USP RPS DC Input	100-240VAC, 50/60 Hz 11.5VDC, 2.61A
Power Supply	AC/DC, Internal, 36W
Voltage Range	100 to 240VAC
Max Power Consumption	30W
LEDs RJ45 Data Ports SFP+ Data Ports	Speed/Link/Activity Link/Activity
ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 45° C (23 to 113° F)
Operating Humidity	10 – 90% Noncondensing
Certifications	CE, FCC, IC
