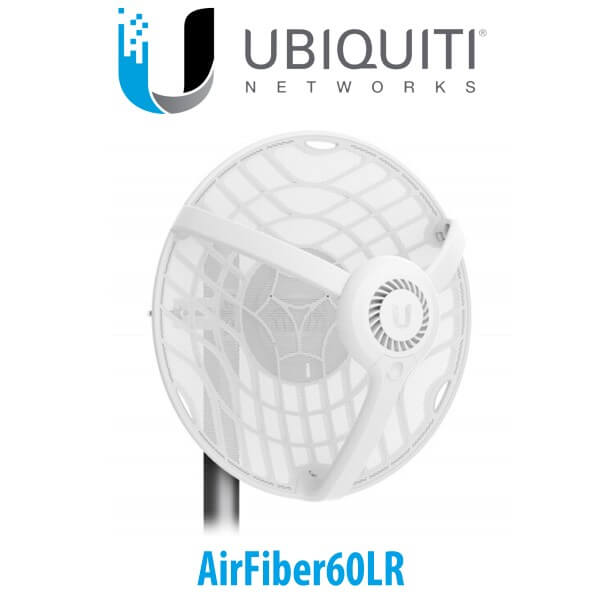

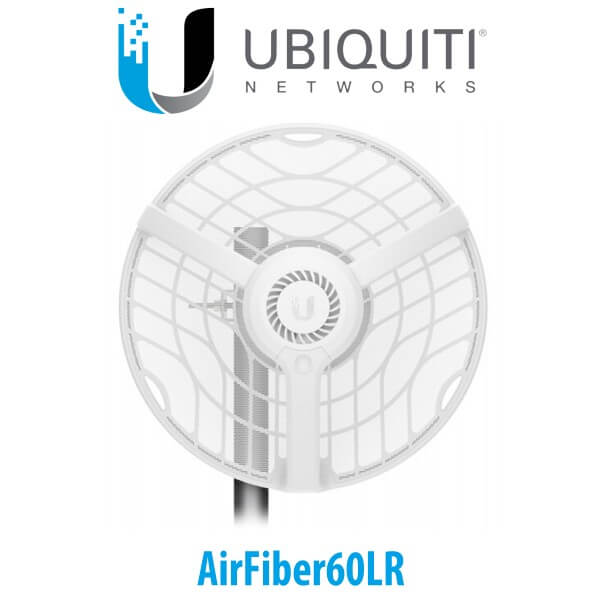

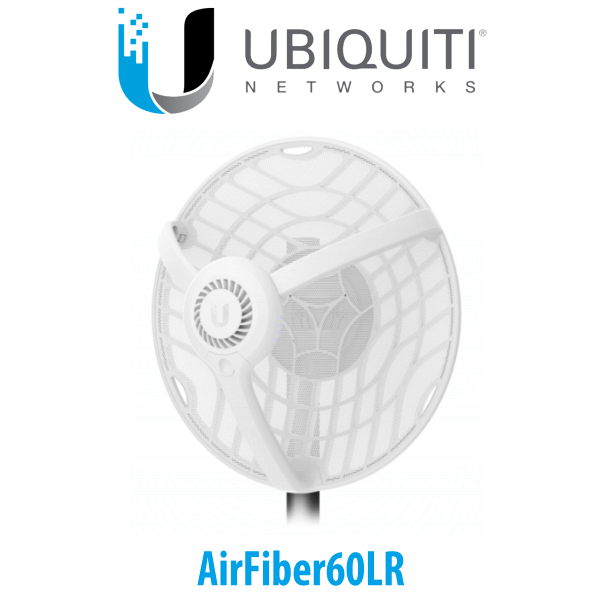

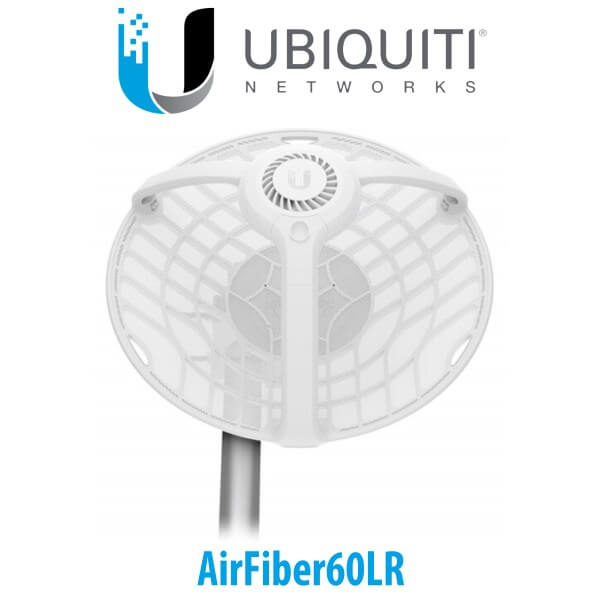

Ubiquiti AirFiber60LR Wi-Fi Bridge Jeddah
The Ubiquiti AirFiber60LR Jeddah (airFiber 60 GHz Long-range Radio (AF60 LR)) is a PtP system that uses Wave Technology to establish long-distance, true-duplex Gigabit links. Equipped with a high-gain dish antenna, the AF60 LR can reach a 1.9 Gbps maximum throughput rate and sustain its links over 12 km. Ubiquiti AirFiber60LR Jeddah also has a dedicated Bluetooth management radio so it can be set up quickly and fully configured with the UISP® application (web/mobile). Ubiquiti AirFiber60LR Jeddah can also be seamlessly integrated into an existing deployment with Ubiquiti’s dedicated link planning platform and tracked from anywhere with its built-in GPS antenna.
This 60 GHz outdoor dish antenna is designed to provide low-interference, high-throughput connectivity at ranges up to 7.5 miles and a maximum data throughput of 1.8 Gb/s. Made from aluminum and UV-stabilized plastic, the Ubiquiti AirFiber60LR Jeddah can operate between -40 and 140°F and has ESD/EMP protection of about 24kV. A precision alignment pole mount is included alongside a 48V Gigabit PoE adapter, which connects to the dish’s Gigabit Ethernet port to provide power and data passthrough. Other features include an integrated GPS and WPA2-PSK signal encryption.
Features:
- Low-interference 60 GHz spectrum
- High-gain dish antenna
- Maximum throughput: 1.9 Gbps
- Link range: 12+ km
- Link planning support via ISP Design Center
- Integrated GPS antenna
- Included precision angle mount
- Easy-to-install snow cover
- Simple, Bluetooth-powered setup with the UISP* Mobile app
Exceptionally Long Connection Range
Fast Data Throughput
Made for the Outdoors
Checking Status
Technical Specs
| Mechanical | |
|---|---|
| Dimensions | Ø413 x 360 mm (Ø16.3 x 14.2″) |
| Weight | Without mount : 1.5 kg (3.3 lb) With mount : 2.7 kg (6 lb) |
| Enclosure materials | Aluminum, UV stabilized polycarbonate |
| Mount material | Galvanized steel |

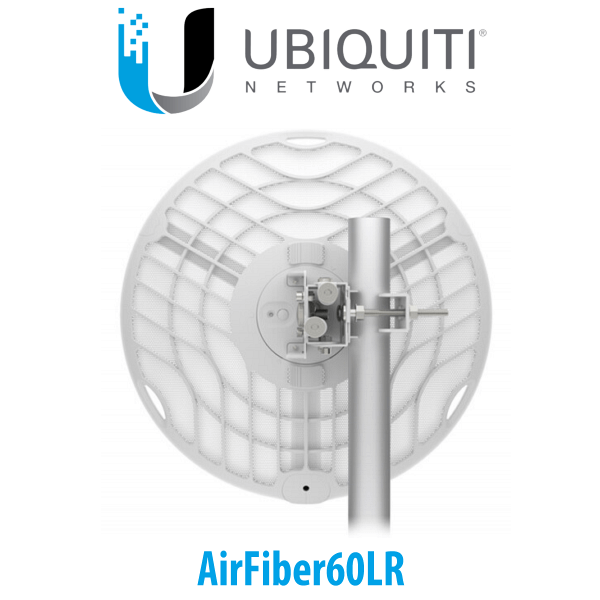

| Mounting | Precision Alignment Kit (included) Pole compatibility: Ø25.4-76.2 mm (Ø1-3″) |
| Wind loading | 420 N at 200 km/h (94.4 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM® Cortex® A7 |
| Memory | 256 MB DDR3 |
| Networking interface | GbE RJ45 port |
| RF Connections | Internal |
| Max. Power Consumption | 18W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8) or 2-pairs (4, 5+; 7, 8- ) |
| Power supply | 48VDC, 0.65A gigabit PoE adapter (included) |
| Supported Voltage Range | 48VDC ± 10% |
| ESD/EMP Protection | Air/Contact: ± 24kV |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP™ console Blue: connected to UISP console |
| Ethernet | Flashing blue: ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| 60G | Blue: active connection |
| Software | |
| OS | airOS |
| Operating mode | PtP only |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol, Wave technology |
| Network | Bridge mode |
| Services | UISP, ping watchdog, NTP client, device discovery |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Software management | Bluetooth management for easy setup over UISP app WEB UI |
| Minimum software requirements | Any modern WEB browser/iOS or Android based smartphone |
| System | |
| Maximum throughput | 1.95 Gbps |
| Maximum range | 12+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating Frequency | 57 to 71 Ghz |
| GPS | Yes |
| Channel Bandwidth | 2160, 1080 MHz |
