Description

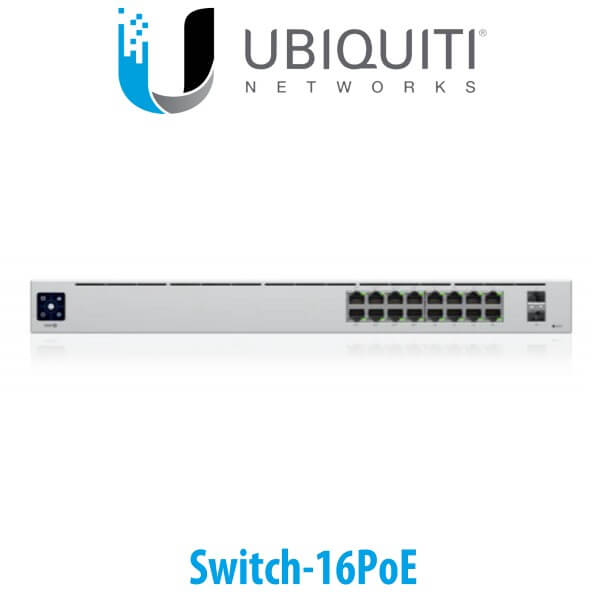

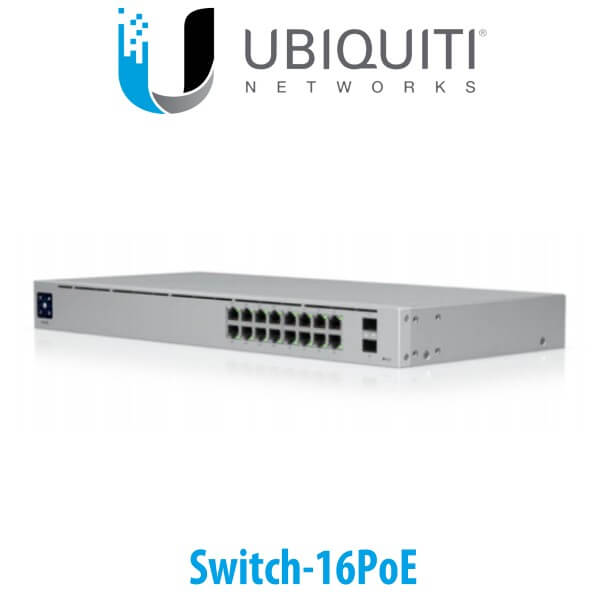

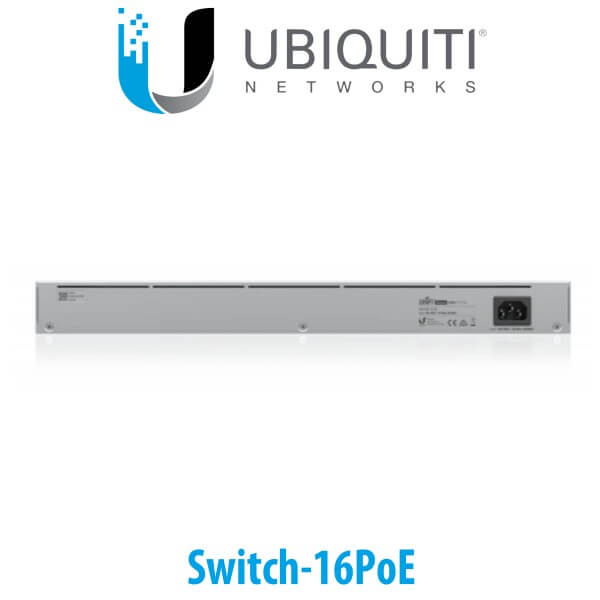

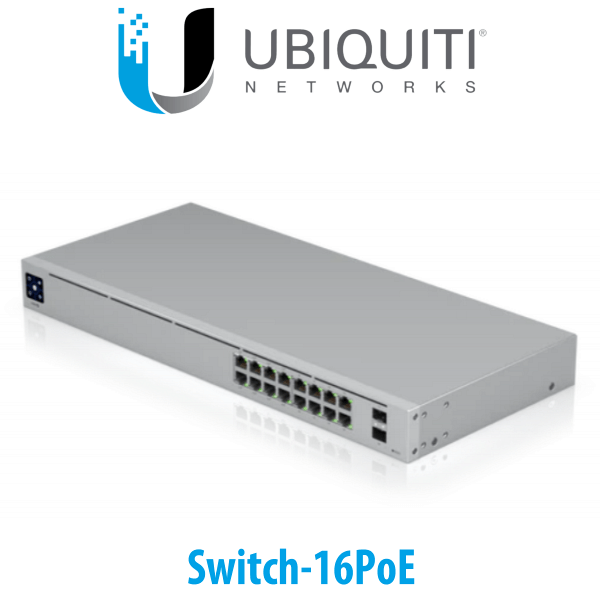

Ubiquiti Switch-16PoE Network Switch Jeddah
The Ubiquiti Switch-16PoE Jeddah is a fully managed switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and a 45W total PoE supply for your UniFi access points and other PoE devices. The Ubiquiti Switch-16PoE Jeddah also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
The Ubiquiti Switch-16PoE Jeddah is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. Ubiquiti Switch-16PoE Jeddah provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The Ubiquiti Switch-16PoE Jeddah features a 1.3″ touch LCM to provide status information. With a depth of 7.9″, the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the Ubiquiti USW-16PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features:
- (8) GbE, 802.3at PoE+ RJ45 ports
- (8) GbE RJ45 ports
- 45W total PoE supply
- Fanless, silent cooling
- Wall-mountable (kit included)
Technical Specs
| Mechanical | |
|---|---|
| Dimensions | 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72″) |
| Weight | 1.2 kg (2.65 lb) |
| Hardware | |
| Total Non-Blocking Line Rate | 16 Gbps |
| Max. Power Consumption | 15W |
| Power Method | Universal AC Input: 100-240VAC |
| Power Supply | Internal 60W AC/DC Power Supply |
| Networking Interfaces | (16) 10/100/1000 Mbps Ethernet RJ45 |
| PoE Interfaces | (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Mangement Interface | Ethernet In-Band |
| Max PoE+ Wattage per Port by PSE | 30W |
| Modes | SMB Layer 2 PoE Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifcations | CE, FCC, IC |
| LED | |
| System | (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| PoE | Amber: IEEE 802.3af/at |
