Description

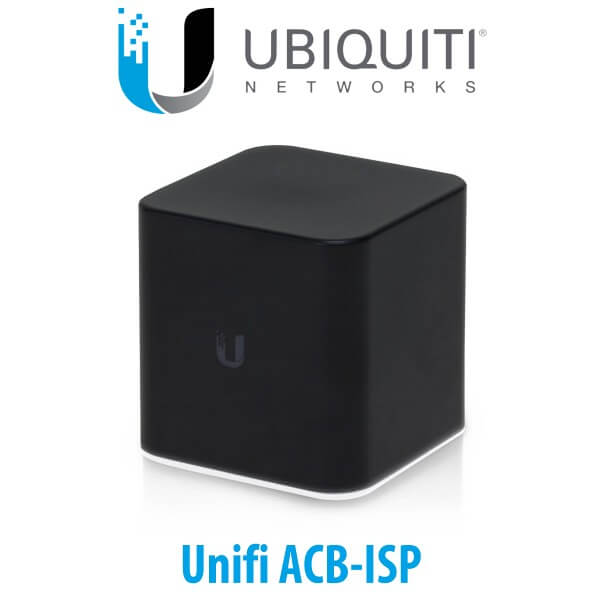

Ubiquiti Unifi ACB-ISP Access Point Jeddah
With a compact design and integrated 24V PoE passthrough, ubiquiti unifi ACB-ISP Jeddah is a low-cost home Wi-Fi access point made to interoperate with airMAX CPE devices, with remote management by UNMS – Ubiquiti Network Management System.
Features :
- Super Antenna
- Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.

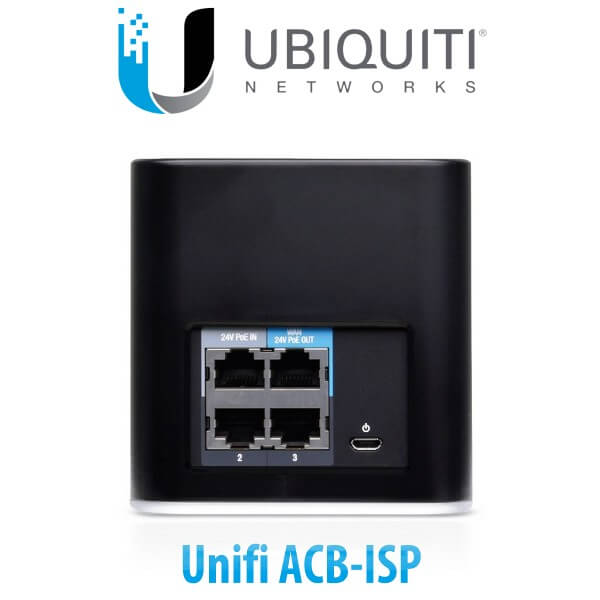

- 24V PoE Passthrough
- The airCube ISP Access Point Jeddah can be powered by and provide power to an airMAX CPE using 24V PoE.
- Sleek Design
- The ubiquiti unifi ACB-ISP attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance.
Technical Specs
| Dimensions | 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51″) |
| Weight | 280 g (9.88 oz) |
| Management Interface | Wi-Fi / Ethernet |
| Networking Interface | 10/100 Fast Ethernet Ports |
| LED | Status |
| Operating Frequency | 2.4 GHz |
| Antenna Gain | 4 dBi |
| Max. Speeds | 300 Mbps |
| Max. Power Consumption | 5W |
| Max. TX Power | 20 dBm |
| Power Supply | 5V |
| Power Method | Micro-USB Adapter (Not Included) or PoE 24V In on LAN Port 1 |
| PoE Out | Controllable 24V PoE Out (4, 5+, 7, 8) on WAN Port |
| Supported Power Voltage | 4.95-5.05V |
| Operating Temperature | -10 to 50° C(14 to 122° F) |
| Operating Humidity | 5 to 95% Non-condensing |
| ESD/EMP Protection | ± 24 kV RJ45 Interface |
| Certifications | CE, FCC, IC |
