Ubiquiti AM-5G20-90 Riyadh

The Ubiquiti AM-5G20-90 Riyadh is a great antenna to pair with the Rocket M5. It has a 90° total beam-width and 20dBi gain. Rocket M5 and AirMax Base Station/Rocket Antennas have been designed to seamlessly work together.

Ask for Quote & Get Low Price

Description

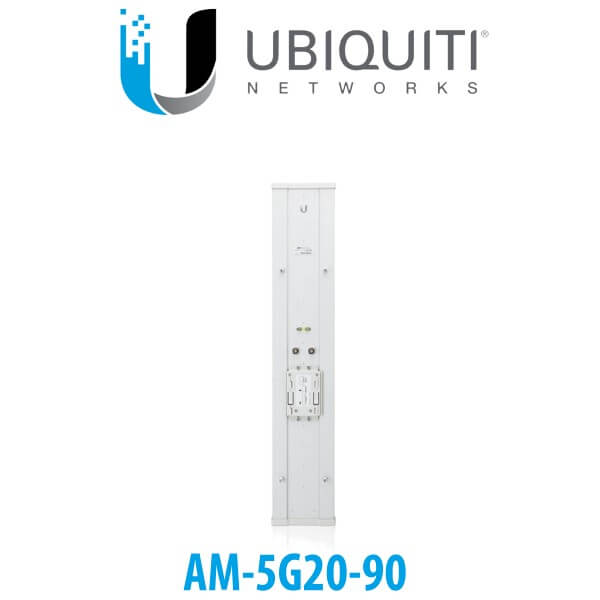

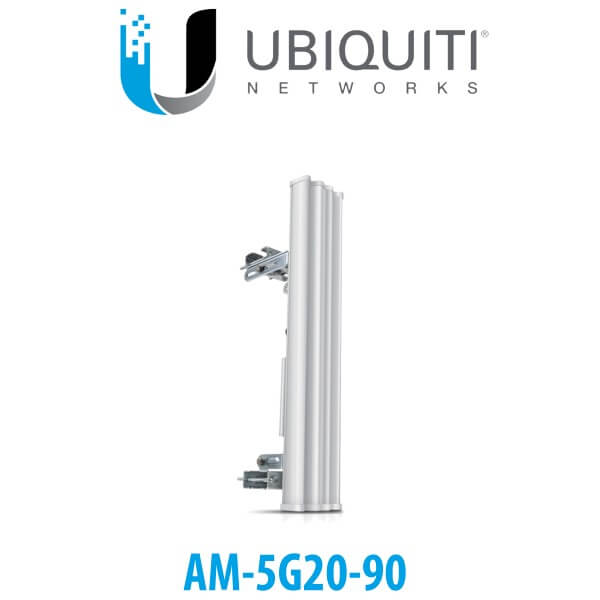

Ubiquiti AM-5G20-90 Jeddah

The Ubiquiti AM-5G20-90 Jeddah provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 20 dBi. It delivers 2×2 MIMO performance and supports airMAX technology, which uses Time Division Multiple Access protocols to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beam-shaping characteristics rivaling the highest quality cellular carrier base station antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2×2 MIMO PtMP Base Station. Rocket mount and weatherproof RF jumpers included.

Ubiquiti AM-5G20-90 Jeddah Features:

  • Seamlessly integrates with RocketM radios
  • Remarkable cross-polarization isolation
  • Intelligent QoS: Priority is given to voice/video for seamless streaming
  • Scalability: High capacity and scalability
  • Long Distance: Capable of high-speed, carrier-class links
  • Up to 100 airMAX clients can be connected to an airMAX sector antenna

Ubiquiti AM-5G20-90 Specs

Frequency Range 5.15 to 5.85 GHz
Gain 19.4 to 20.3 dBi
Hpol Beamwidth 91° (6 dB)
Vpol Beamwidth 85° (6 dB)
Beamwidth Electrical: 4°
Electrical Downtilt
VSWR (Voltage Standing Wave Ratio) 1.5:1
Wind Survivability 125 mph
Wind Loading 26 lbf @ 100 mph
Polarization Dual-Linear
Cross-pol Isolation 28 dB Min
ETSI Specification EN 302 326 DN2
Dimensions 27.55 x 5.31 x 2.75″ (700 x 135 x 70 mm)
Weight 13 lb (5.9 kg)
Packaging Info
Package Weight 9.9 lb
Box Dimensions (LxWxH) 35.3 x 8 x 6.5″
