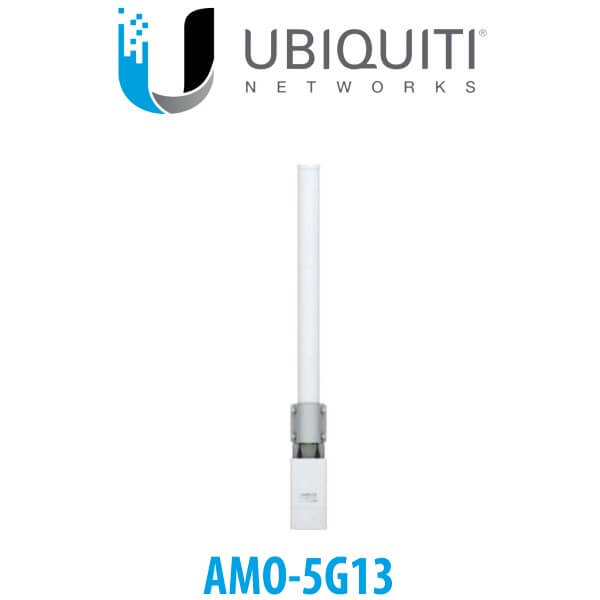

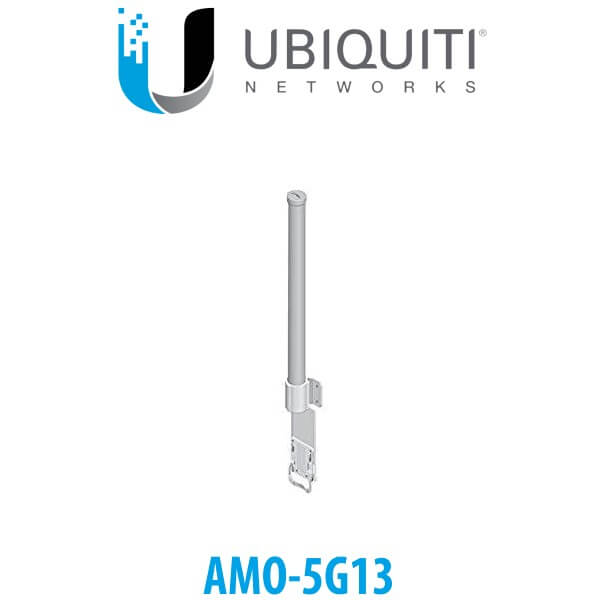

Ubiquiti Omni Antenna airMAX – AMO-5G13 Jeddah
The Ubiquiti airMAX – AMO-5G13 Jeddah is a 5 GHz, 13 dBi airMAX Omni antenna that provides powerful 360° coverage, 2×2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications. Every airMAX Omni antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.
Ubiquiti airMAX – AMO-5G13 Jeddah Features
- Breakthrough 2×2, Dual-Polarity Design – AMO-5G13 Jeddah antennas are the first of their kind to feature a patented, dual-polarity omni design.
- Powerful Omnidirectional Coverage – the Ubiquiti airMAX – AMO-5G13 Jeddah provides 360° coverage, 2×2 MIMO performance in Line-of-Sight (LOS) or Non-Line-of-Sight (NLOS) applications.
- Industrial-Strength Construction – the AMO-5G13 Jeddah is designed with robust mechanical design for outdoor application use.
- Plug and Play Integration – Every airMAX – AMO-5G13 Jeddah has a built-in Rocket™ mount, so no tools are needed to install the Rocket Base Station.
Ubiquiti Omni Antenna airMAX – AMO-5G13 Jeddah Specs
| AMO-5G13 | |
|---|---|
| Dimensions* | 799 x 90 x 65 mm (31.46 x 3.54 x 2.56″) |
| Weight* | 0.82 kg (1.81 lb) |
| Frequency Range | 5.45 – 5.85 GHz |
| Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max VSWR | 1.5:1 |
| Downtilt | 2° |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 84.52 N @ 200 km/h (19 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB min. |
| ETSI Specification | EN 302 326 DN2 |
