Ubiquiti GBE-Plus Jeddah

Reviews

Ubiquiti GBE-Plus – airMAX Riyadh

The Ubiquiti GBE-Plus airMAX Riyadh features an outdoor industrial design combined with an integrated Cassegrain reflector design to achieve significant gain improvements. It is extremely easy to set up, configure and manage using an integrated UISP dashboard and UISP™ Mobile app via Bluetooth.

Ask for Quote & Get Low Price

Description

Ubiquiti GBE-Plus airMAX Jeddah

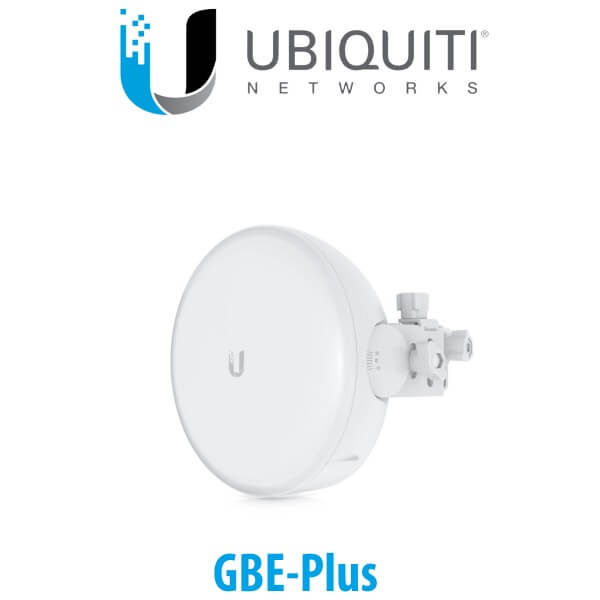

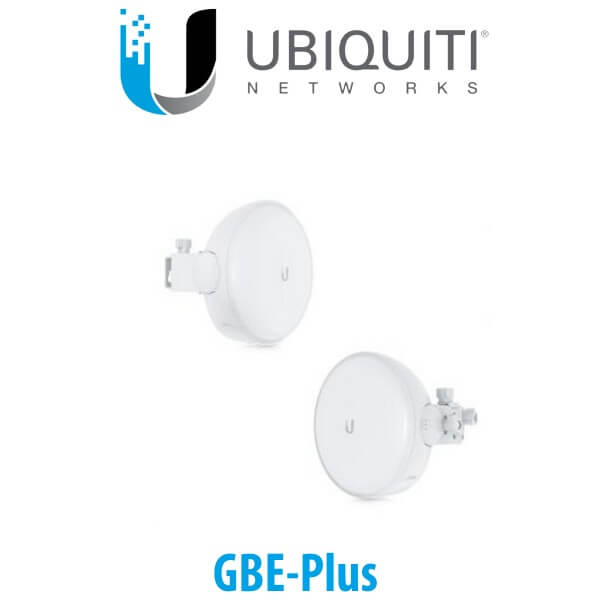

Gigabeat Plus is an outdoor very small 60GHz radio unit from Ubiquiti Networks for Point-to-Point application with real 1.5 Gbps Full Duplex throughput, very low latency, support for 2160 MHz channel width and allows create a connection up to 1.5 km. The unit has one Gigabit LAN port for communication with support for passive PoE (22 to 26 V DC) and Bluetooth for Quick Setup using the UISP mobile application. The installation of the connection is physically very simple – the device weighs only 1 kg and the included holder allows fine-tuning in both directions, which is a big plus in this price level.

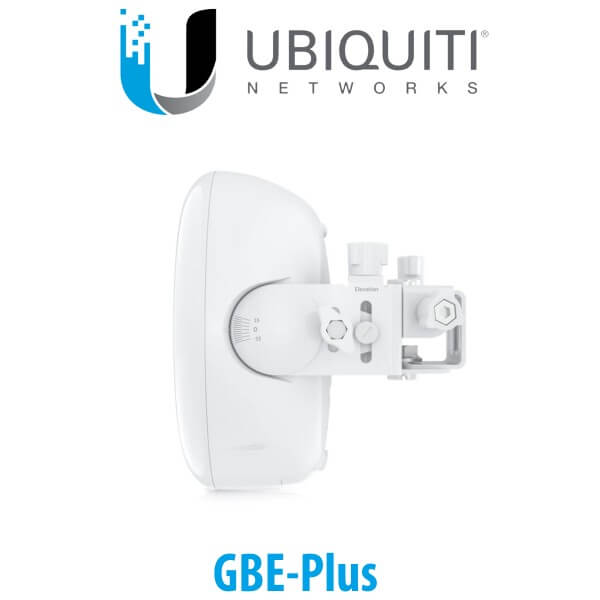

The airMAX GigaBeam Plus comes with a pole-mounting kit for flexible placement options and can be powered using the included 24 VDC PoE adapter or by connecting it to a compliant network switch. Made from UV-resistant polycarbonate and stainless steel, this radio can be mounted onto a wall or a pole using the included kit. It is built with 24kV ESD/EMP protection and can withstand temperatures between -40 and 140°F in addition to wind speeds of up to 125 mph. Quickly configure, monitor, and manage the airMAX GigaBeam Plus using the Ubiquiti UISP via Bluetooth or online portal.

GBE Plus Important features

  • Frequency band: 60 GHz
  • Antenna gain 35 dBi
  • Supported bandwidth: 2160 MHz
  • Supported frequencies: 58 320, 60 480, 62 640, 64 800 MHz (depending on country limits)
  • AP and Station operating modes, for PtP connections only
  • Low latency 1.5+ Gbps Full Duplex throughput
  • Web-based setup or Bluetooth Quick Setup using the UISP app

GBE Plus – Technical Specifications

Wireless features

Channel bandwidth [MHz]:2160
Transmission speed – 60GHz [Mb/s]:1500, Full Duplex
Output power 60GHz [dBm]:17
Security:WPA2 AES
Elevation beam width (-6dB) [°]:3
Azimuth beam width (-6dB) [°]:3
Antenna gain [dBi]:35

Connectors and Interfaces

LAN speed:(1) 10/100/1000Mbps
Other features: Bluetooth

Power

Power over Ethernet:22 .. 26V DC
Power type: PoE
Max. power consumption [W]:11

Physical characteristics

Radom: Yes
Operating temperature [°C]:-40 up to 60
Weight [g]:1000
Width [mm]:155
Height [mm]:155
Depth [mm]:137

Software

Operating system: airOS

Package Contents

  • Device with bracket
  • Gigabit PoE adapter 24 V/0.5 A
  • Power cord
  • Metal cable tie
