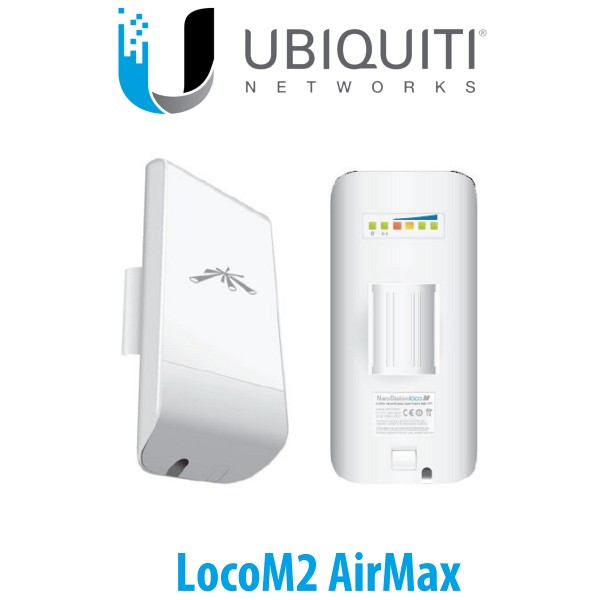

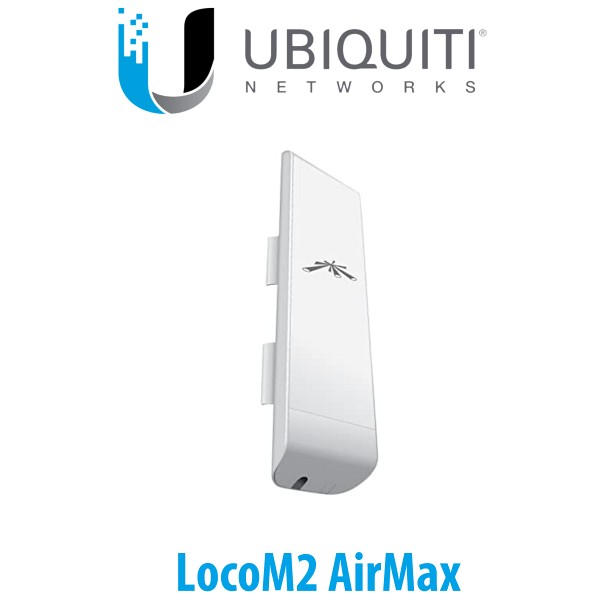

Ubiquiti LocoM2 AirMax Outdoor NanoStation Jeddah
The Ubiquiti LocoM2 NanoStation Jeddah is an affordable and highly reliable solution that delivers excellent performance to its users. It boasts of a long transmission range of up to 10km, 25+Mb/s of throughput performance, as well as an intuitive AirOS by Ubiquiti. It is also equipped with a broadband wireless CPE technology which delivers a fast performance.
Ubiquiti LocoM2 AirMax Outdoor NanoStation Jeddah Features
- Compact CPE Design
- Featuring a panel antenna and dual-polarity performance, the Ubiquiti LocoM2 Outdoor NanoStation Jeddah is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
- Plug and Play Installation
- The Ubiquiti LocoM2 NanoStation requires no tools for assembly; only a single wrench is required for pole-mounting.
- Dual Ethernet Connectivity
- With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
- Versatile Application Use
- The Ubiquiti LocoM2 Outdoor NanoStation Jeddah can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.
- Powerful airOS® Features
- Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
- Advanced Software Technology
- Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
- Window/Wall-Mounting Kit
- Use the NanoStation® Mount to quickly mount the Ubiquiti LocoM2 Outdoor NanoStation Jeddah on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
- Wall/Pole Mounting Kit
- The Universal Arm Bracket is designed for convenient wall or pole mounting of the Ubiquiti LocoM2 NanoStation Jeddah. 90° tilt adjustment allows for easy positioning.
Ubiquiti Networks LOCOM2 Specs
Wireless
| Wireless Frequency Bands | 2.4 GHz |
| Sensitivity | -72 to -95 dBm |
| Antenna Gain | 8 dBi |
| Transmit Power | 15 to 20 dBm |
Interface
| Ports | 1 x 10/100 Mb/s Ethernet (RJ45) |
| Throughput | 150 Mb/s Total |
Hardware
| RAM | 16 MB |
| Storage Capacity | 4 MB |
| Processor | 180 MHz MIPS 4KC |
Electrical
| DC Input Power | VDC at 0.5 A |
Environmental
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 5 to 95% |
General
| Certifications | RoHS, as per Manufacturer |
| Dimensions | 6.4 x 3.1 x 1.2″ / 16.3 x 8 x 3.1 cm |
| Weight | 0.4 lb / 0.2 kg |
Packaging Info
| Package Weight | 1.07 lb |
| Box Dimensions (LxWxH) | 8.55 x 3.8 x 3.2″ |
