Ubiquiti PBE-M2-400 Riyadh

The Ubiquiti PBE-M2-400 Riyadh features a compact and innovative mechanical design which is primed to achieve the focal point of any room. It not only supports up to 150+ Mb/s real TCP/IP throughput, but can also direct RF energy in a tighter beamwidth.

Ask for Quote & Get Low Price

Description

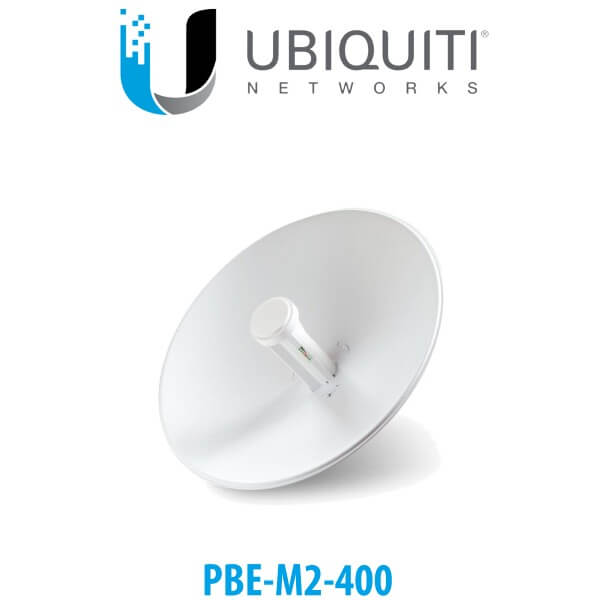

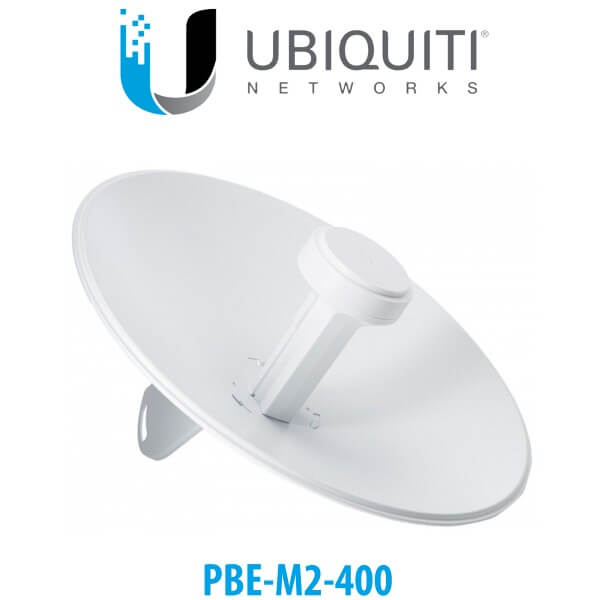

Ubiquiti PBE-M2-400 PowerBeam airMAX Bridge Jeddah

The Ubiquiti PBE-M2-400 Jeddah has an innovative mechanical design. This PowerBeam supports up to 150+ Mb/s real TCP/IP throughput. It directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is important in an area that is crowded with other RF signals of the same or similar frequency.

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing increased performance from its fast processor the PowerBeam is versatile and cost-effective to deploy.

airMAX Technology

Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots, scheduled by an intelligent AP controller. Slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS: Priority is given to voice/video for seamless streaming.
Scalability: High capacity and scalability.
Long Distance: Capable of high-speed, carrier-class links.

PBE-M2-400 PowerBeam airMAX Bridge Features:

Software Features

  • airOS
    • airOS is a versatile Ubiquiti firmware technology which is embedded in the Ubiquiti PBE-M2-400 Jeddah. It is an intuitive technology and requires no training to operate. Behind the user interface is a powerful firmware architecture, which enables high-performance, outdoor multi-point networking. PowerBeam uses airOS 5, which provides additional advantages, including airMAX protocol support, automatic channel selection, dynamic configuration changes, instant input validation, use of HTML5 technology, and optimization for mobile devices.
  • airView
    • Integrated airView provides advanced spectrum analyzer functionality such as waterfall, waveform. Real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference. Waterfall aggregates energy over time for each frequency. Waveform aggregates energy collected. The real-time feature shows energy in real-time as a function of frequency. Recording automates airView to record and report results.
  • airControl
    • airControl is a powerful and intuitive, web-based server network management application in the Ubiquiti PBE-M2-400 Jeddah, which allows operators to centrally manage entire networks of Ubiquiti devices. It features network map, monitor device status, mass firmware upgrade, Web UI access, manage groups of devices, and task scheduling.

Hardware Features

  • Built-In Mechanical Tilt
    • The Ubiquiti PBE-M2-400 Jeddah comes with a mounting bracket which conveniently offers 20° of up-tilt and up to 20° of down-tilt.
  • Quick Assembly
    • The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the Ubiquiti PBE-M2-400 Jeddah on the pole.
  • Easy Removal
    • The antenna feed can be detached with the push of a button.
  • Fasteners
    • GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
  • Dish and Brackets

    • The Ubiquiti PBE-M2-400 Jeddah is made of galvanized steel, powder-coated for superior corrosion resistance. Redesigned pole bracket for the 19.7″ and 15.7″ dish and fender washers for the 11.8″ dish prevent paint from being removed from the metal brackets, for improved corrosion resistance.

PBE-M2-400 PowerBeam – General Specifications

Processor Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2, 8 MB flash
Networking Interface 1 x 10/100 Ethernet port
Power
Power Supply 24 V, 0.5 A PoE adapter
Power Method Passive PoE (pairs 4, 5+, 7, 8 return)
Maximum Power Consumption 6 W
Antenna
Gain 18 dBi
VSWR 1.5:1 (maximum)
Built-In Mechanical Downtilt +20° to -10°
Polarization Dual linear
Operating Frequency 2405 – 2475 MHz
Wind Loading 342.5 N @ 200 km/hour (77 lbf @ 125 mph)
Wind Survivability 200 km/hour (125 mph)
LED Indicator Specifications
LEDs 1 x Power
1 x LAN
4 x WLAN
Signal Strength LEDs Software-adjustable to correspond to custom RSSI levels
Channel Size Support
Channel Sizes 5/8/10/20/30/40 MHz
Tests
Salt Fog Test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 104°F (40°C)
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Environmental
Operating Temperature -40 to +158°F (-40 to +70°C)
Operating Humidity 5 to 95% (non-condensing)
Compliance and Approvals
Compliance RoHS
Wireless Approvals FCC, IC, CE
Other
Mounting Pole-mount kit
ESD/EMP Protection Air: ± 24 kV
Contact: ± 24 kV
Physical Characteristics
Enclosure Outdoor UV stabilized plastic
Dimensions 16.5 x 16.5 x 11.4″ (42.0 x 42.0 x 28.9 cm)
Weight 3.96 lb (1.80 kg)
Packaging Info
Package Weight 35 lb
Box Dimensions (LxWxH) 26 x 21 x 14″
